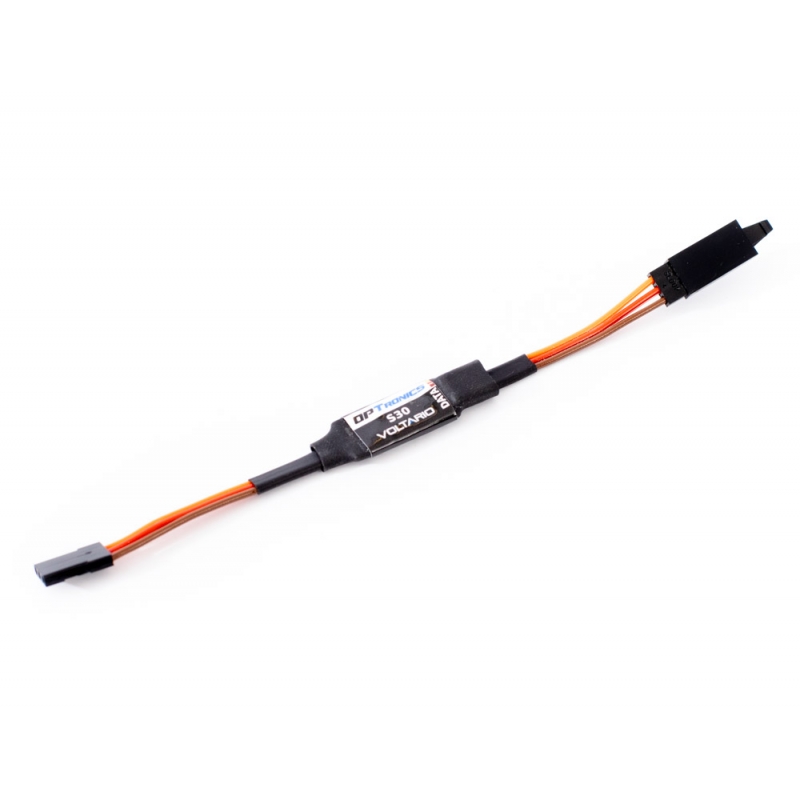

OPTronics - Voltario S30 View larger

OPTronics - Voltario S30 - Servo telemetry

OPT-VS30

New product

Voltario S30 is designed for monitoring power consumption of a single servo. It offers additional possibility to set the overcurrent protection shutdown.

More details

By buying this product you can collect up to 4 loyalty points.


In stock

41,58 €

Price excluding taxes : 41,58 €
VAT : 0,00 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

Voltario S30 is designed for monitoring power consumption of a single servo. It offers additional possibility to set the overcurrent protection shutdown.

  • Duplex EX, Multiplex MSB and Graupner Hott telemetry support (current, voltage, capacity).
  • Optional high current shutdown with regeneration.



Voltario T30

Voltario S30

Dimensions

25x12x5mm

25x12x5mm

Weight incl. cables

9g

4g

Cables

0.5mm2(20AWG)

0.25mm2 (23AWG)

Continuous current

10A

Peak current (2s)

30A

Standby current

80µA (touch button active)

Operating current

20mA

Operating temperature

-20 – 85°C

Supply Voltage

4 – 12V

Telemetry

Duplex EX, Multiplex MSB, Graupner Hott, Futaba S.Bus2

Touch switch support

Yes

No

Overcurrent protection

No

Yes

Selectable touch / mechanical switch/ RC switch

Yes

No

Status LED

Yes (touch button)

No
