Jeti Duplex Mezon PRO Opto 85 View larger

Jeti Mezon Pro Opto 85

JMP-085-O

New product

In stock

174,17 €

Price excluding taxes : 174,17 €
VAT : 0,00 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

Files for download

Manuals - MEZON PRO Opto

MEZON PRO.BIN - Configuration file for DC/DS transmitters (copy to Devices folder)

MEZON PRO Quick Guide - Quick guide [CZ/DE/EN/FR]

Powerful MEZON PRO controllers can be used in a wide variety of applications. Full JETI Duplex EX telemetry and programmability via the Device Explorer of JETI Duplex DS/DC transmitters. Forward/reverse motor operation is also possible.

In addition, the throttle channel can optionally be connected to the receiver "EX Bus" port. A separate output pin for a throttle channel is therefore not necessary at the receiver, telemetry and control signals are transferred in both ways via just a single cable.

Properties

  • Compact size
  • Setting via the Device Explorer of the JETI DC / DS transmitter
  • Real-time telemetry via JETI Duplex EX Bus (perfect for JETI DC / DS transmitters)
  • Telemetry data: battery voltage, battery current + BEC current, used battery capacity, RPM, PWM, controller temperature
  • Telemetry data reset by any transmitter switch
  • Activation of the throttle channel from the EX Bus is possible; the receiver then does not have to offer its own slot for the throttle channel.
  • Programmable with JETBOX
  • Operating modes: Model aircraft, forward / reverse operation
  • Proportional brake with a definable braking point at the throttle stick
  • F3A brake conveniently adjustable via the Device Explorer
  • Heat sink for long engine run times
  • High efficiency
  • Firmware upgrade possible
  • Wide range of adjustable parameters

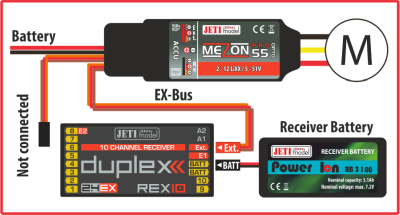

Recommended connection of the MEZON PRO controller (EX Bus):

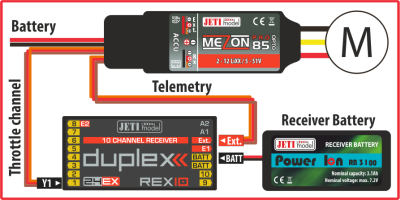

Recommended connection of the MEZON PRO controller (standard):


Weight [g]70
Dimensions [mm]26 x 23 x 83
Sustained current [A]85
TelemetryYes
Operational temperature [°C]-10 ... 85
Supply Voltage [V]6 ... 51
Batteries LiXX2 ... 12
Resistance in conducting state [mΩ]2 x .475
Cable crossection (input/output) [mm²]4.0 / 2.5
