OPTronics - Magnetschalter 15A (MPSW15)
OPT-MPSW15
Neuer Artikel

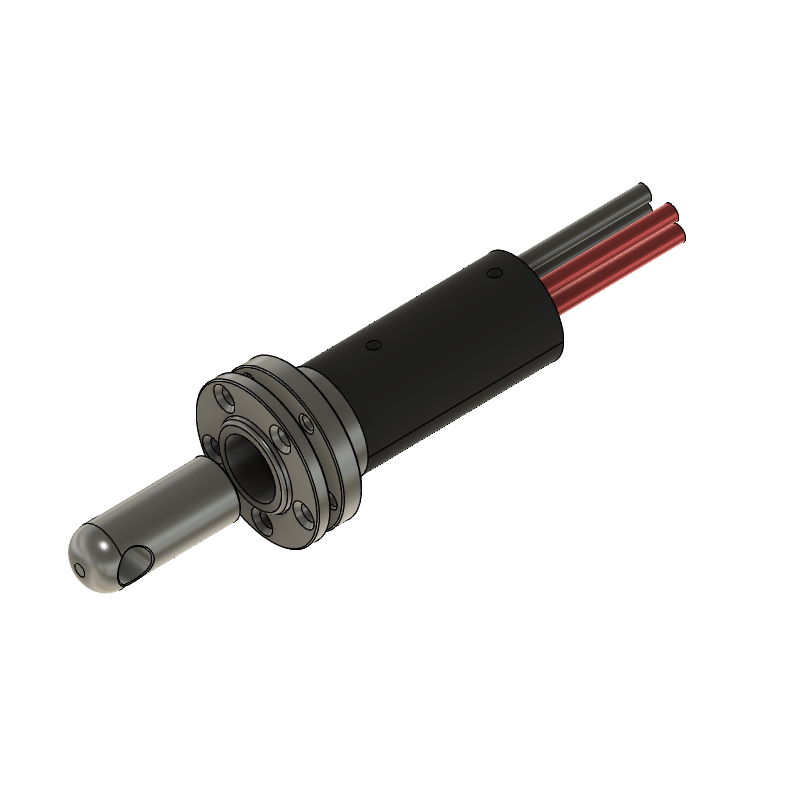

The MPSW15 is a high-performance digital safety switch designed in the style of a classic "REMOVE BEFORE FLIGHT"mechanism. It offers reliable and clearly visible control for critical systems, combining mechanical simplicity with modern digital integration.
- Eigene Bewertung verfassen
Sammeln Sie mit dem Kauf dieses Artikels bis zu 4 Treuepunkte.
The MPSW15 is a high-performance digital safety switch designed in the style of a classic "REMOVE BEFORE FLIGHT"mechanism. It offers reliable and clearly visible control for critical systems, combining mechanical simplicity with modern digital integration.

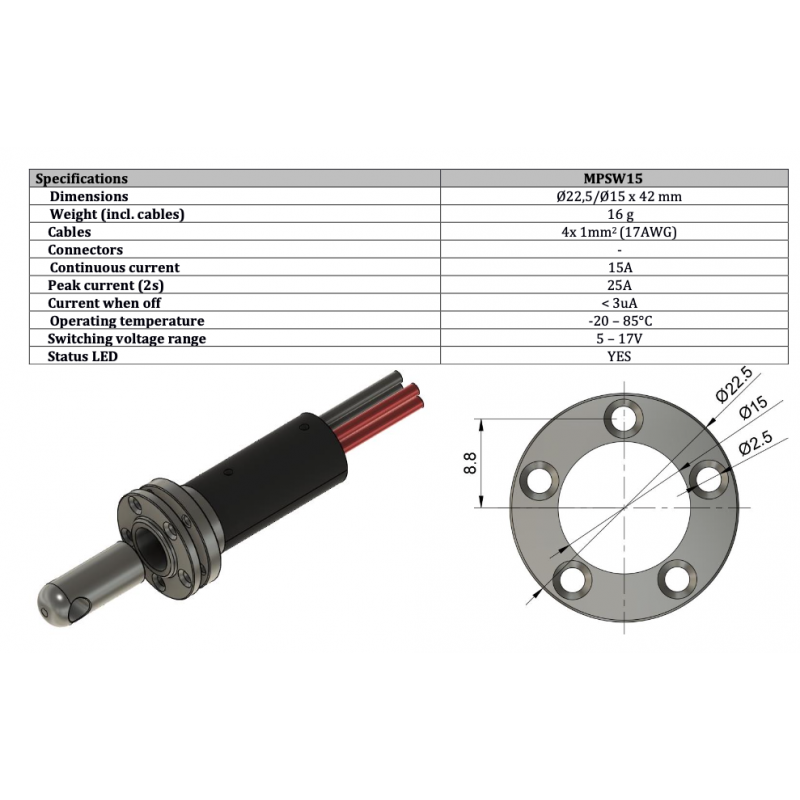

| Weight [g] | 16 |
| Dimensions [mm] | Ø22,5 / Ø15 x 42 mm |
| Operational temperature [°C] | -20 – 85°C |
| Supply Voltage [V] | 5 – 17 |
It operates using magnetic activation – inserting the supplied magnetic activation pin into the opening disconnects the power (opens the circuit). Removing the pin switches the device on and activates the connected circuit. The powered-on state is indicated by illuminated LED indicators.
This system offers a safe and reliable solution for switching receivers, ignition systems, and other onboard electronics without the need for mechanical contacts.
The switch provides reliable and secure control via a magnet, supports various types of loads including inductive, and—being contactless—has no wear due to switching cycles or current flow.
