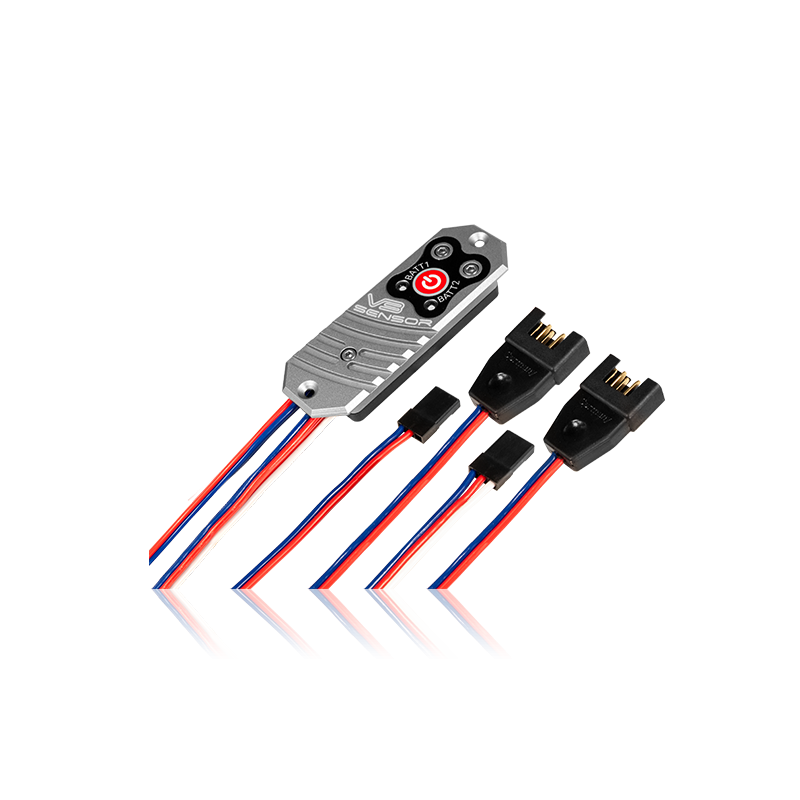

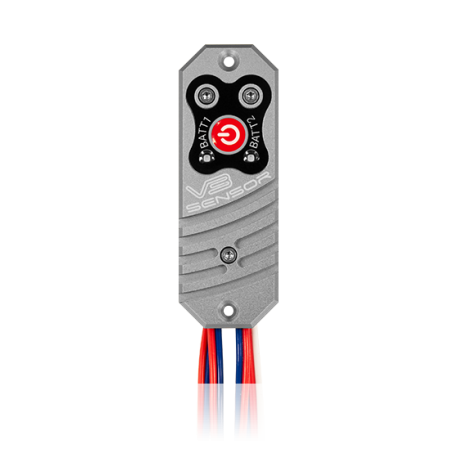

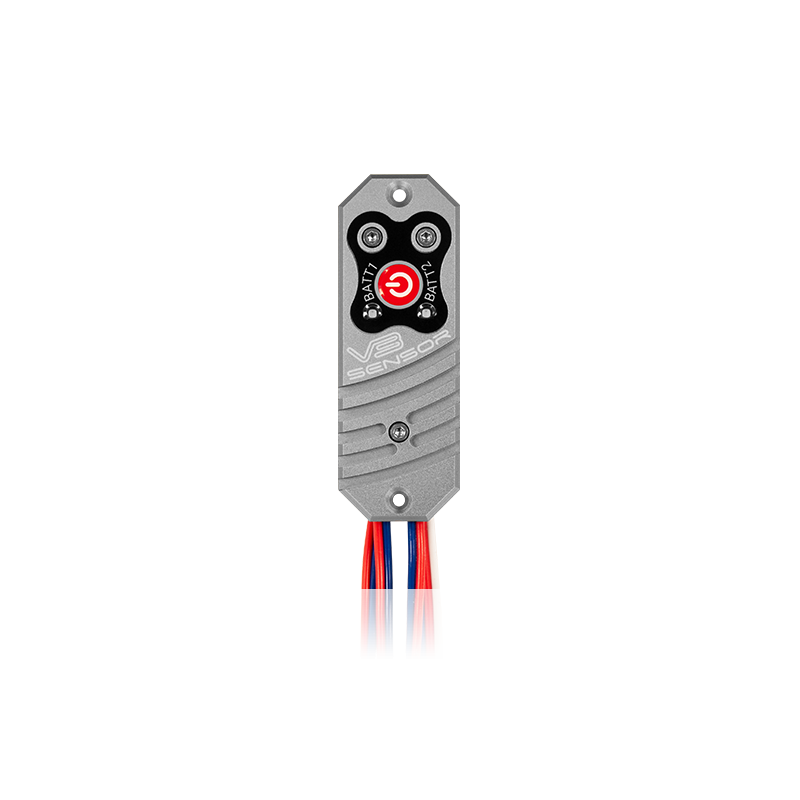

> >PowerBox Sensor V3 MPX/JR
PowerBox Sensor V3 MPX/JR Vergrößern

PowerBox Sensor V3 MPX/JR

6332

Neuer Artikel

The PowerBox Sensor V3 is the third generation of the PowerBox Sensor, which is well-known throughout the world.

Mehr Infos

Sammeln Sie mit dem Kauf dieses Artikels bis zu 10 Treuepunkte.


Auf Lager

109,00 €

Preis (o. MwSt.)90,83 €
MwSt.18,17 €

Lieferservice

Logo de service de livraison

Zahlungslösungen

Logo de solutions de paiement

The PowerBox Sensor V3 is the third generation of the PowerBox Sensor, which is well-known throughout the world.

Features

  • High-performance battery backer
  • Ultra-light unit, compact format
  • Double regulated output voltage
  • Redundant switch and regulator circuitry
  • User-selectable output voltage: 6.0 V or 7.8 V
  • Separate RGB LED voltage indicators for each battery
  • Telemetry support for CORE systems
  • Supports 4 different battery types: 2s LiPo, 2s LiIon, 2s LiFePo and 5s NiMH
  • Regulator monitoring
  • Suppression of servo feedback currents

Technical Data

Operating voltage 4.0 V - 9.0 V
Power supply 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiMh
Current drain Power-on state 30 mA
Current drain Standby 10 µA
Maximum load current Peak 2x 10 A
Drop-out voltage 0.25 V
Output voltage 6.0 V/ 7.8 V regulated
Dimensions 65 x 26 x 11 mm
Weight 30 g
Temperature range -30 °C bis +105 °C
