The PBS-P16 is an ultra-precise pressure sensor for up to 16 Bar. It is designed to work with the PowerBox CORE, but is also suitable for use with other telemetry systems.

Mehr Infos

Sammeln Sie mit dem Kauf dieses Artikels bis zu 9 Treuepunkte.


Auf Lager

99,00 €

Preis (o. MwSt.)82,50 €
MwSt.16,50 €

Lieferservice

Logo de service de livraison

Zahlungslösungen

Logo de solutions de paiement

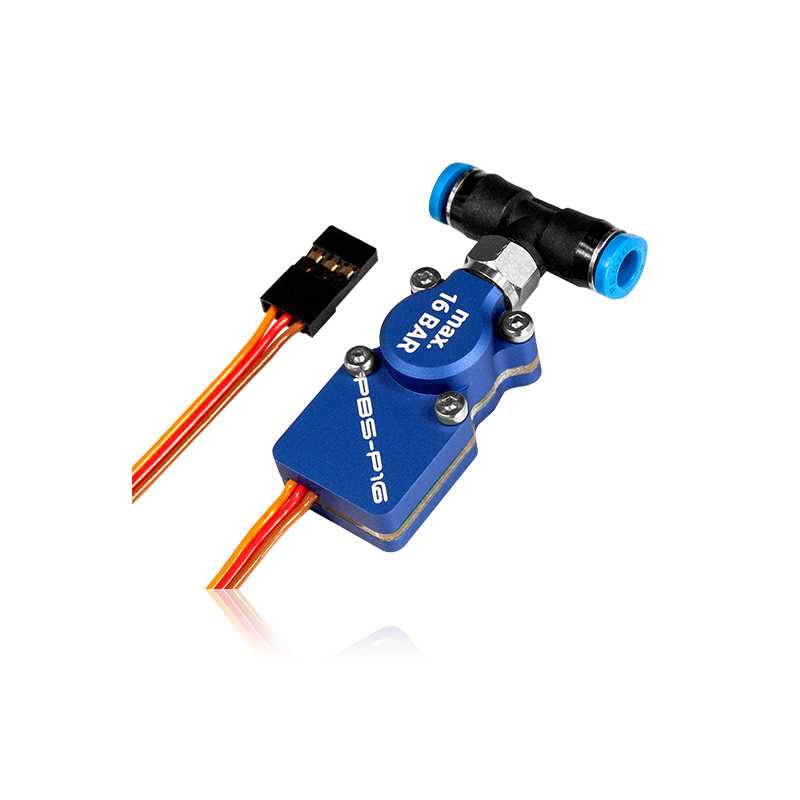

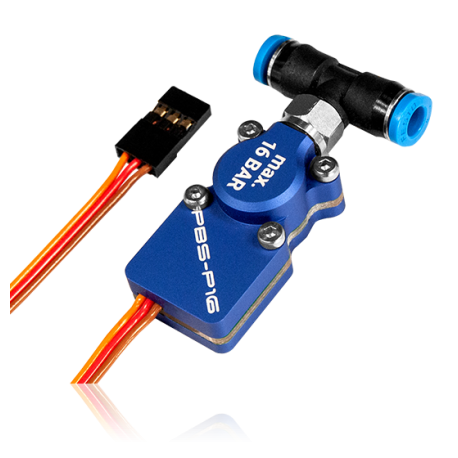

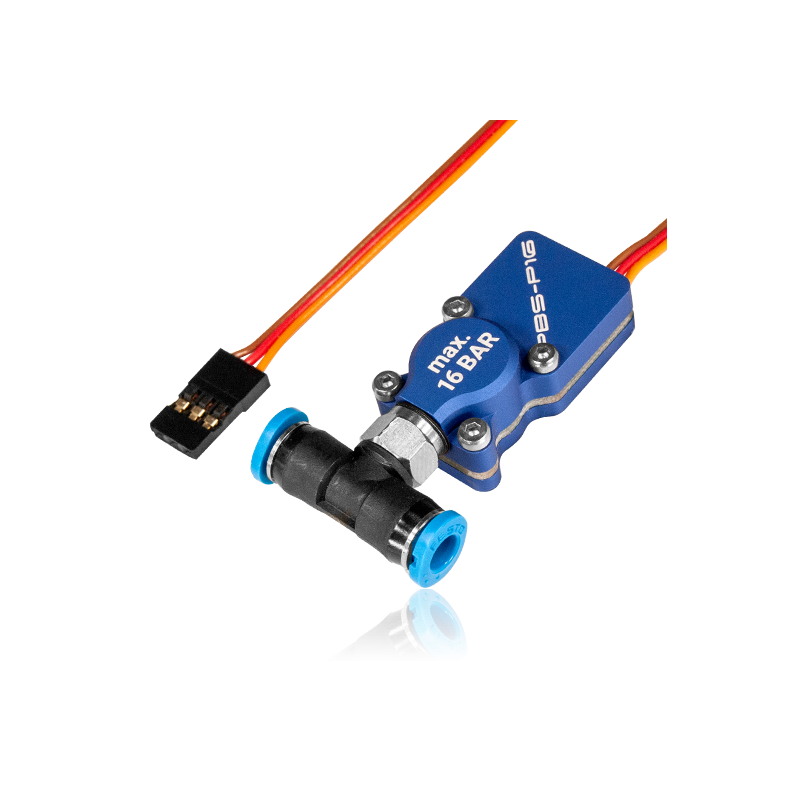

The robust aluminium case is machined from solid, and contains a small pressure chamber fitted with a digital Mems pressure sensor. The Festo T-connector is simply installed in the existing 4 mm pressure line to the pressure tank. Other pressure hose connections can easily be screwed into the PBS-P16's M5 threaded socket

The PBS-P16 is Plug'n'Play for the CORE telemetry system, but can also be switched for use with Jeti, Futaba*, M-Link and HoTT using the PowerBox Terminal program.

*Futaba will display the pressure value as a temperature as the system cannot show pressure values

Features

  • Pressure measurement up to 16 Bar (230 psi)
  • Compact design
  • Low weight
  • Supports the following telemetry systems: PowerBox CORE P²BUS, Jeti EX-Bus, Multiplex M-Link, Graupner HoTT, Futaba

Technical Data

Operating voltage 4.0V - 9.0V
Current drain Power-on state max. 20mA
Supported RC systems PowerBox, Jeti, Multiplex, Graupner, Futaba
Dimensions 42 x 17 x 12 mm
Weight 14g
Temperature range -30°C to +85°C
