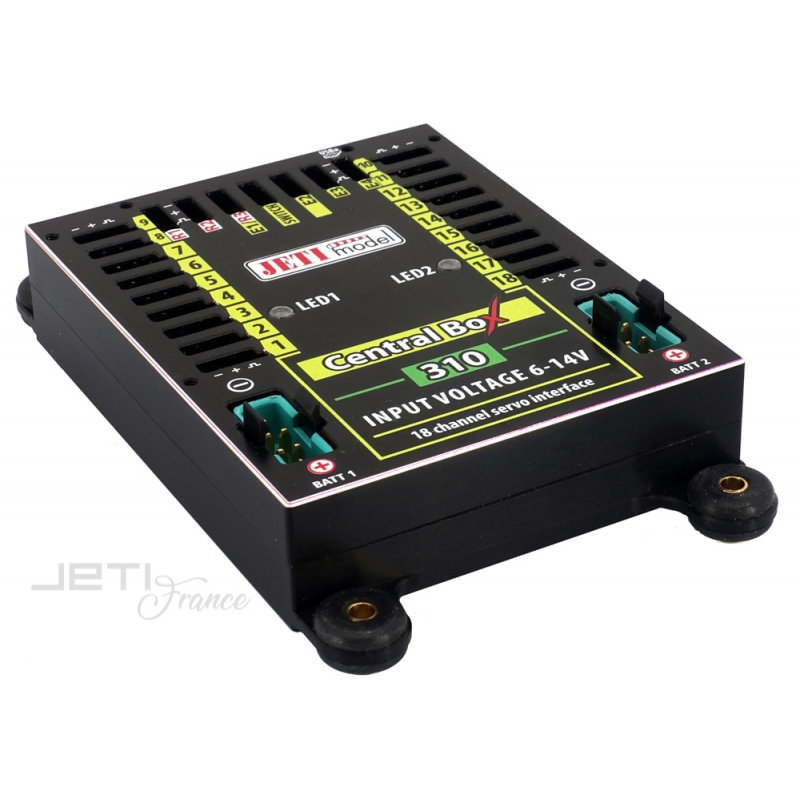

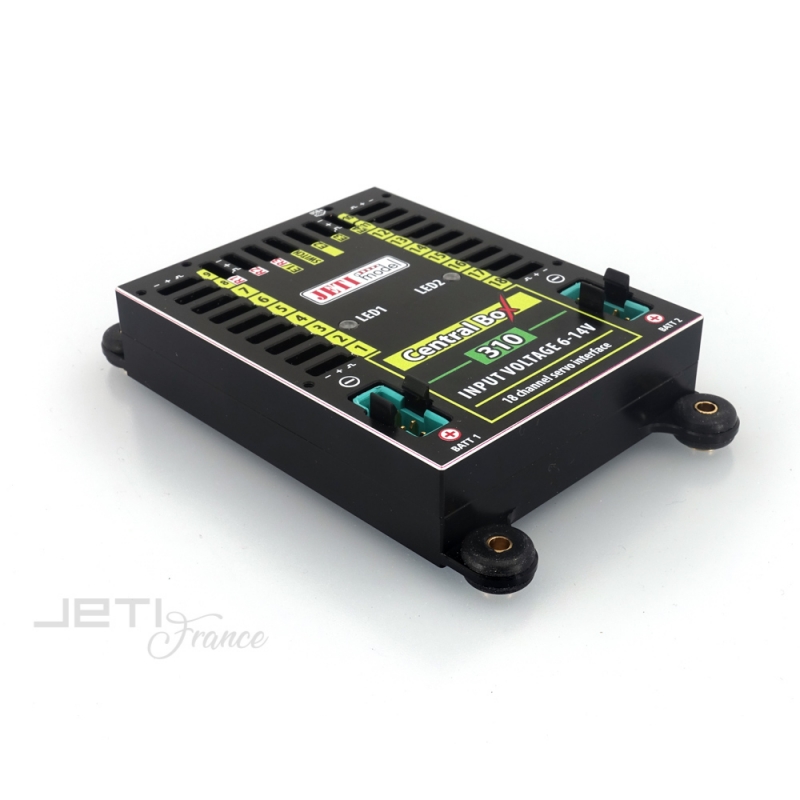

Jeti Central Box 310 + 2x Rsat2 + RCSwitch
J-CB-310-RS-RCSW
Neuer Artikel
The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety.
- Eigene Bewertung verfassen
Sammeln Sie mit dem Kauf dieses Artikels bis zu 49 Treuepunkte.
has full unreduced power from the internal BEC on the servo outputs.
• Adjustable powerful BEC for voltage stabilization
(connection of standard or HV servos)
• DITEX servo telemetry support
• Possibility to connect up to 3 receivers with serial communication
• built-in Expander function with the possibility of independent connection
of up to four JETI EX sensors
• Input for magnetic switch or RC switch
• Power supply batteries connected via MPX connector
• 100Hz mode of servo outputs (10ms period)
• EX telemetry support (measurement of voltage, current, capacity, temperature, etc.)
• Easy settings changes via DC/DS transmitter („Device explorer“)
• Robust metal construction with mounting holes
| Weight [g] | 135 |
|---|---|
| Dimensions [mm] | 66x107x21 |
| Sustained current [A] | 20 |
| Number of channels | 18 |
| Telemetry | Yes |
| Operational temperature [°C] | -20 up to 75 |
| Supply Voltage [V] | 4 up to 14 |
| Satellite receiver support | Yes |
| Batteries LiXX | 1 -3 |
| Voltage BEC [V] | 5 up to 8.4 |
| Idle current [µA] | 80 |
| Number of battery inputs | 2 |
| Voltage stabilization | Yes |
| Protected servo output | No |

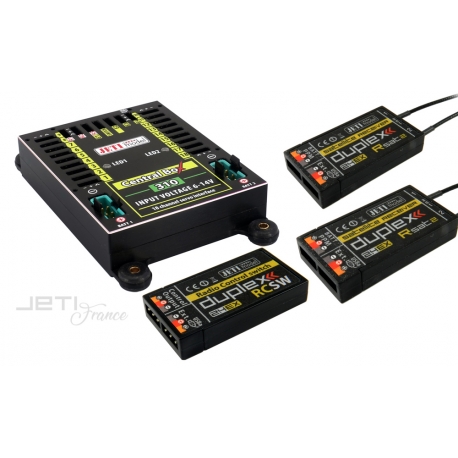

Included:
- Central Box 310
- RC Switch
- 2x Rsat2 2,4ghz
