Central Box 310 + 2x Rsat2 + RCSwitch

J-CB-310-RS-RCSW

New product

The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety.

More details

By buying this product you can collect up to 49 loyalty points.


In stock

499,90 €

Price excluding taxes : 416,58 €
VAT : 83,32 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

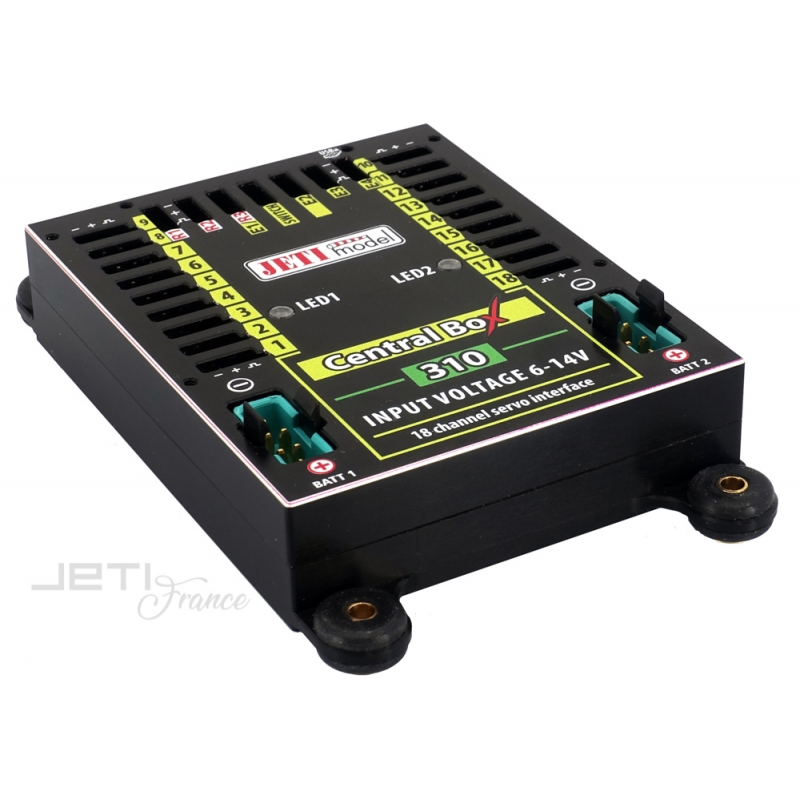

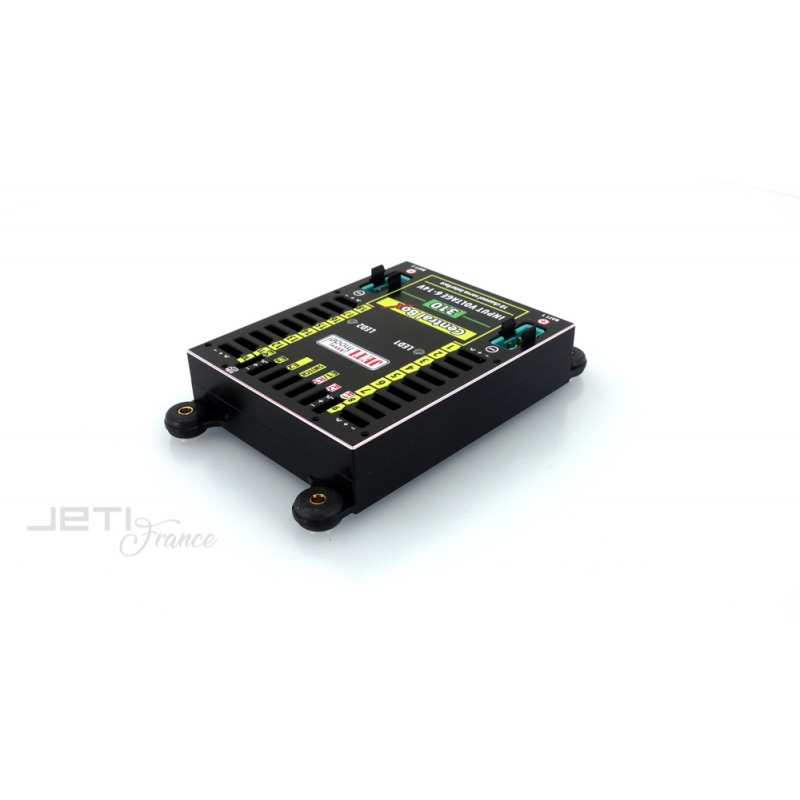

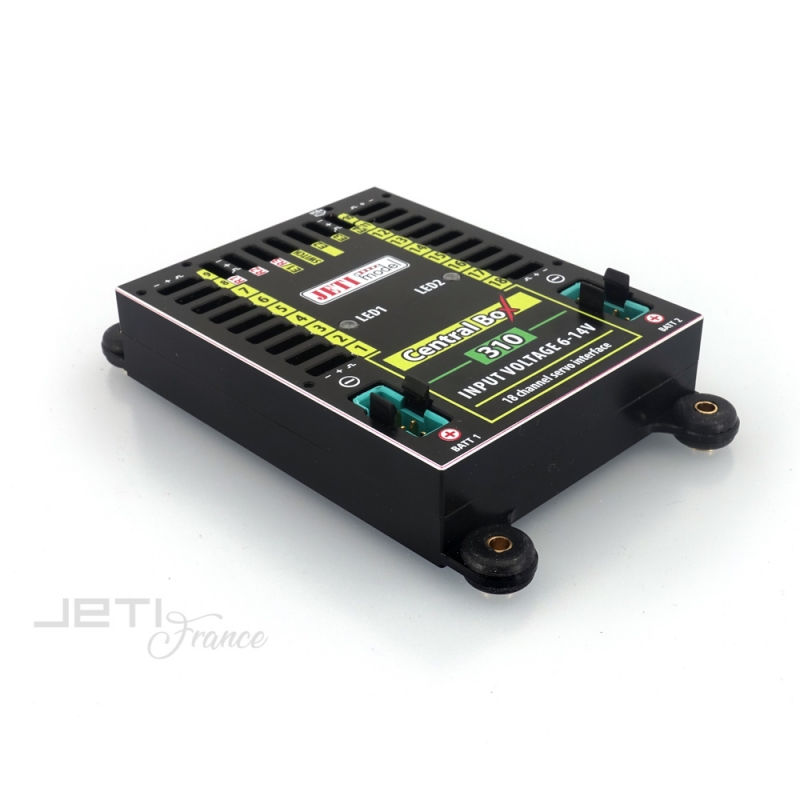

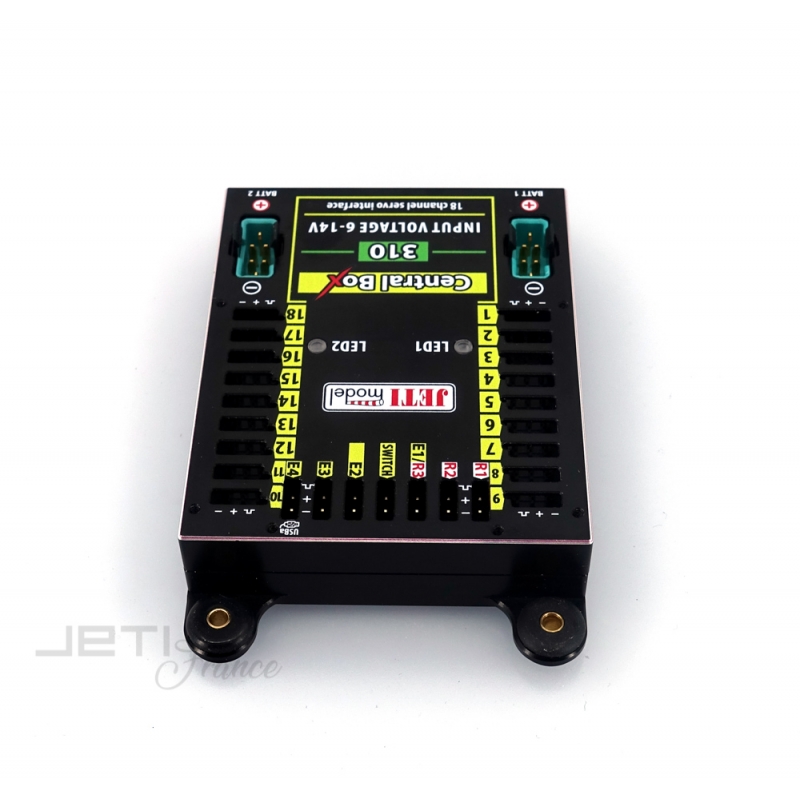

Central box 310

has full unreduced power from the internal BEC on the servo outputs.


• Adjustable powerful BEC for voltage stabilization
   (connection of standard or HV servos)
• DITEX servo telemetry support
• Possibility to connect up to 3 receivers with serial communication
• built-in Expander function with the possibility of independent connection
  of up to four JETI EX sensors
• Input for magnetic switch or RC switch
• Power supply batteries connected via MPX connector
• 100Hz mode of servo outputs (10ms period)
• EX telemetry support (measurement of voltage, current, capacity, temperature, etc.)
• Easy settings changes via DC/DS transmitter („Device explorer“)
• Robust metal construction with mounting holes

Weight [g] 135
Dimensions [mm] 66x107x21
Sustained current [A] 20
Number of channels 18
Telemetry Yes
Operational temperature [°C] -20 up to 75
Supply Voltage [V] 4 up to 14
Satellite receiver support Yes
Batteries LiXX 1 -3
Voltage BEC [V] 5 up to 8.4
Idle current [µA] 80
Number of battery inputs 2
Voltage stabilization Yes
Protected servo output No

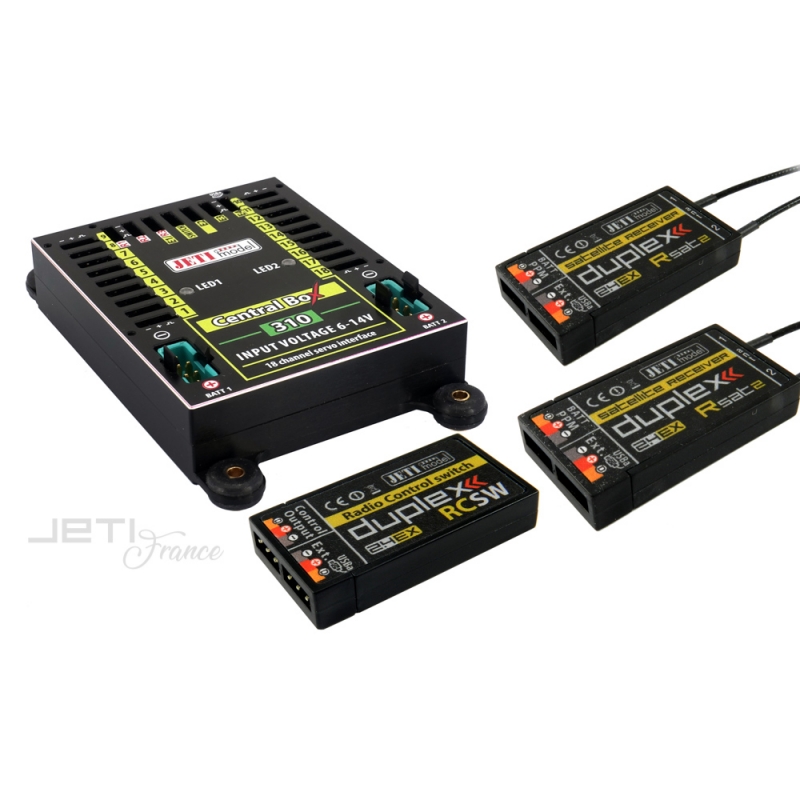

Included:
  • Central Box 310
  • RC Switch
  • 2x Rsat2 2,4ghz
