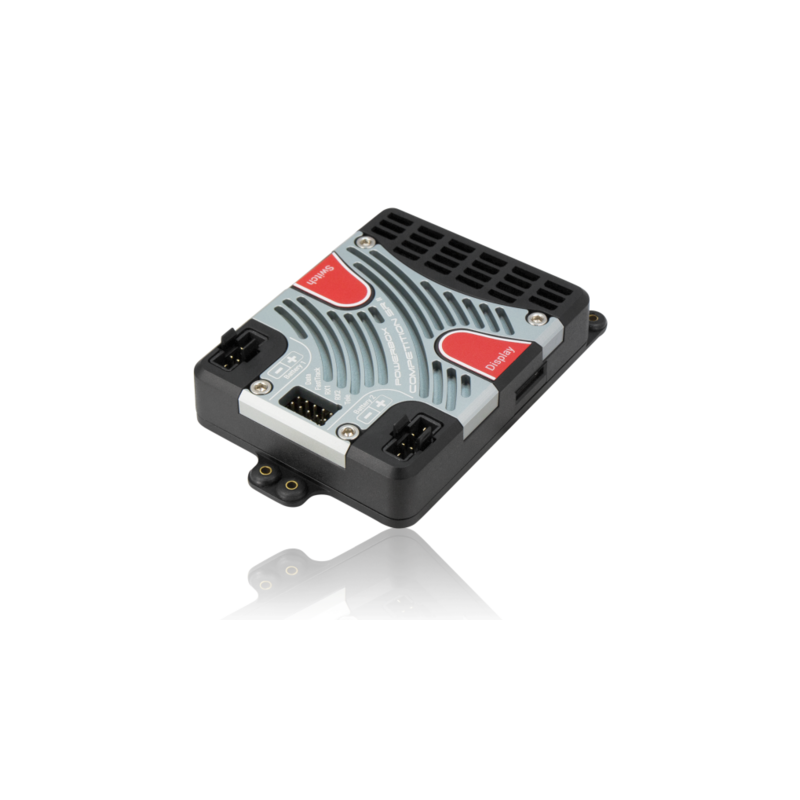

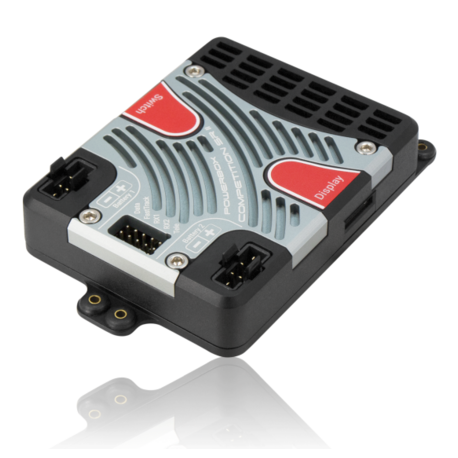

PowerBox Competition SR2 incl. SensorSwitch + TFT Screen
4450
Neuer Artikel
The PowerBox Competition SR2 offers outstanding functionality, and sets new standards in its class!
- Eigene Bewertung verfassen
Sammeln Sie mit dem Kauf dieses Artikels bis zu 42 Treuepunkte.
The PowerBox Competition SR2 offers outstanding functionality, and sets new standards in its class!
Features
- 22 channels
- High-performance battery backer with high continuous load capacity

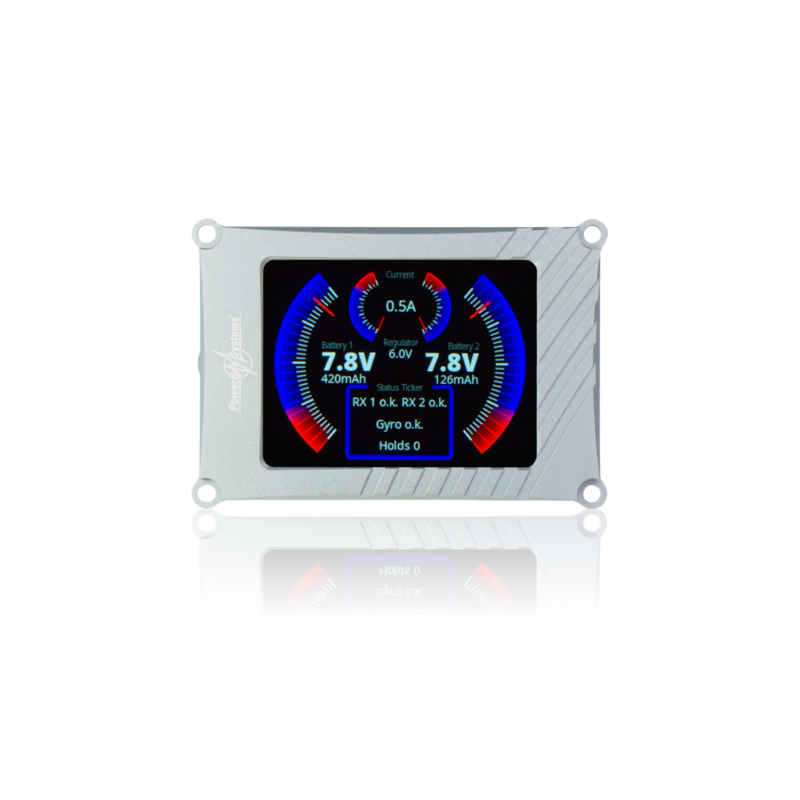

- 2.4” TFT screen, legible in sunlight
- Bi-lingual menu system
- Consistent duplication of all power electronics
- Redundant electronic switch
- Servo matching for all 22 outputs
- Auto matching function
- Two independent door sequencers with Setup Assistant
- The latest integrated iGyro technology, using the iGyroSAT as gyro sensor
- Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
- Individual gain control for all twelve gyro outputs
- Special regulatory algorithm for fixed-wing models
- System detects all transmitter mixers
- Four selectable output voltages: 6.0 V, 7.4 V, 7.8 V or unregulated
- Graphic menu diagrams ensure ultra-simple programming
- Fast basic setup procedure using the sophisticated Assistant
- Optional GPS III for speed-dependent gyro compensation
- Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link and Graupner HoTT
- Transmission of battery, receiver and GPS* data
- Virtually all features can be controlled from PowerBox and Jeti transmitters
- Selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
- Servo feedback current suppression
- Latest 32-bit micro-processor for precise, high-speed signal processing
- High-performance machined heat-sink for optimised heat diffusion
- Machined, anodised aluminium switch and screen case
- Compact dimensions
Technical Data
| Operating voltage | 4.0V - 9.0V |
| Power supply | 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH |
| Current drain Power-on state | 260mA |
| Current drain Standby | 30µA |
| Maximum load current | 2x40A (<30s) |
| Drop-out voltage | 0.3V |
| Output voltage | 6.0V, 7.4V, 7.8V, unregulated |
| Signal input | serial |
| Supported RC systems | PowerBox, Futaba, Jeti, Spektrum, M-Link and Hott |
| Receiver redundancy | SRS |
| Channels | 26 |
| Servo sockets | 22 |
| Programmable servo outputs | 22 |
| Servo signal resolution | 0,25µs |
| Signal frame rate | 10ms, 12ms, 14ms, 16ms, 18ms |
| Gyro sensor type | external iGyro SAT |
| Number of sensor axes | 12 |
| Screen | TFT 320x240 pixels |
| Integral door sequencer | yes |
| Supported telemetry systems | P²BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott |
| Dimensions | 107 x 69 x 19 mm |
| Weight | 115g |
| Weight Sensor Switch | 15g |
| Weight of LCD screen | 34g |
| Temperature range | -30°C to +105°C |
Set contents
- PowerBox Competition SR2
- TFT Display

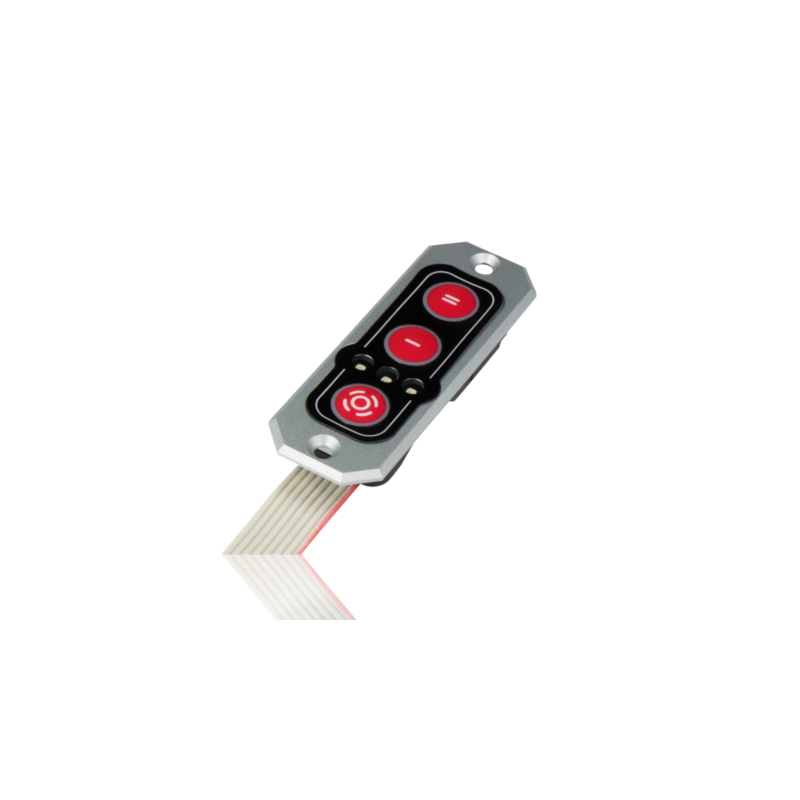

- SensorSwitch
- 2 patch-leads
- 4 rubber grommets and brass spacer sleeves, factory-fitted
- 8 retaining screws
- Operating instructions in german and english
