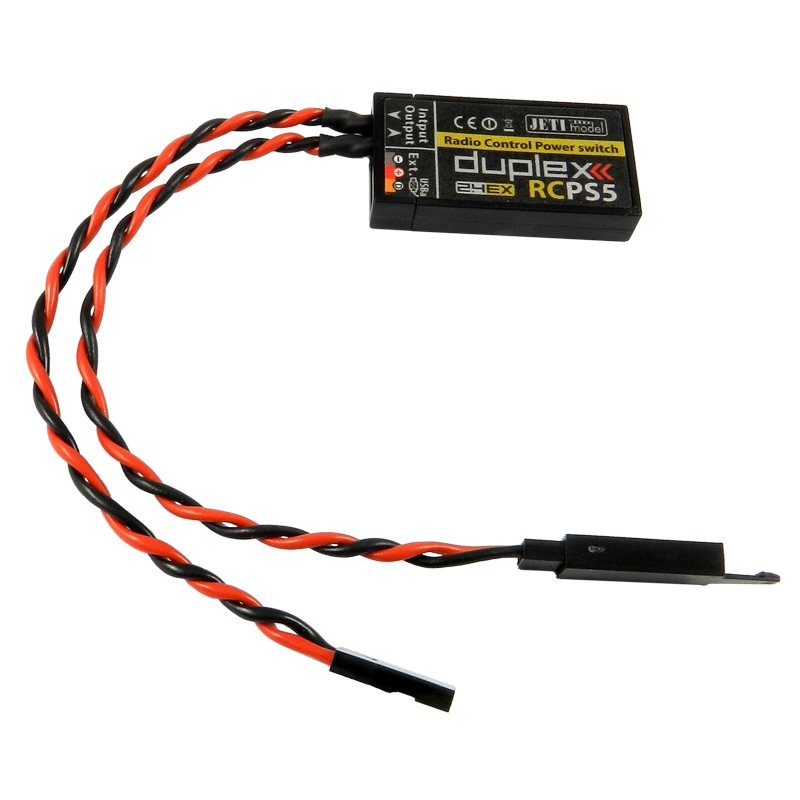

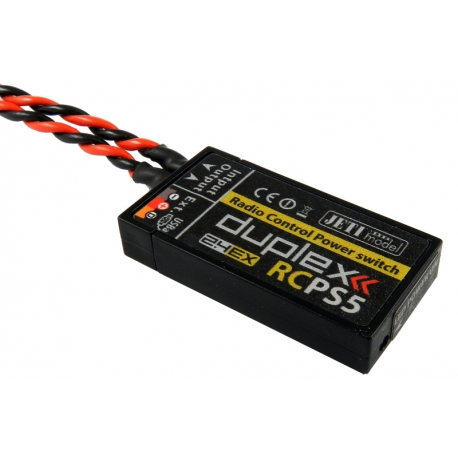

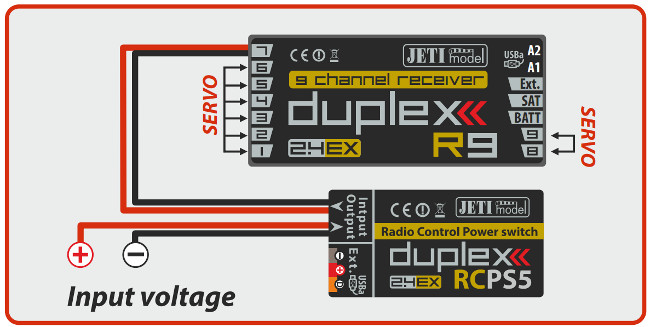

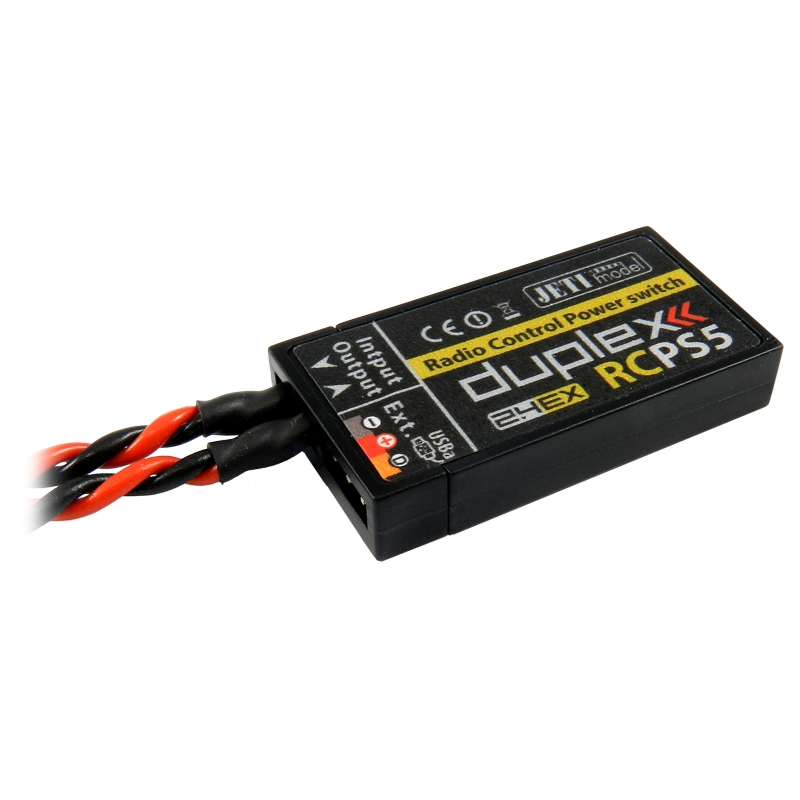

is a wireless switch equipped with a power circuitry that allows direct connection to receiver battery. RC Power Switch can be easily controlled using DC/DS transmitters and it can be simply used as a replacement of a standard mechanical switch.
Switching is indicated by a red LED that is visible through the opening on the side of the RC Switch.
Gewicht [g] | 5 *) |
Abmessungen [mm] | 38 x 7 x 20 |
Dauerstrom [A] | 5 |
Einsatztemperatur [°C] | -20 ... 85 |
Durchschnittsstrom [mA] | 20 |
Empfohlene Eingangsspannung [V] | 3,3 ... 24 |
Ruhestrom [µA] 80 | [µA] 80 |
