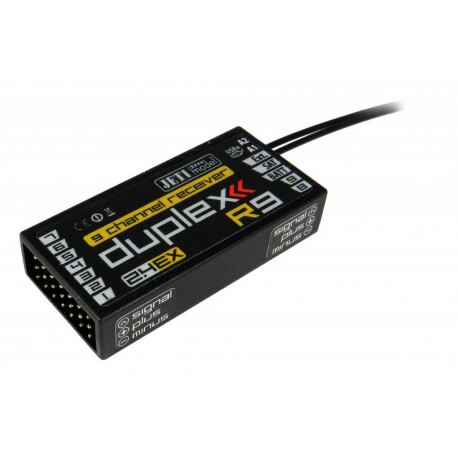

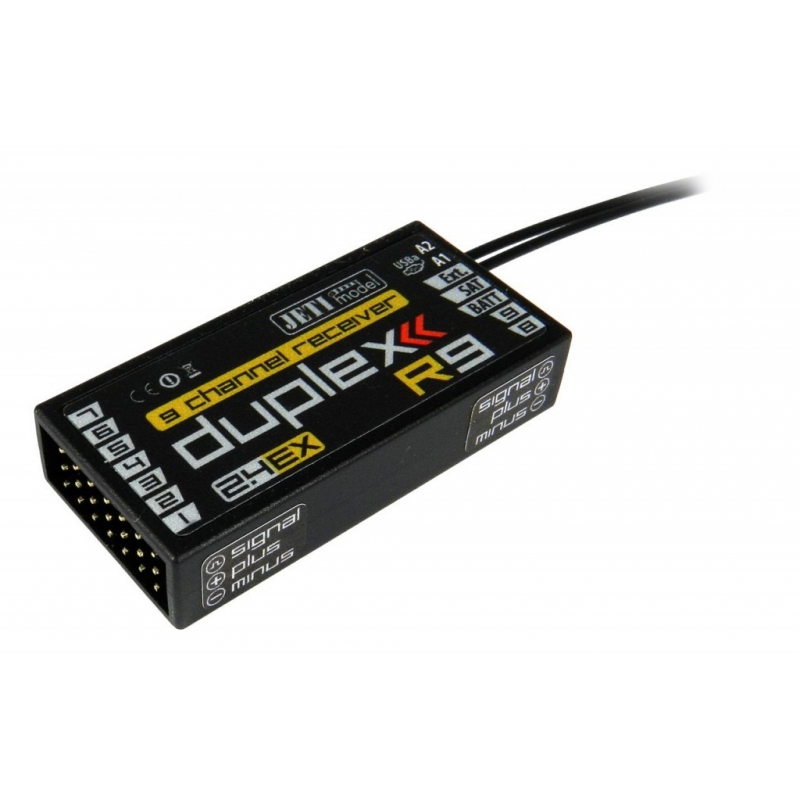

Jeti Duplex R9 EX
JDEX-R9
New product
Duplex R9 EX
9 channel full-range receiver compatible with JETI EX & EX Bus protocols. Supports telemetry functions. Power supply can be provided by any of the servo JR connectors.
Additional features:
- PPM input (Sat1)
| Weight [g] | 13 |
| Dimensions [mm] | 48 x 23 x 10 |
| Number of channels | 9 |
| Telemetry | Yes |
| Operational temperature [°C] | -10 ... 85 |
| Compatible protocols | DUPLEX 2.4GHz EX, EX Bus |
| Antenna Length [mm] | 2 x 200 |
| Supply Voltage [V] | 3,2 - 8,4 |
| Average Current [mA] | 30 |
| Satellite receiver support | Yes |
| Output Power [dBm] | 15 |
| Receiver Sensitivity [dBm] | -106 |
The DUPLEX EX line of receivers is intended for operation with DUPLEX Tx transmitter modules in the 2,4GHz band and are fully compatible with the previous version of the DUPLEX. Thanks to the fully digital and bidirectional communication between transmitter and receiver there arise completely new aspects in the model remote control branch. One of the most important advantages is the operation without crystal, moreover the low susceptibility towards interference, the high range up to the limit of visibility and the possibility to follow anytime the onboard state of the model and its functional parts.
An additional satellite receiver RSat2 complements the receivers R9, R10, R11, R12, R14 and R18. This receiver is a full DUPLEX system receiver offering the complete functional spectrum of the system. Instead of classical servo pulses the output of the RSat2 receiver offers a PPM signal only. This PPM signal is furtheron processed by the receivers R9, R10, R11, R12, R14, R18 or by compatible RC equipment which requires a PPM signal at the input.
DUPLEX System EX is fully compatible with the previous version of the DUPLEX.
Manuals - Duplex EX
JETI Duplex EX Receiver Manual V3.22 [EN, DE] - English & German user manual for the receivers version 3.22 (6/2014)
JETI Duplex EX Manual V3.0 CZ - Czech user manual for Tx modules and receivers (6/2011)
JETI Duplex EX Manual V3.0 EN+DE - English & German user manual for Tx modules and receivers (6/2011)
Rx + RSat Jetibox Schema V3.0 CZ - Jetibox screen schemes of the receivers and satellites
Rx + Rsat Jetibox Schema V3.0 EN+DE - Jetibox screen schemes of the receivers and satellites
Rx + RSat Jetibox Scheme V3.0 FR - Jetibox screen schemes of the receivers and satellites
Update - Receivers
Duplex REX V1.02 - Duplex REX receivers firmware update (4/2016)
RC Switch V 1.05 - RC Switch firmware update
Duplex EX - RSat2, R3L V3.25 - Standard Rx firmware update, 24 channels support (2/2016)
a) Duplex EX - Rx V3.24 - Standard - Standard Rx Firmware Update (6/2015)
b) Duplex EX - Rx V3.24 - UDI16 - Rx Firmware Update (6/2015) for multirotors, added UDI16 protocol
Duplex EX - Rx V3.06 - Rx Compatibility Firmware Update (10/2012)
Duplex EX - R3L Tx V3.06 - Duplex R3L in Tx mode. Option for a wireless buddy box
