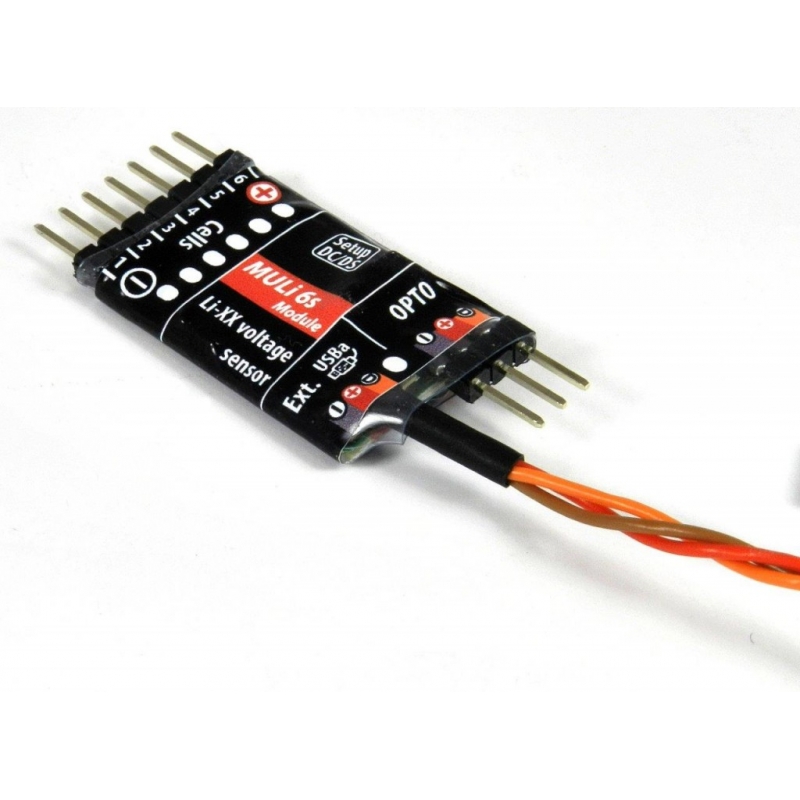

Jeti Duplex MULi 6S – Module View larger

Jeti Duplex MULi 6S – Module

JEX-MULI6S-M

New product

The MULi6s Module is a sensor designed to monitor the Li-XX battery voltage, which measures the voltage of each battery cell via the balance connector. It allows you to monitor the voltage of up to 6 Li-XX cells per module. The individual MULi6s modules can be serialized and can be connected to up to 5 modules.



More details

By buying this product you can collect up to 4 loyalty points.


In stock

40,75 €

Price excluding taxes : 40,75 €
VAT : 0,00 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

The MULi6s Module is a sensor designed to monitor the Li-XX battery voltage, which measures the voltage of each battery cell via the balance connector. It allows you to monitor the voltage of up to 6 Li-XX cells per module. The individual MULi6s modules can be serialized and can be connected to up to 5 modules.

You can check voltage of every single cell, store its history (maximum, minimum), total voltage of the whole battery, and the sensor can also give notice of exceeding selected parameters. Data from the sensor are transferred via DUPLEX system.


DUPLEX system uses 2,4GHz for communication that allows you to transfer data not only to the model, but also back from the model to the transmitter. Telemetric data are transferred real-time and the data can be viewed on the LCD of JETIBOX.
Weight [g] 6
Dimensions [mm] 36 x 20 x 5
Operational temperature [°C] -10 ... 85
Supply Voltage [V] 3,5 ... 8,4
Average Current [mA] 9
Range of measured voltage [V] 0 ... 4,4
