Jeti Duplex Mflow2 T800 View larger

Jeti Duplex Mflow2 T800

JEX-MF2T-800

New product

Currently out of stock

224,90 €

Price excluding taxes : 187,42 €
VAT : 37,48 €

Enter your email to be notified when the product is available again:

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

The MFlow2 Turbine 800 is a telemetry sensor that measures the flow of the pumped fuel and calculates its amount in the tank. The MFlow2-Turbine is a variant designed for the models powered by a jet engine, with consumption up to 800ml/min.

Main features:

  • The sensor is compatible with Duplex EX system.
  • EX telemetry values: actual flow and the amount of the fuel in the tank.
  • User adjustable parameters, such as tank capacity, depleted fuel alarm, etc.
  • Firmware updates.

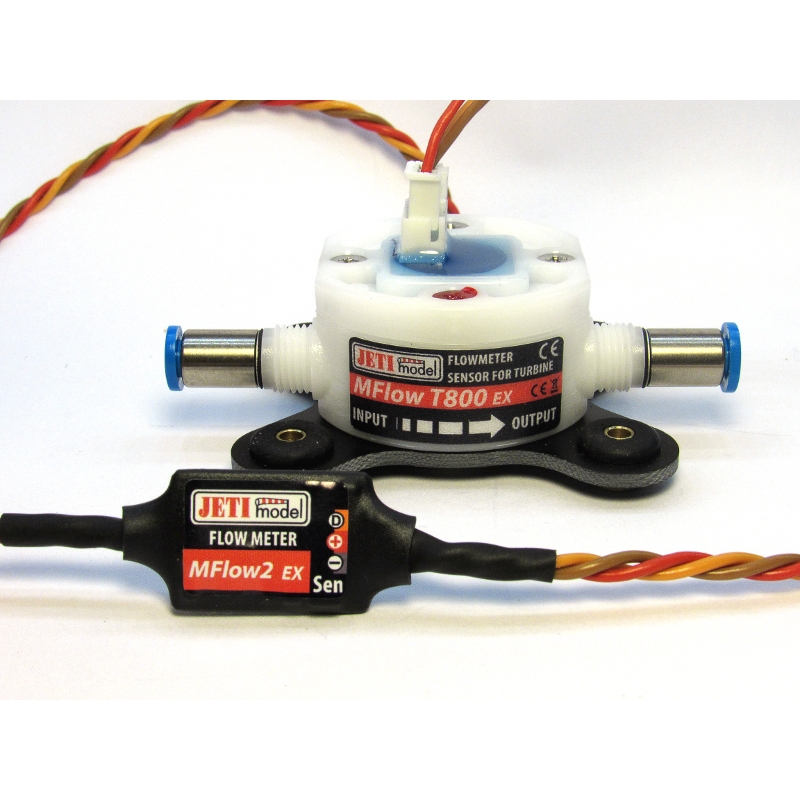

MFlow2 consists of the flow sensor and the base. The sensor is connected to the base via a cable with a lock connector. The other cable labeled as „Ext“ is used for the DUPLEX system or the JETIBOX. The flow sensor is fitted with these endings according to the type: MFlow2 T800: 2x FESTO for tubes with the external diameter of 4mm

Technical data

Measurement range [ml/min]: 20-800
Measurement accuracy [%]:  +/- 2
Tubing connection (Ø 4mm): 2 x FESTO
