Jeti Duplex Mflow2 G800 View larger

Jeti Duplex Mflow2 G800

JEX-MF2G-800

New product

Currently out of stock

166,58 €

Price excluding taxes : 166,58 €
VAT : 0,00 €

Enter your email to be notified when the product is available again:

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

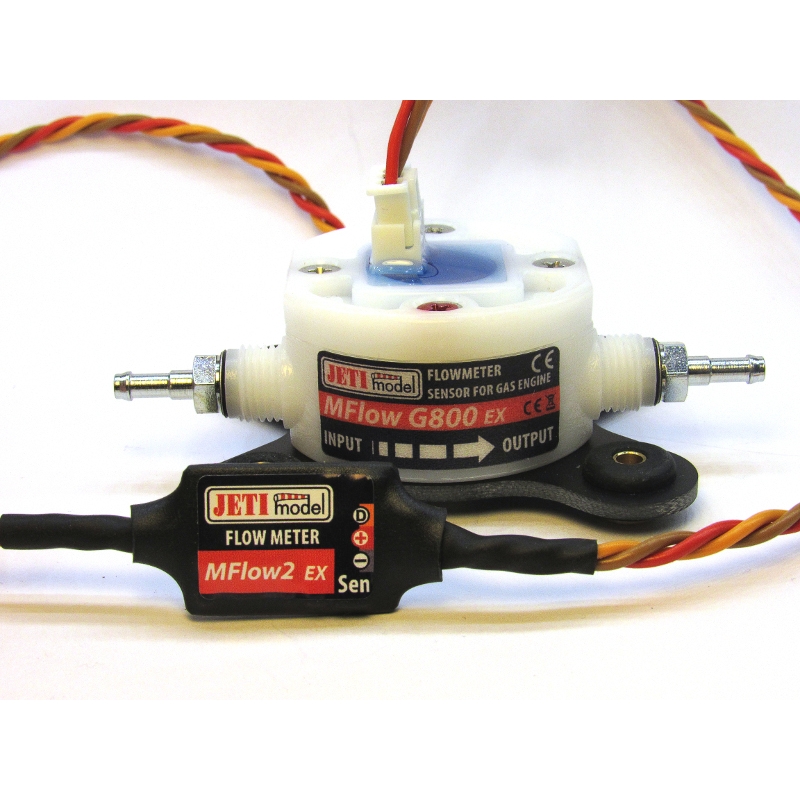

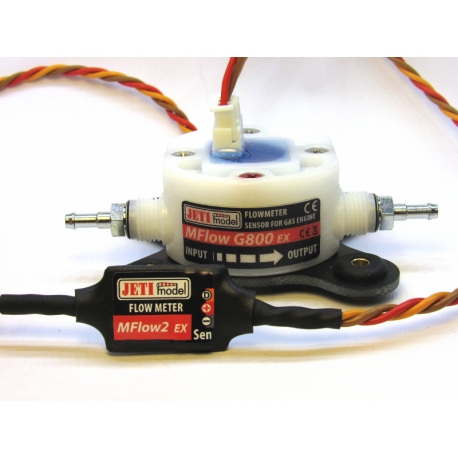

The MFlow2 Gas 800 is a telemetry sensor that measures the flow of the pumped fuel and calculates its amount in the tank. The MFlow2-Gasoline is a variant for the models powered by glow or gasoline motors.

Main features:

  • The sensor is compatible with Duplex EX system.
  • EX telemetry values: actual flow and the amount of the fuel in the tank.
  • User adjustable parameters, such as tank capacity, depleted fuel alarm, etc.
  • Firmware updates.

MFlow2 consists of the flow sensor and the base. The sensor is connected to the base via a cable with a lock connector. The other cable labeled as „Ext“ is used for the DUPLEX system or the JETIBOX. The flow sensor is fitted with these endings according to the type: MFlow2 G: 2x barbed fittings for tubes with the internal diameter of 2 mm a 2x barbed fittings for tubes with the internal diameter of 3 mm

Technical data:

Measurement range [ml/min]: 20-800
Measurement accuracy [%]: 2 (+/-)
Tubing connection: 2 x barbed fittings (for Ø2mm) & 2 x barbed fittings (for Ø3mm)
Weight [gr]: 40
Dimensions [mm]: 72x41x30
Operational temperature [°C]: -20...85
Supply voltage [V]: 5...8.4
Average current [mA]: 20
