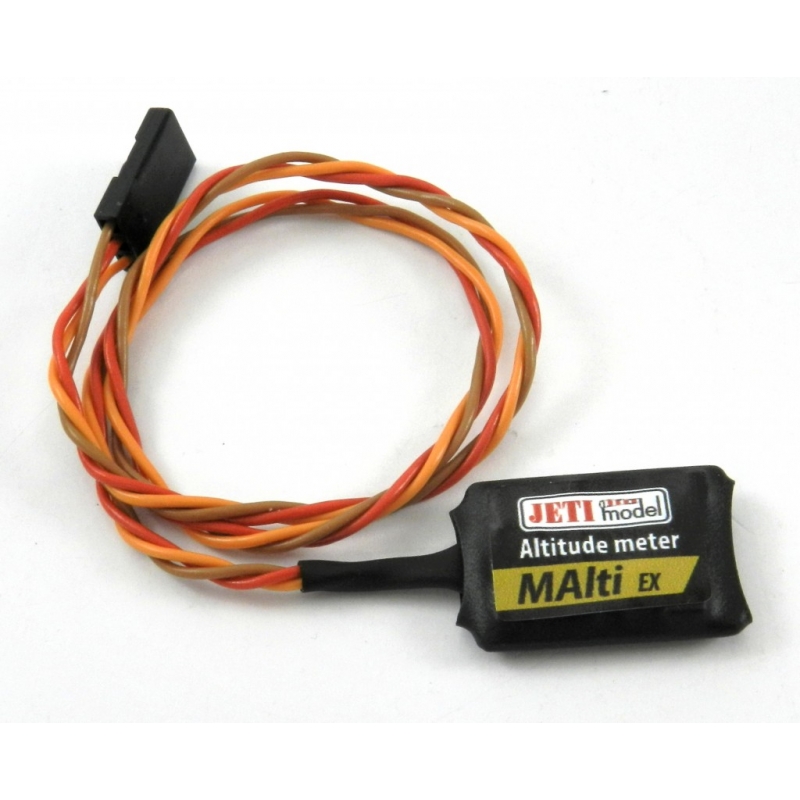

Jeti Duplex MAlti View larger

Jeti Duplex MAlti EX

JEX-MA-R2

New product

In stock

67,90 €

Price excluding taxes : 56,58 €
VAT : 11,32 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

MAlti EX is a system that measures atmospheric pressure and using the obtained data it calculates the altitude above sea level and relative altitude above the ground. The sensor also alerts you if any alarm setting is exceeded. The sensor data can also be transmitted via the Duplex system to the user.

Main features:

  • Measurement of altitude, pressure, and temperature.
  • Possible sound alarm signaling using a JETI Tx module (EU only) or JETIBOX profi.
  • The device is compatible with EX Bus protocol, i.e. it is possible to be configured comfortably via a special menu in DC/DS JETI model transmitters.
  • Firmware updates.

Technical data:

Resolution of measured height [m]: 0.1
Measurement range [hPa]: 300 à 1100
Weight [gr]: 4
Dimensions [mm]: 28 x 16 x 5
Operational temperature [°C]: -10 ... 85
Supply Voltage [V]: 3.5 ... 8,4
Average Current [mA]: 15

The Duplex system takes advantage of the 2.4GHz band for communication. This system not only transmits control data to the model but also sends data from the model back to the transmitter. The telemetry data collected during operation is shown as actual, measured values in real time on either LCD screen of a connected JETIBOX or on the DC/DS JETI model transmitters.
