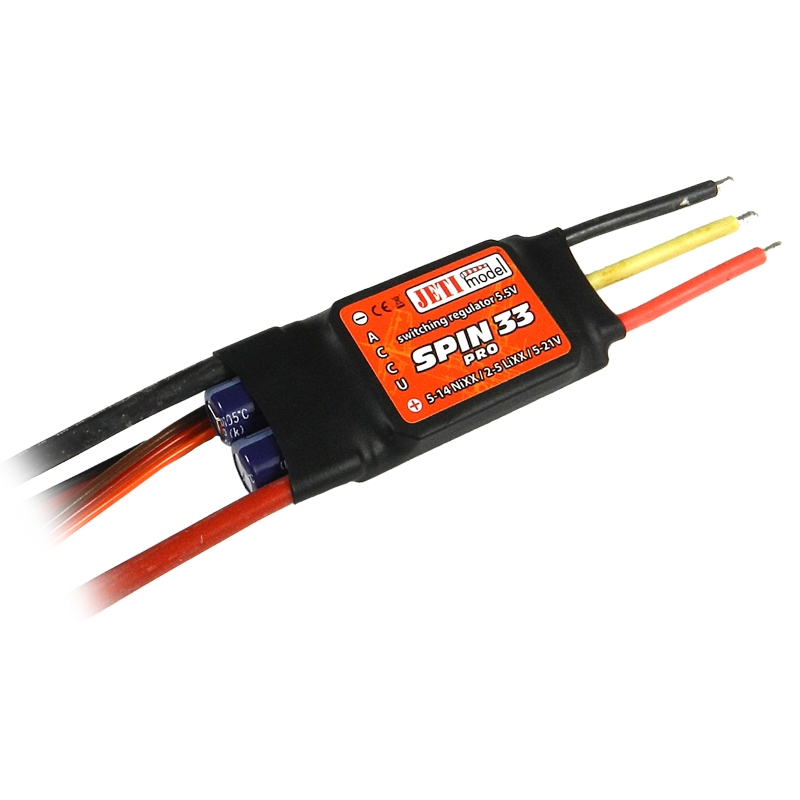

The SPIN Pro line offers, in comparison with the predecessors, increased adjustment possibilities, such as automatic motor timing, shut-off voltage adjustments practicable directly in volts, tuning of start-up properties for different motor types, as well as new possibilities of mode activation for setting up autorotation of helicopters.
Weight [g] | 32 |
Dimensions [mm] | 42 x 23 x 7 |
Sustained current [A] | 33 |
Telemetry | No |
Operational temperature [°C] | -10 ... 85 |
Supply Voltage [V] | 5 ... 21 |
Batteries NiXX | 5 ... 14 |
Batteries LiXX | 2 ... 5 |
Max. Current BEC [A] | 3 |
Voltage BEC [V] | 5,5 |
Max. number of servos | 7 |
Resistance in conducting state [mΩ] | 2 x 2,60 |
Number of power transistors | 18 |
Cable crossection (input/output) [mm²] | 2,5 / 1,5 |
Input capacitance [µF] | 2 x 220 |
