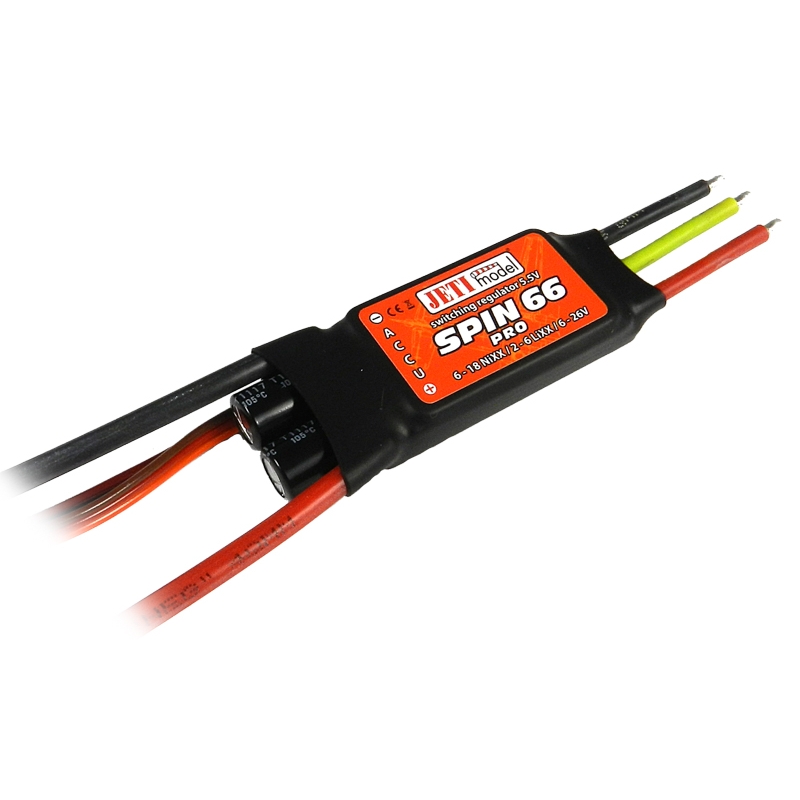

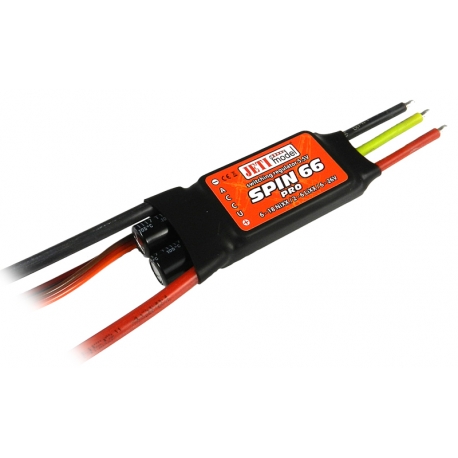

The SPIN Pro line offers, in comparison with the predecessors, increased adjustment possibilities, such as automatic motor timing, shut-off voltage adjustments practicable directly in volts, tuning of start-up properties for different motor types, as well as new possibilities of mode activation for setting up autorotation of helicopters.
|Dimensions [mm]||52 x 25 x 12|
|Sustained current [A]||70|
|Operational temperature [°C]||-10 ... 85|
|Supply Voltage [V]||5 ... 26|
|Batteries NiXX||6 ... 18|
|Batteries LiXX||2 ... 6|
|Max. Current BEC [A]||5|
|Voltage BEC [V]||5,5|
|Max. number of servos||8|
|Resistance in conducting state [mΩ]||2 x 1,00|
|Number of power transistors||48|
|Cable crossection (input/output) [mm²]||4,0 / 2,5|
|Input capacitance [µF]||2 x 470|
