> >>Jeti - Spin Pro Opto 200

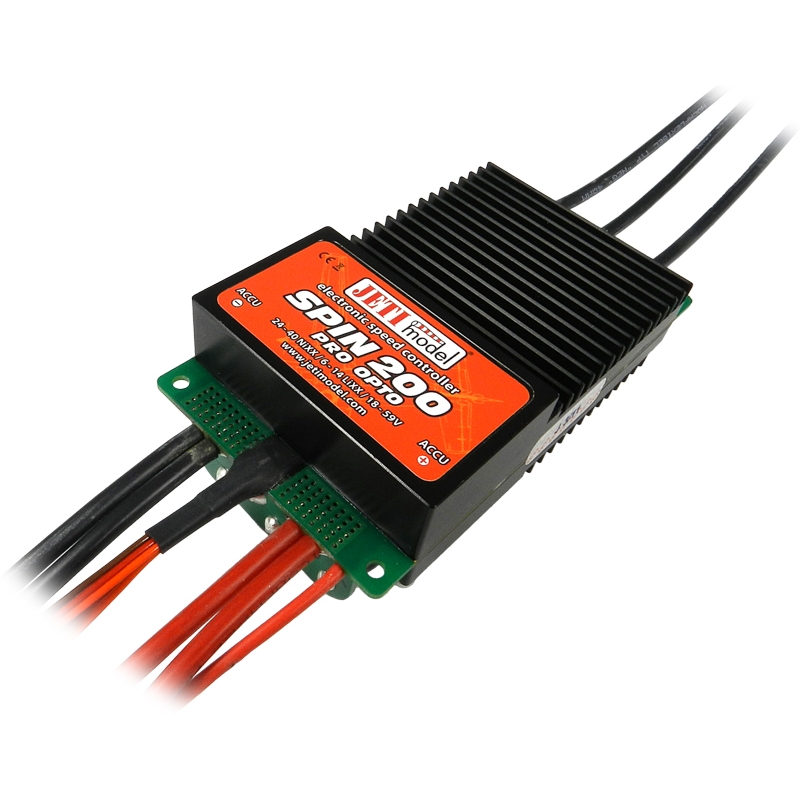

Jeti - Spin Pro Opto 200 View larger

Jeti - Spin Pro Opto 200

JSP-200-O

New product

Currently out of stock

434,90 €

Price excluding taxes : 362,42 €
VAT : 72,48 €

Enter your email to be notified when the product is available again:

Notify me when available

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

The SPIN Pro line offers, in comparison with the predecessors, increased adjustment possibilities, such as automatic motor timing, shut-off voltage adjustments practicable directly in volts, tuning of start-up properties for different motor types, as well as new possibilities of mode activation for setting up autorotation of helicopters.

Opto controllers have galvanically separated input (the receiver signal) from power accumulators, therefore it's necessary to use independent power supply for the receiver and servos (4-5 NiXX or 2-3 LiXX with linear voltage regulator, such as MAX BEC).

Technical data:

Weight [g] 326
Dimensions [mm] 63 x 120 x 27
Sustained current [A] 170
Telemetry Yes
Operational temperature [°C] -10 ... 85
Supply Voltage [V] 18 ... 59
Batteries NiXX 24 ... 40
Batteries LiXX 6 ... 14
Number of power transistors 30
Cable crossection (input/output) [mm²] 2 x 4,0 / 4,0
Input capacitance [µF] 5 x 820

Datalogger for:

  • Max temperature
  • Min. Temperature
  • Current temperature
  • Max. Current
  • Min. Current (at full throttle)
  • Max. Tension
  • Min. Tension
  • Current tension
  • cut-off voltage
  • Motor runtime
  • on time
  • Number of poles
  • Maximum speed
  • error
To program the controller, and to read the data is not a computer but only the Jeti Spin Box needed.

Adjustable parameters (overview):

  • Manual or Auto Mode
  • temperature protection
  • brake
  • Predefined modes for indoor runner / outrunner / glider / acro / helicopter
  • Manually definable modes Normal - Fast Response - Const RPM - Const RPM Auto
  • timing
  • clock speed
  • acceleration
  • battery type
  • cell number
  • Shutdown voltage per cell
  • cut-off voltage
  • Stick way
  • throttle curve
  • direction of rotation
  • Timing monitor
