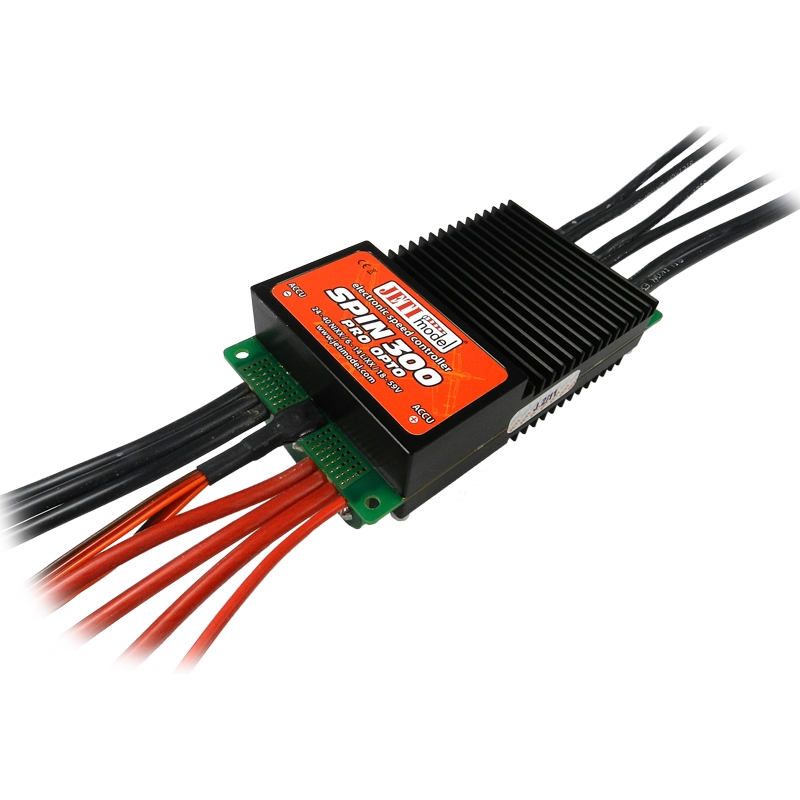

Jeti - Spin Pro Opto 300 View larger

Jeti - Spin Pro Opto 300

JSP-300-O

New product

In stock

530,90 €

Price excluding taxes : 442,42 €
VAT : 88,48 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

The SPIN Pro line offers, in comparison with the predecessors, increased adjustment possibilities, such as automatic motor timing, shut-off voltage adjustments practicable directly in volts, tuning of start-up properties for different motor types, as well as new possibilities of mode activation for setting up autorotation of helicopters.

Opto controllers have galvanically separated input (the receiver signal) from power accumulators, therefore it's necessary to use independent power supply for the receiver and servos (4-5 NiXX or 2-3 LiXX with linear voltage regulator, such as MAX BEC).

SPIN opto controllers are provided with two JR connectors. Connector on the longer three-line cable with black ending is to be linked to the receiver. Connector on the shorter three-line cable with red ending is intended for communication with JETIBOX; for programming or data reading connect it into slot marked imp. + - on JETIBOX.

Weight [g] 360
Dimensions [mm] 63 x 120 x 27
Sustained current [A] 220
Telemetry Yes
Operational temperature [°C] -10 ... 85
Supply Voltage [V] 18 ... 59
Batteries NiXX 24 ... 40
Batteries LiXX 6 ... 14
Number of power transistors 30
Cable crossection (input/output) [mm²] 3 x 4,0 / 2 x 4,0
Input capacitance [µF] 5 x 820

Datalogger for:

  • Max temperature
  • Min. Temperature
  • Current temperature
  • Max. Current
  • Min. Current (at full throttle)
  • Max. Tension
  • Min. Tension
  • Current tension
  • cut-off voltage
  • Motor runtime
  • on time
  • Number of poles
  • Maximum speed
  • error
To program the controller, and to read the data is not a computer but only the Jeti Spin Box needed.

Adjustable parameters (overview):

  • Manual or Auto Mode
  • temperature protection
  • brake
  • Predefined modes for indoor runner / outrunner / glider / acro / helicopter
  • Manually definable modes Normal - Fast Response - Const RPM - Const RPM Auto
  • timing
  • clock speed
  • acceleration
  • battery type
  • cell number
  • Shutdown voltage per cell
  • cut-off voltage
  • Stick way
  • throttle curve
  • direction of rotation
  • Timing monitor
