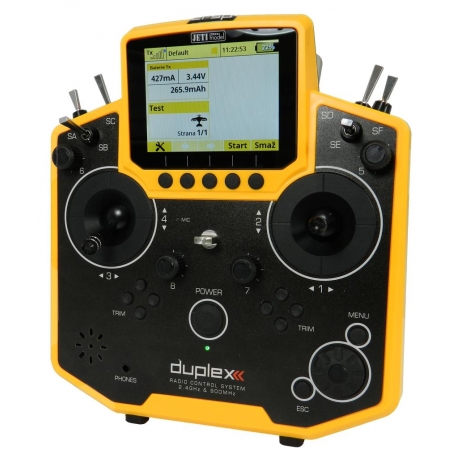

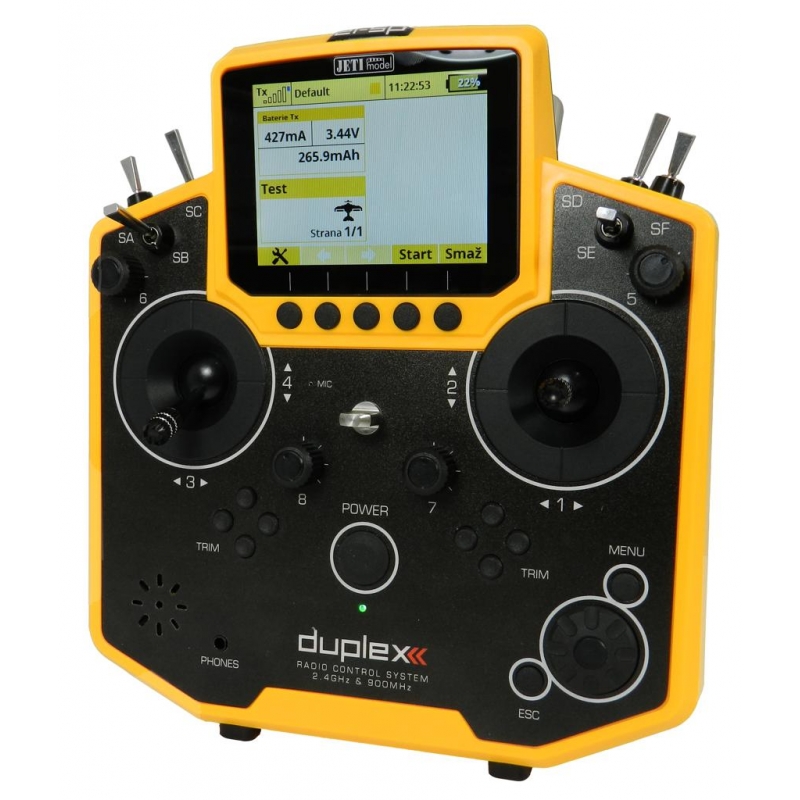

Jeti Duplex DS12 Multimode Yellow

JDEX-TDS12-MMY

New product

DS-12 transmitter in four modern color combinations. High-quality design with plastic housing, large color display, ball-bearing sticks and wear-free hall sensors. A low weight, the high-quality execution of the housing and a great ergonomic characterize this transmitter. The software can be expanded according to personal preferences and of course the full telemetry options.

More details

By buying this product you can collect up to 48 loyalty points.


In stock

482,50 €

Price excluding taxes : 482,50 €
VAT : 0,00 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement
DUPLEX Transmission - Yes

DUPLEX Transmission

Yes

Screen size - 3.5" TFT

Screen size

3.5" TFT

DS-12 transmitter in four modern color combinations. High-quality design with plastic housing, large color display, ball-bearing sticks and wear-free hall sensors. A low weight, the high-quality execution of the housing and a great ergonomic characterize this transmitter. The software can be expanded according to personal preferences and of course the full telemetry options.


 DS-12 Features



DS-12 Inside

A color TFT LCD display placed on the top side of the transmitter offers perfect legibility at any lighting condition and a large surveillance angle. Thanks to the high display resolution and application of a relatively big ammount of graphic images it was possible to create a simple and intuitive setting procedure, especially for displaying telemetric data.

The DUPLEX EX product family has been equipped with an improved telemetric data transfer system and the subsequent data processing on the LCD transmitter display or analysis on a PC. The transmitter allows  setup of acoustical notifications (optionally created by the user himself), which are related to the actual telemetric values or to sound signals assigned to conditions of particular control elements.






Duplex 2.4GHz – for flight control and reception of telemetric data from the model to the transmitter the DS-12 takes advantage of the Duplex 2.4GHz wireless system, which has been developed by the JETI company as well. TheDuplex 2.4GHz data transfer system is very reliable and has been verified during many years.

Duplex 900MHz NG (Next Generation) - the DS-12 features a backup wireless system for unmatched data transmission safety and reliability. The backup system works in cooperation with main Duplex 2.4GHz system.




Built-in Telemetry – from the beginning the DS-12 transmitter has been developed with regard to lucid displaying properties and exploitation of telemetry for model RC-control.








Integrated microphone with voice recognition capability – using the integrated microphone you can easily prepare your own audio files. Furthermore, you can teach the transmitter to respond to several voice commands.

Audio Player – the audio player application supports MP3 and WAV sound formats.






Model & Background Image – the DS-12 allows great personalization of the whole user interface.

Color Schemes – it is possible to choose a color scheme that corresponds to model colors. The DS-12 offers several predefined color schemes.












User Applications – the DS-12 can be easily extended using third-party applications written in Lua programming language (www.lua.org).

See the programming documentation.









DS-12:Design

Design of the DS-12 Transmitter – the main goal was maximum user comfort, exclusive appearance and longevity by exploitation of premium quality materials.







 DS-12 Gimbals

Precise Gimbals – made of metal ball raced parts warrant  together with contactless scanning  an enormous longevity.

Haptic Feedback – the gimbals are equipped with stick shaking vibration motors that can be used for alarm notifications, timers etc.







DS-12 Display

LCD Display – the 3.5“ TFT LCD display of the DS-12 transmitter with a resolution of 320x240 pixels allows perfect legibility under all lighting conditions.






Li-Ion Battery – a reliable energy source with high capacity and long service life.





DS-12

Easy Charging – simply done by connecting the mains adapter to the transmitter. The charging proces is shown in the DS-12 display.

USB Connector – convenient connection to your PC. Fast firmware &
sound upgrades, telemetry data downloads.





DS-12:Antenna

Integrated Antenna – the antenna forms an integral part of the transmitter and is protected against mechanical damage.





Weight [g] 700
Dimensions [mm] 194x215x55
Output Power - 2.4GHz [mW] 100
Number of channels 16
Number of controls 14
Resolution 4096 steps
Telemetry Yes
Operational temperature [°C] -10 ... 60
Operating time [h] up to 12
Compatible protocols DUPLEX 2.4GHz EX, 900MHz, EX Bus
Output Power - 900MHz [mW] 25


In order to preserve the manufacturer's warranty, the change of mode / addition of stick switches and other customizations of the radio must be carried out by an approved professional from the Jeti-France network. Contact us for more information before making your purchase.
