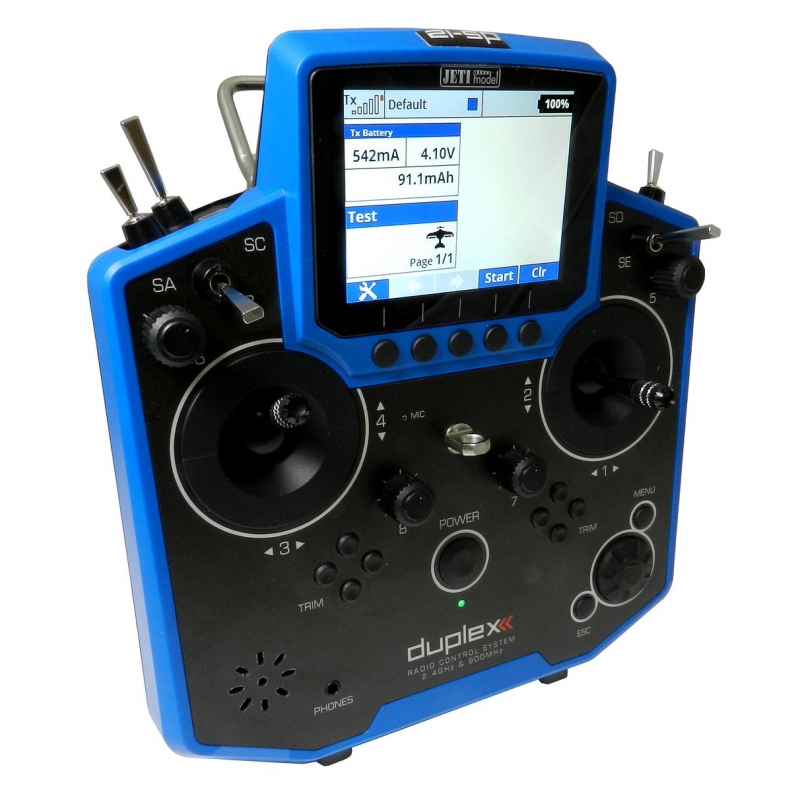

Jeti Duplex DS12 Multimode View larger

Jeti Duplex DS12 Multimode Blue

JDEX-TDS12-MMB

New product

DS-12 transmitter in four modern color combinations. High-quality design with plastic housing, large color display, ball-bearing sticks and wear-free hall sensors. A low weight, the high-quality execution of the housing and a great ergonomic characterize this transmitter. The software can be expanded according to personal preferences and of course the full telemetry options.

More details

By buying this product you can collect up to 61 loyalty points.


In stock

619,00 €

Price excluding taxes : 515,83 €
VAT : 103,17 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement
DUPLEX Transmission - Yes

DUPLEX Transmission

Yes

Screen size - 3.5" TFT

Screen size

3.5" TFT

Purposefully placed at the top of the transmitter, the 3.5" sunlight readable color LCD with its wide viewing angle offers nearly perfect visibility in just about any lighting condition. Thanks to its high resolution display and use of a relatively large number of graphic images it was possible to create a simple and intuitive setup procedure for displaying telemetric data.

The DUPLEX EX family of products have been equipped with an improved real-time telemetry system which can be viewed on the LCD transmitter display. The transmitter allows the setup of voice notifications, both preinstalled and user created, which can be related to telemetric values, user set alarms, or signals which have been assigned to conditions of various control elements.
The DS-12 offers concept of individual feature setup based upon the requirements of each customer. The transmitter is available in a basic configuration that will meet the needs of most users for most model
types. For individual setting of the transmitter there is a configurator available at swshop.jetimodel.com. After the simple registration of your transmitter it is possible to select additional features based upon your individual demands.

Features:

  • Channels: 8 (up to 12 extendable)
  • 2.4GHz RF module: 1
  • 900MHz backup system: Optional
  • Color TFT: 3.5 inches, 320x240 pixels
  • Sticks with hall sensors: Yes
  • Resolution sticks: 4096 steps
  • Internal memory: SD card, 8GB
  • Free mixers: 5 (up to 20 extendable)
  • Timers: 3 (up to 20 extendable)
  • Visible values on display: 10 (up to 40 extendable)
  • Voice output for functions: 5 (up to 20 extendable)
  • Alerts: 10 (up to 40 extendable)
  • Channels for gyro axes: 1 (up to 3 extendable)
  • Flight modes: 3 (up to 6 extendable)
  • Flight mode trimming: Yes
  • DITEX telemetry values: 16
  • Lua extensions: max. 10
  • MP3 player: Yes
  • Microphone: Yes

Optional features:

  • ogical switches: 0 (up to 16 extendable)
  • Sequencers: 0 (up to 6 extendable)
  • Accelerometer: Optional
  • Audio player: Optional
  • Telemetry controls: 0 (up to 16 extendable)
  • Vibration alert: Optional
  • Voice output: Optional
  • Servo balancer: Optional
  • Function curves: Optional
  • Throttle limiter: Optional
  • Variometer: Optional




Weight [g] 700
Transmitter Aluminum Case No
Transmitter Battery Pack (mAh) 6200
Backlit LCD 3.5" 320x240px color, high contrast
Memory, SD Card 8GB
Gimbal Hall Sensors/Vibration Yes / Yes (not included with the joystick)
Stick Resolution 4096
Transmitter Frame Plastic
Gimbals & Buttons Plastic
Number of antenas 2.4GHz/900MHz 2 / 1
RF modules 2.4GHz/900MHz 1 / 1 (next generation) 863 - 870 MHz (EU), 902 - 928 MHz (US)
Control Inputs (Stick/Switch/Knob) 14
Dimensions [mm] 194 x 215 x 55
Output Power - 2.4GHz [mW] 100
Operational temperature [°C] -10 to +60
Channels 8 (up to 16)
Control Inputs (Stick/Switch/Knob) 14
Backup Module 900MHz (upgradable)
Flight Modes 3 (up to 6)
Free Mixes 5 (up to 20)
Data Graphs (upgradable)
Audio Player (upgradable)
Logical Switches 0 (up to 16)
Number of Remote Commands 0 (up to 16)
Servo Sequencer 0 (up to 6)
Timers 3 (up to 10)
Displayed Telemetry Values 10 (up to 40)
Sound on Events 5 (up to 20)
Alarms 10 (up to 40)
Vibration Alarms (upgradable)
Voice Output (upgradable)
MP3 Active
Microphone Active
Gyro Settings 1 (up to 3)
Servo Balancer (upgradable)
Function Curves (upgradable)
Throttle Limiter (heli) (upgradable)
Variometer (upgradable)
Flight Mode Trim Active
Data Stream Logging 80
Telemetry Controls 0 (up to 16)
Voice Commands 0 (up to 15)
Lua Apps 10
Ditex Servo Telemetry Active
Double Path (upgradable)
Accelerometer (upgradable)

In order to preserve the manufacturer's warranty, the change of mode / addition of stick switches and other customizations of the radio must be carried out by an approved professional from the Jeti-France network. Contact us for more information before making your purchase.

Jeti France Pack: 1x OPTronics Stick protection holder for JETI DS
