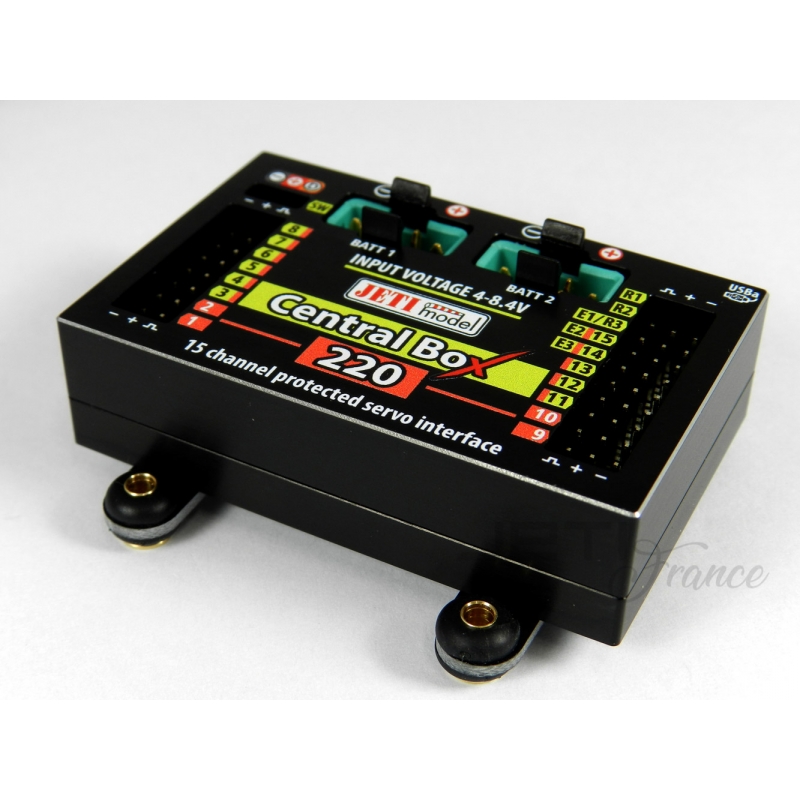

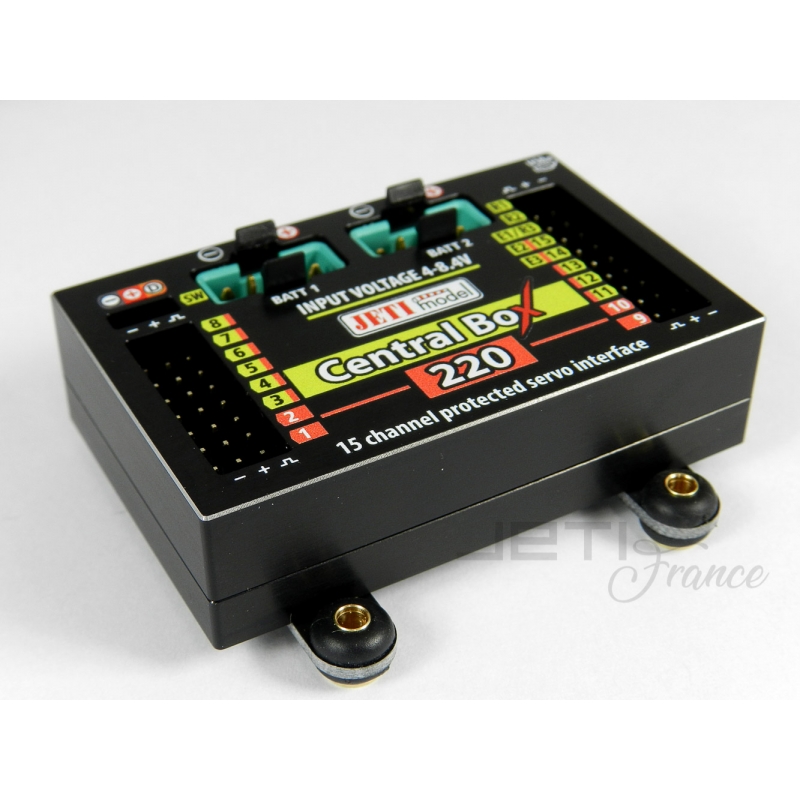

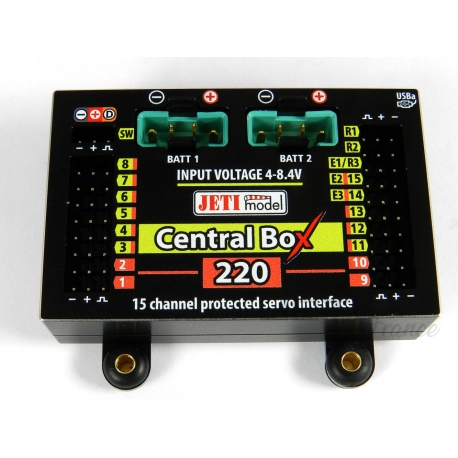

Central Box 220 + 2x Rsat2 + Magentic Switch

J-CB-220-RS

New product

The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety.

More details

By buying this product you can collect up to 26 loyalty points.


In stock

265,83 €

Price excluding taxes : 265,83 €
VAT : 0,00 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement
DUPLEX Transmission - Yes

DUPLEX Transmission

Yes

The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box 220 have a unique design that provides overload protection at each servo output. The Central Box can manage up to two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial (PPM, EX Bus, S.BUS, UDI) output can be connected to the Central Box 220. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.

Attributes

  • Central Box 220 has overload protection on each channel

  • Channels 1, 2, 9 and 10 have protection for high-torque servo up to 60 Kg.cm.
  • Channels 3 - 8 and 11 - 15 have protection for standard servo up to 30 Kg.cm.
  • Support of DITEX telemetry servos
  • Possibility to connect up to 3 receivers with serial interface
  • Built-in Expander function for up to 3 sensors
  • Input for magnetic switch or RC switch
  • 2x MPX battery input connectors
  • 100Hz mode of servo outputs (10ms period)
  • Supports EX telemetry (voltage, current, capacity, temperature measurement, …)

Recommended connection of standard (as well as high voltage) servos:


Weight [g] 65
Dimensions [mm] 66x42x18
Sustained current [A] 20
Number of channels 15
Telemetry Yes
Operational temperature [°C] -20 ... 75
Compatible protocols EX Bus, PPM, S.Bus, UDI
Supply Voltage [V] 4 ... 8.4
Satellite receiver support Yes
Batteries LiXX 2
Idle current [µA] 240
Number of battery inputs 2
Voltage stabilization No
Peak current (2s) [A] 90
