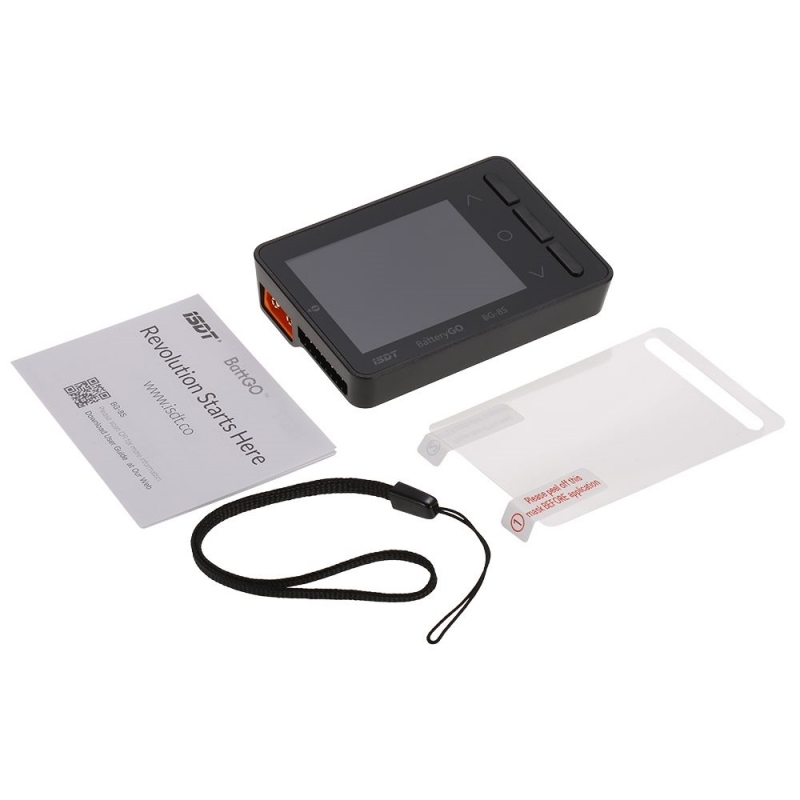

ISDT-BG8S
New product
High contrast color screen visible without any difficulty under a blazing sun
It allows you to check the state of charge of your battery.
It is BattGo compatible
By buying this product you can collect up to 4 loyalty points.
High contrast color screen visible without any difficulty under a blazing sun
It allows you to check the state of charge of your battery.
It is BattGo compatible
Cooperating with BattGO technology, only with XT60i connected and you can get full knowledge on detail parameters on your battery.

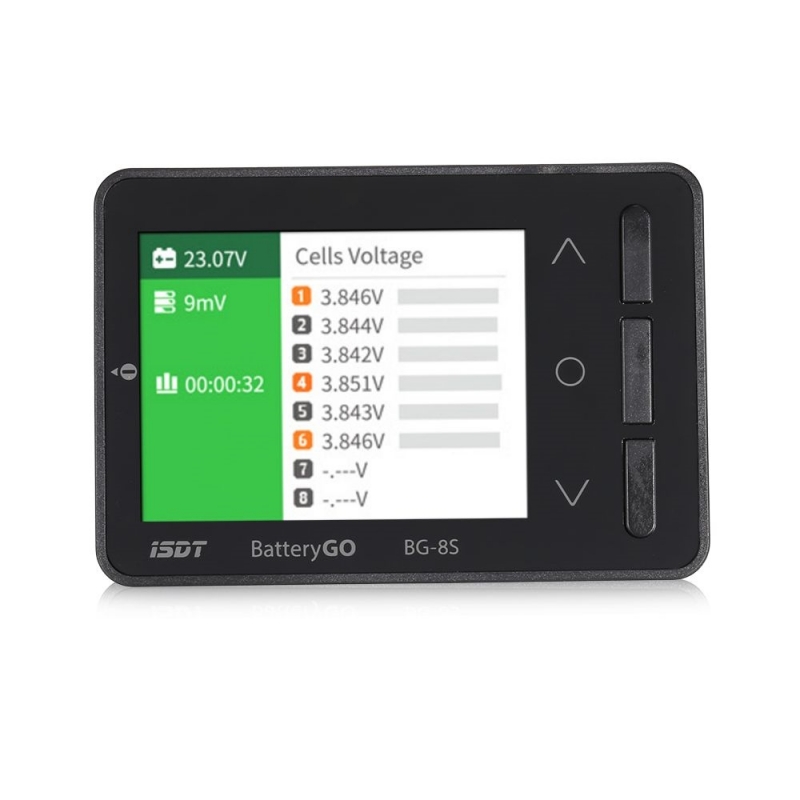

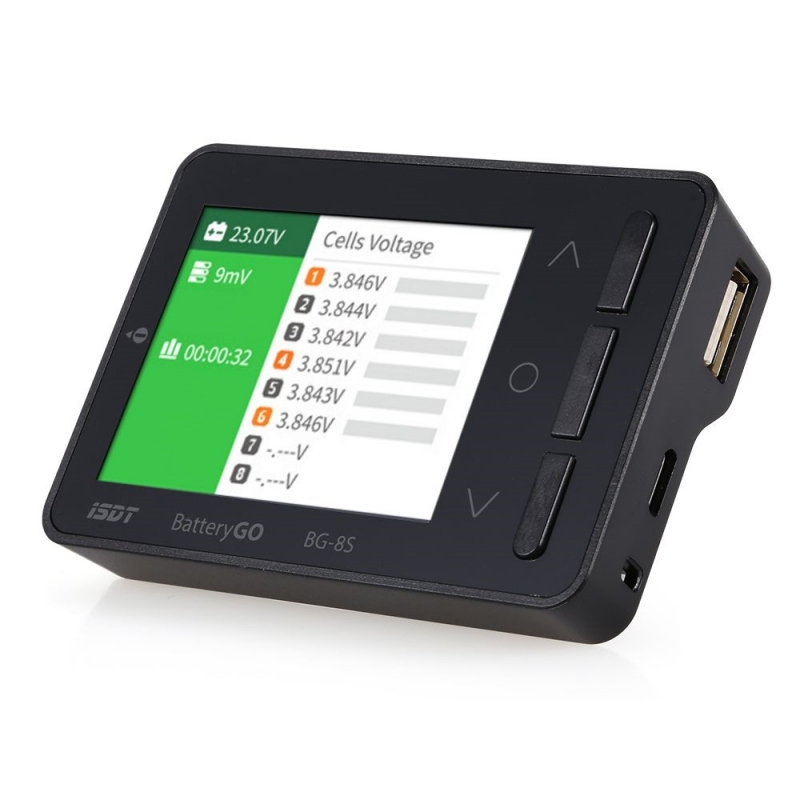

Easy to read cells voltage, battery cycles, working parameters and fast set to your preferred settings.
Read more on BattGO.
Connecting to your battery, BG-8S can become your power bank for mobile devices.
Support Qualcomm QC 2.0/3.0, compatible with BC1.2 and Apple devices. Maximum output 12V/2A
With standard 3 pin plug, BG-8S can detect BEC output voltage.
BG-8S also supports multiple protocol analysis including PWM, PPM&S.BUS and etc. With future firmware upgrades more Protocol analysis will be supported.
Working voltage : | 5.0V-36V |
Input voltage 1s : | 0.8V-15V |
Input voltage 2-8S : | 0.8V-4.8V |
Battery cells : | 1-8S |
Voltage measurement accuracy : | ±0.005V @ 4.2V |
Balancing cells accuracy : | < 0.005V |
Support USB charging : | QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A |
Support smart battery : | Charging and discharging setting, read battery info and usage history. |
Supported Batt. Type : | LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) Lilon (1-8S) / NiMH/Cd(1-10S) |
Display : | 2.4〃320×240 260,000 color IPS LCD |
Dimension : | 80 X 55 X 19 mm |
Weight : | 59g |
Operating Temperature : | 0-40℃ |
Working Humidity : | 10%-90%RH (noncondensing) |
Storage Temperature : | -20-60℃ |
Storage Humidity : | 5%-90%RH (noncondensing) |
