Motor Kit - Backpack M3 / XS3 - 380W
OP15502
New product
Opale Paramodels motor and ESC with a carbon propeller. Best setup for beginners and advanced pilots.
- Write a review
By buying this product you can collect up to 12 loyalty points.
Motor power
380W
Propeller size
10 "
Motor Kit - Backpack M3/XS3 - 380W
The motor and controller made especially for Opale Paramodels were tested by us through their paces. Own measurements have brought better performance than we had promised before.
A motor / controller set ideal for Power 1.1 and 1.8 Hybrid. The software optimization for the controller was developed in the headquarter of Opale Paramodels according to the phases of flight.
A motor / controller set ideal for Power 1.1 and 1.8 Hybrid. The software optimization for the controller was developed in the headquarter of Opale Paramodels according to the phases of flight.
The set has been completely assembled. Simple to install and connect. Everything without soldering.
Motor OP3530 features:
| KV (RPM/V): | 1350 |
| Power (W) with 3S Lipo at 34A (10s): | 380 |
| Power (W) with 4S Lipo at 37A (10s): | 630 |
| Mass (gr): (lb): |
79 0.17 |
| Dimensions (mm): (in): |
35x30 1.4x1.2 |
| Motor: | Opale OP3530 |
| Shaft diameter (mm): (in): |
5 0.2 |
| Poles: | 14 |
| Connectors: | PK Gold 3.5mm |
| Maximal propeller size (in): | 10x4.7 |
| Input voltage: | 3S |
ESC OP35A features:
| Current(A): | 35 |
| Burst current (A) (10s): | 45 |
| BEC: | 3A/5V |
| Input voltage: | 2-4S |
| Mass (gr): (lb): |
34 0.07 |
| Dimensions (mm): (in): |
55x25x7 2.1x1x0.3 |
| Motor connectors: | PK Gold 3.5mm |
| Battery connectors: | EC3 |
Opale Carbon prop 10x4.7 features:
The best prop for max performances and the easiest handling. This propeller designed for Rc paramotor uses, will offer you the easiest feeling on your model.
Due to its special shapes, light weight, it reduces considerably the torque effect. It's the must have on your Backpack M3 or XS3!
Due to its special shapes, light weight, it reduces considerably the torque effect. It's the must have on your Backpack M3 or XS3!
| Diameter (in): | 10 |
| Pitch (in): | 4.7 |
| Material: | Carbon |
| Masse (gr): (lb): |
8 0.02 |
| Shaft diameter (mm): (in): |
6 0.24 |
| Adapter shaft diameter (mm): (in): |
5 0.2 |
| Shape: | Special |

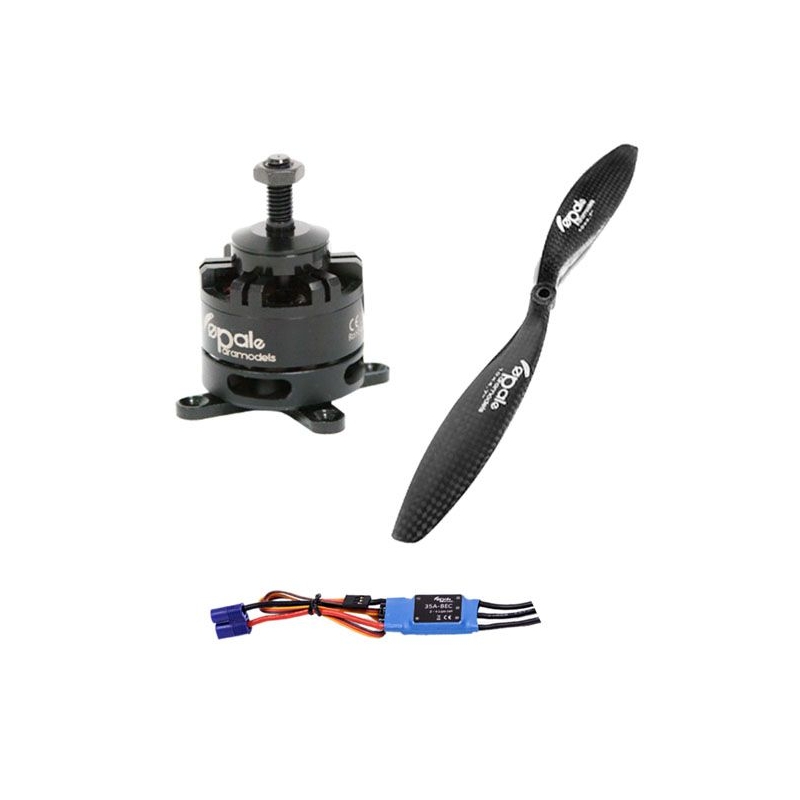

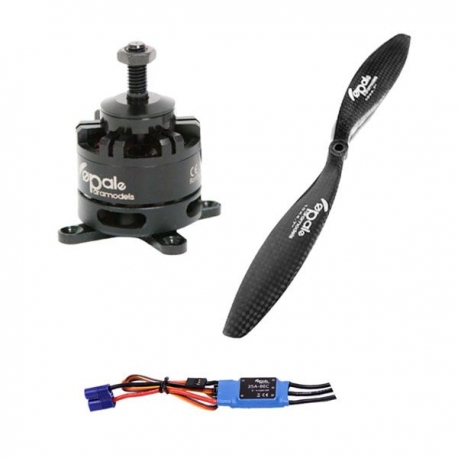

Included:
- 1 x OP3530 Motor
- 1 x OP35A ESC
- 1 x 10x4.7in Opale Paramodels Carbon propeller
Required and not included:
- Backpack XS3 or M3
- 3S
