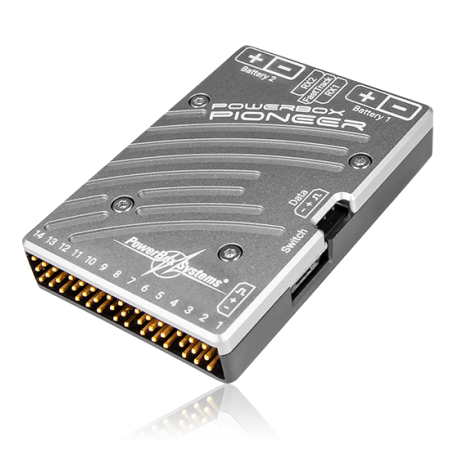

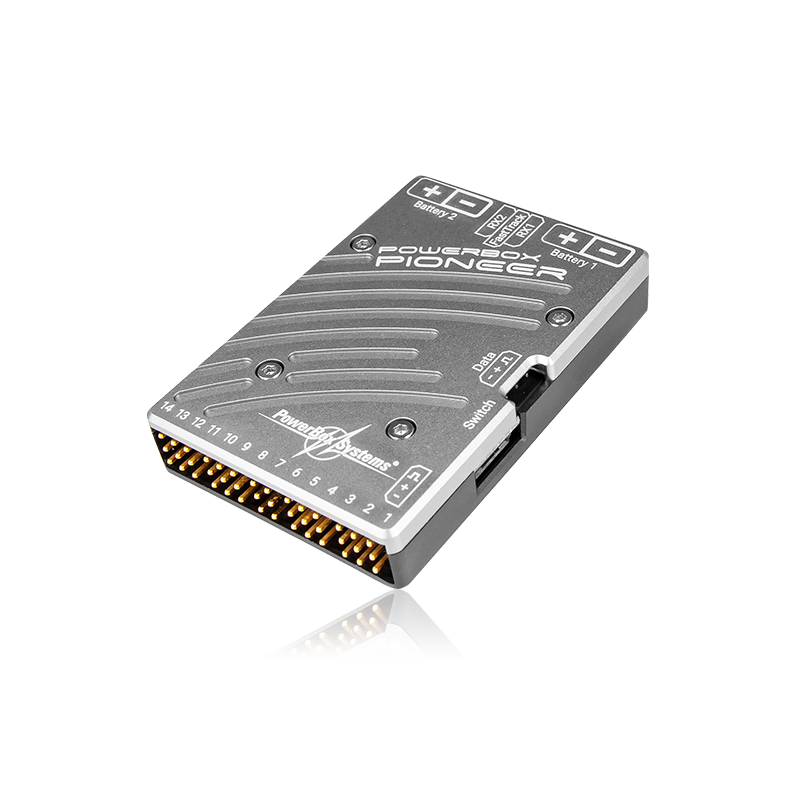

PowerBox Pioneer + MicroSwitch

4100

New product

The PowerBox Pioneer is the latest development of a 14-channel power supply unit without voltage regulation, designed for HV servos.

More details

By buying this product you can collect up to 21 loyalty points.


In stock

219,00 €

Price excluding taxes : 182,50 €
VAT : 36,50 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

The PowerBox Pioneer is the latest development of a 14-channel power supply unit without voltage regulation, designed for HV servos.

Features

  • 14 channels
  • High-performance battery backer with high continuous load capacity
  • Duplicated circuitry for the entire power electronics
  • Redundant electronic switch
  • All features can be controlled using PowerBox and Jeti transmitters
  • All systems can be operated using BlueCom or PowerBox USB
  • Integrated iGyro technology of the latest type, with iGyro SAT as gyro sensor
  • Nine independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
  • Special regulatory algorithm for fixed-wing models
  • Detects all transmitter mixers
  • Ultra-simple gyro programming in just a few minutes
  • Optional GPS mode for speed-dependent gyro compensation
  • Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS and Spektrum SRXL2
  • Transmission of voltage, current, capacity, lost frames and holds
  • User-variable servo frame rate: 10 ms, 12 ms, 14 ms, 16 ms, 18 ms
  • Suppression of servo feedback currents
  • Ultra-modern 32-bit microprocessor ensures swift, accurate signal processing
  • Efficient heat dissipation via the high-quality machined and anodised aluminium case
  • Machined and anodised aluminium switch housing
  • Space-saving low-profile format
  • Ultra-lightweight construction

Technical Data

Operating voltage 4.0 V - 9.0 V
Power supply 2s LiPo, 2s Lilon, 2s LiFePo, 5s NiMH
Current drain Power-on state 105 mA
Current drain Standby 30 µA
Maximum load current Continuous 2x10 A (<30 s 2x 20 A)
Drop-out voltage 0.3 V
Output voltage unregulated
Signal input serial
Supported RC systems PowerBox, Futaba, Jeti and Spektrum
Receiver redundancy SRS
Channels 26
Servo sockets 14
Servo signal resolution 0,5 µs
Signal frame rate 10 ms, 12 ms, 14 ms, 16 ms, 18 ms
Gyro regulation Heading- and Normalmode
Gyro sensor type external iGyro SAT
Number of sensor axes 9
Supported telemetry systems P²BUS, S.BUS2, EX-Tele, SRXL2
Dimensions 63 x 44 x 12 mm
Weight 40 g
Weight Sensor Switch 6 g
Temperature range -30 °C to +75 °C

Set contents

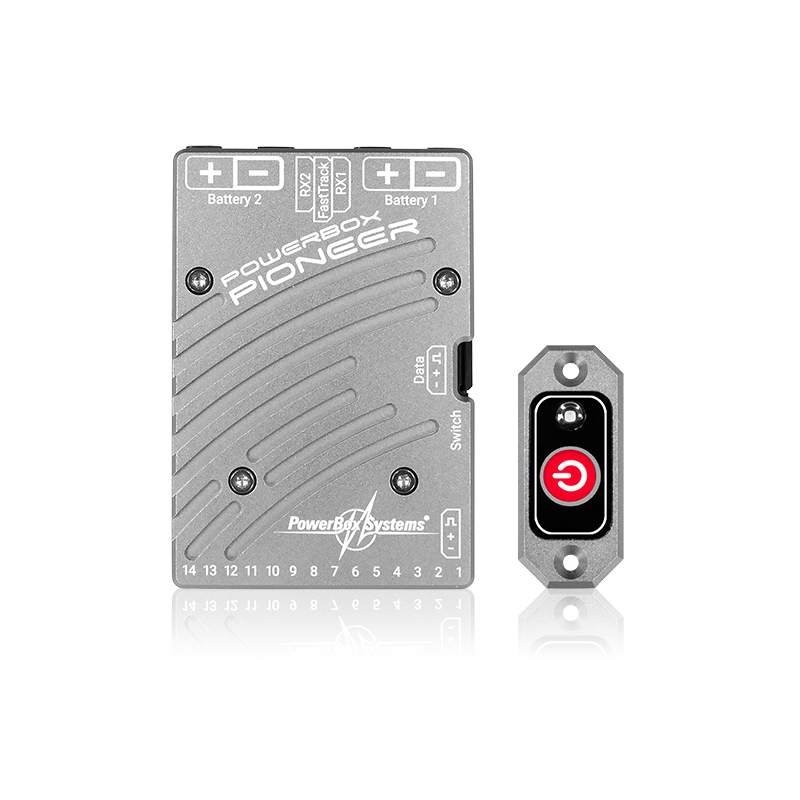

PowerBox Pioneer + MicroSwitch

  • 2 patch leads 22 cm
  • 2 retaining screws
  • Adhesive tape
  • Operating instructions in English and German
