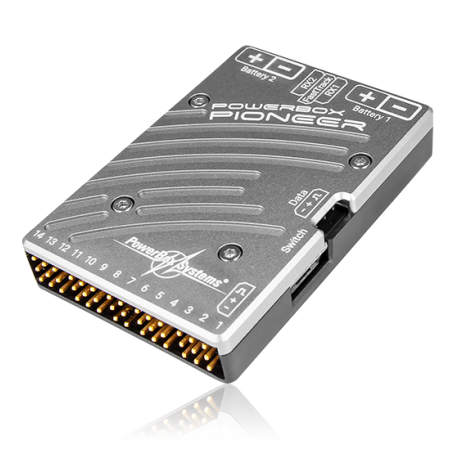

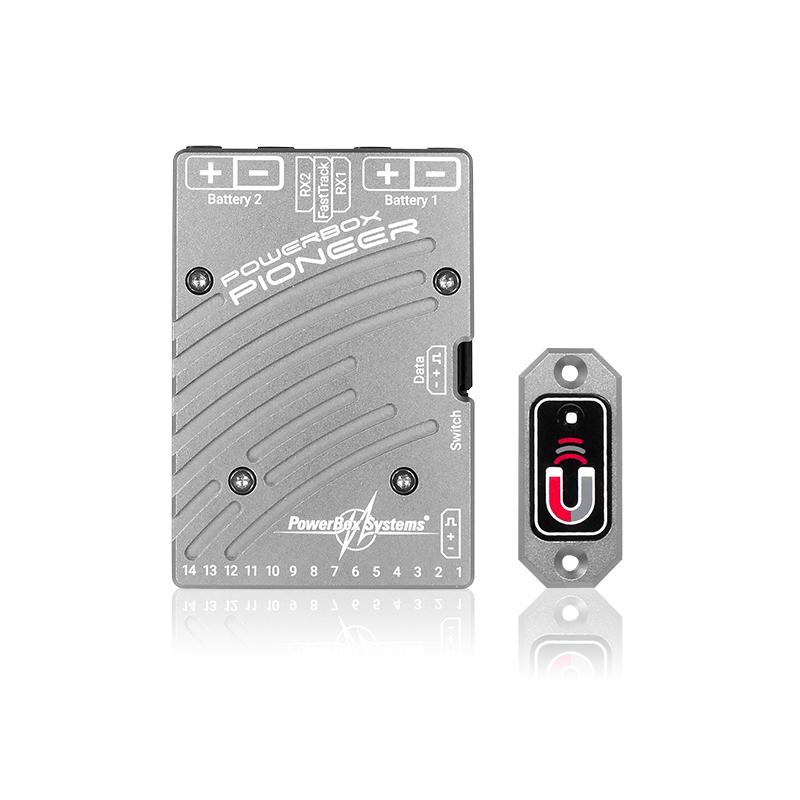

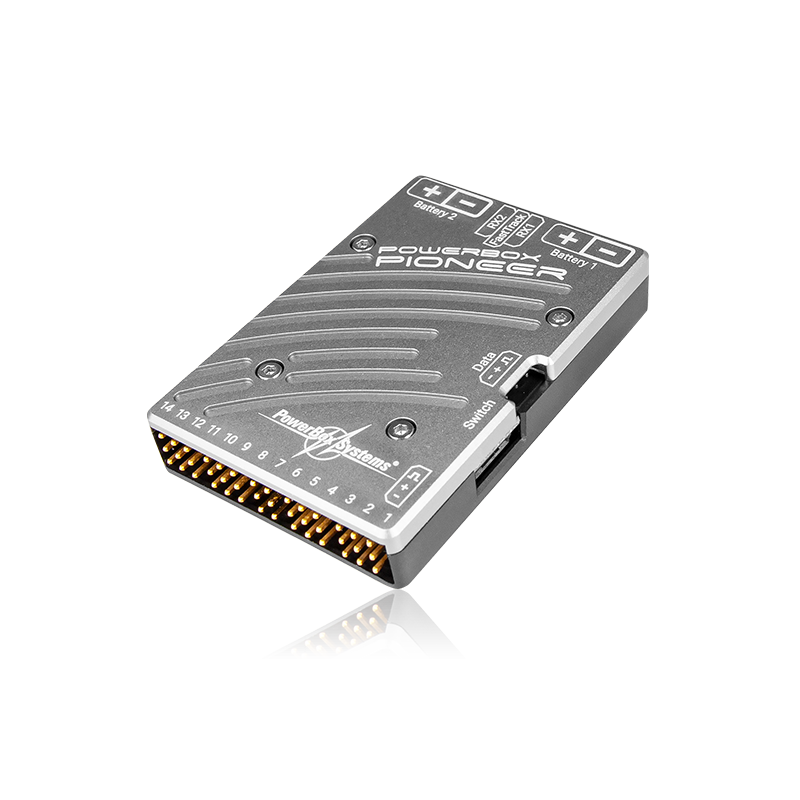

PowerBox Pioneer + MicroMag
4102
New product
The PowerBox Pioneer is the latest development of a 14-channel power supply unit without voltage regulation, designed for HV servos.
- Write a review
By buying this product you can collect up to 18 loyalty points.
The PowerBox Pioneer is the latest development of a 14-channel power supply unit without voltage regulation, designed for HV servos.
Features
- 14 channels
- High-performance battery backer with high continuous load capacity
- Duplicated circuitry for the entire power electronics
- Redundant electronic switch
- All features can be controlled using PowerBox and Jeti transmitters
- All systems can be operated using BlueCom or PowerBox USB
- Integrated iGyro technology of the latest type, with iGyro SAT as gyro sensor
- Nine independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
- Special regulatory algorithm for fixed-wing models
- Detects all transmitter mixers
- Ultra-simple gyro programming in just a few minutes
- Optional GPS mode for speed-dependent gyro compensation
- Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS and Spektrum SRXL2
- Transmission of voltage, current, capacity, lost frames and holds
- User-variable servo frame rate: 10 ms, 12 ms, 14 ms, 16 ms, 18 ms
- Suppression of servo feedback currents
- Ultra-modern 32-bit microprocessor ensures swift, accurate signal processing
- Efficient heat dissipation via the high-quality machined and anodised aluminium case
- Machined and anodised aluminium switch housing
- Space-saving low-profile format
- Ultra-lightweight construction
Technical Data
| Operating voltage | 4.0 V - 9.0 V |
| Power supply | 2s LiPo, 2s Lilon, 2s LiFePo, 5s NiMH |
| Current drain Power-on state | 105 mA |
| Current drain Standby | 30 µA |
| Maximum load current | Continuous 2x10 A (<30 s 2x 20 A) |
| Drop-out voltage | 0.3 V |
| Output voltage | unregulated |
| Signal input | serial |
| Supported RC systems | PowerBox, Futaba, Jeti and Spektrum |
| Receiver redundancy | SRS |
| Channels | 26 |
| Servo sockets | 14 |
| Servo signal resolution | 0,5 µs |
| Signal frame rate | 10 ms, 12 ms, 14 ms, 16 ms, 18 ms |
| Gyro regulation | Heading- and Normalmode |
| Gyro sensor type | external iGyro SAT |
| Number of sensor axes | 9 |
| Supported telemetry systems | P²BUS, S.BUS2, EX-Tele, SRXL2 |
| Dimensions | 63 x 44 x 12 mm |
| Weight | 40 g |
| Weight Sensor Switch | 6 g |
| Temperature range | -30 °C to +75 °C |
Set contents
PowerBox Pioneer + MicroMag
- Magnet
- 2 patch leads 22 cm
- 2 retaining screws
- White adhesive tape
- Sticker MagSensor
- Key ring
- Operating instructions in English and German
