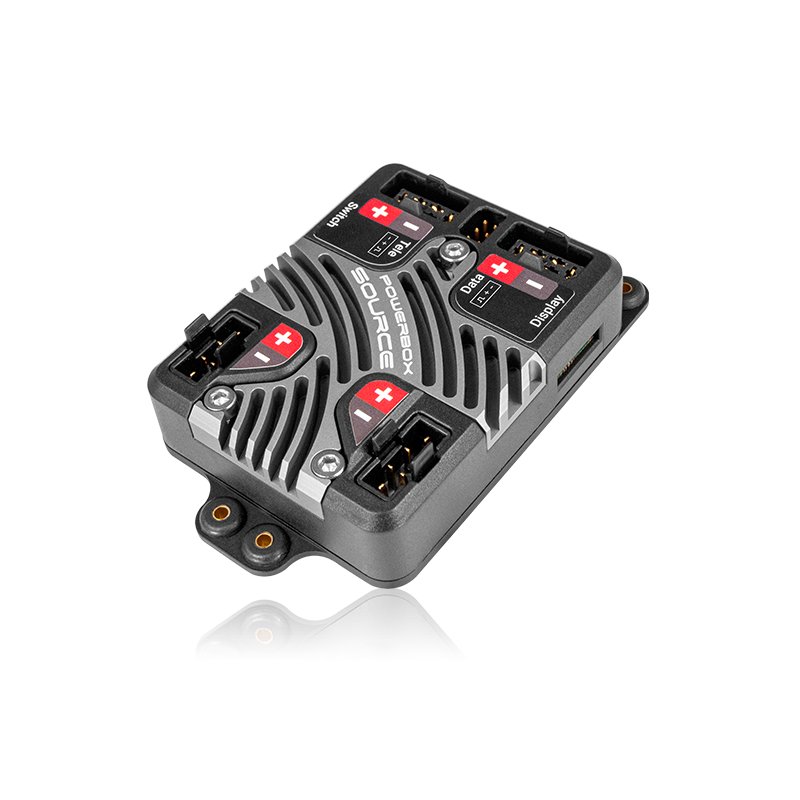

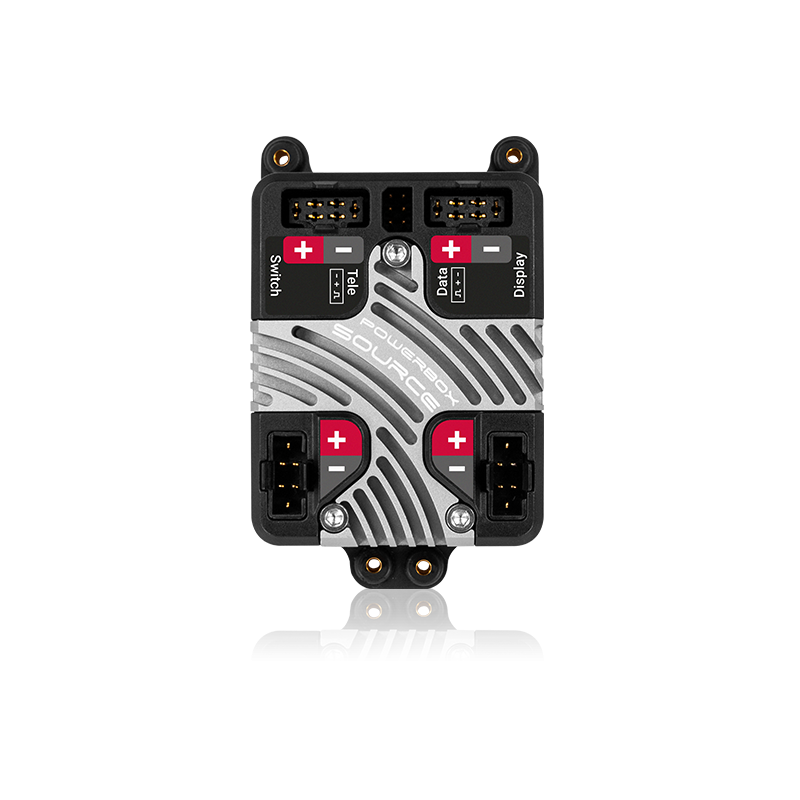

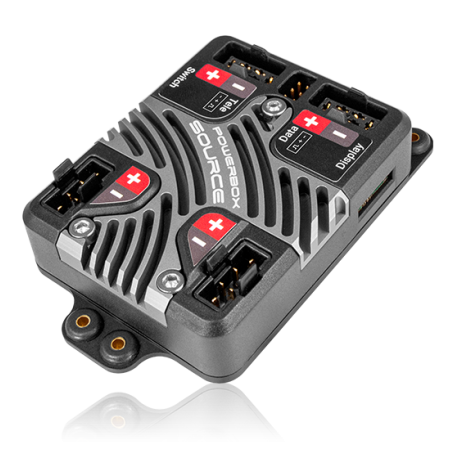

PowerBox Source
3420
New product
The PowerBox Source is a logical development of the successful BaseLog, taking due account of requests from customers and modern telemetry system requirements.
- Write a review
By buying this product you can collect up to 16 loyalty points.
The PowerBox Source is a logical development of the successful BaseLog, taking due account of requests from customers and modern telemetry system requirements.
Features
- High performance
- Optimised cooling
- Small size
- Optional OLED screen, 128x64 pixels
- Four different output voltages
- Suitable for use with all battery types
- Can be controlled by PowerBox CORE, switch, BlueCom or USB interface
- Supports six different telemetry systems: CORE P²BUS, Jeti EX-Bus, Futaba S.BUS2, Multiplex M-Link, Graupner Hott, JR DMSS
- Redundant regulator design
- Suppression of servo feedback currents
- Protection against electro-static discharge
- Integral regulator monitoring
- Can be updated using the USB Interface or BlueCom Adapter
Technical Data
| Operating voltage | 4.0V - 9.0V |
| Power supply | 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH |
| Current drain Power-on state | 85mA |
| Current drain Standby | 10µA |
| Maximum load current | Peak 2x20A |
| Drop-out voltage | 0.3V |
| Output voltage | 5.9V / 7.4V / 7.8V / 8.4V |
| Screen | OLED 128 x 64 pixels (optional) |
| Supported telemetry systems | PowerBox, Jeti, Futaba, Graupner, Multiplex, JR |
| Dimensions | 54 x 88 x 23 mm |
| Weight | 77 g |
| Weight Sensor Switch | 15 g |
| Temperature range | -30°C to +85°C |
Set contents
- PowerBox Source
- SensorSwitch
- 2 PowerPatch-leads (1x MPX / MPX and 2x MPX / JR)
- 4 rubber grommets and brass spacers, factory-fitted
- 4 retaining screws
- Operating instructions in English and Germa
