> >>PowerBox Sensor V3 JR/JR

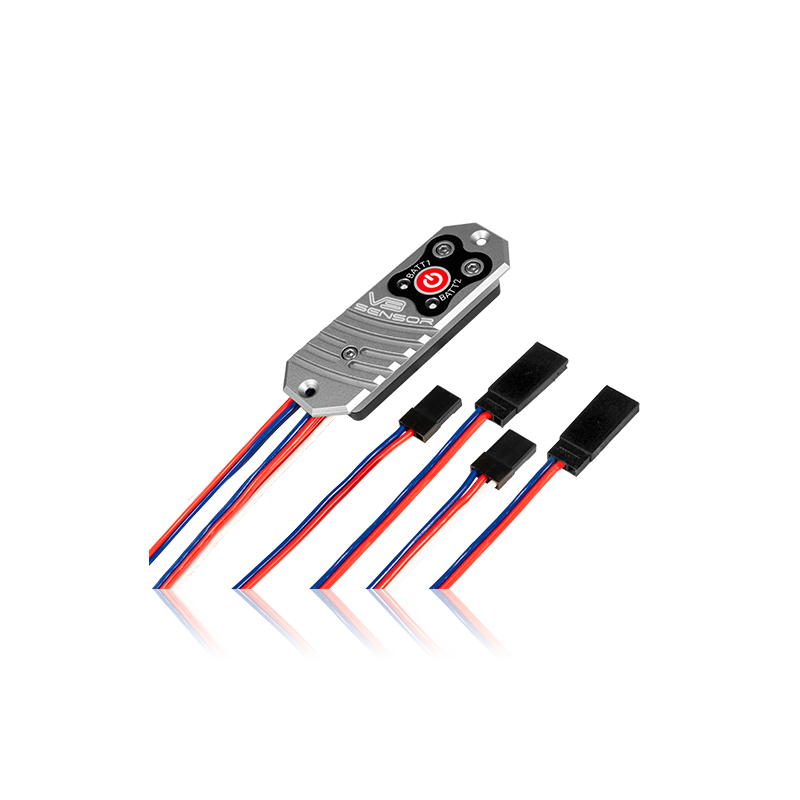

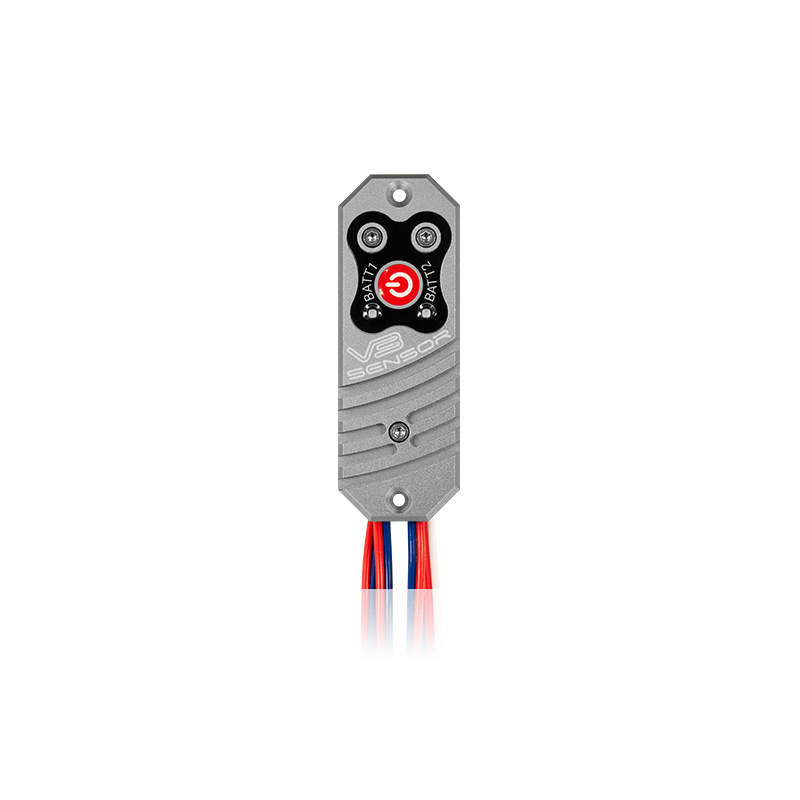

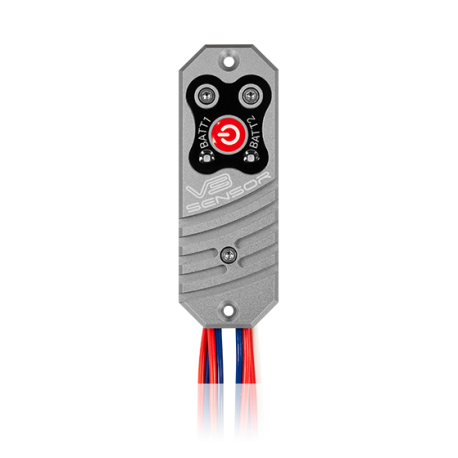

PowerBox Sensor V3 JR/JR View larger

PowerBox Sensor V3 JR/JR

6330

New product

The PowerBox Sensor V3 is the third generation of the PowerBox Sensor, which is well-known throughout the world.

More details

By buying this product you can collect up to 10 loyalty points.


In stock

109,00 €

Price excluding taxes : 90,83 €
VAT : 18,17 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

The PowerBox Sensor V3 is the third generation of the PowerBox Sensor, which is well-known throughout the world.

Features

  • High-performance battery backer
  • Ultra-light unit, compact format
  • Double regulated output voltage
  • Redundant switch and regulator circuitry
  • User-selectable output voltage: 6.0 V or 7.8 V
  • Separate RGB LED voltage indicators for each battery
  • Telemetry support for CORE systems
  • Supports 4 different battery types: 2s LiPo, 2s LiIon, 2s LiFePo and 5s NiMH
  • Regulator monitoring
  • Suppression of servo feedback currents

Technical Data

Operating voltage 4.0 V - 9.0 V
Power supply 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiMh
Current drain Power-on state 30 mA
Current drain Standby 10 µA
Maximum load current Peak 2x 10 A
Drop-out voltage 0.25 V
Output voltage 6.0 V/ 7.8 V regulated
Dimensions 65 x 26 x 11 mm
Weight 30 g
Temperature range -30 °C bis +105 °C
