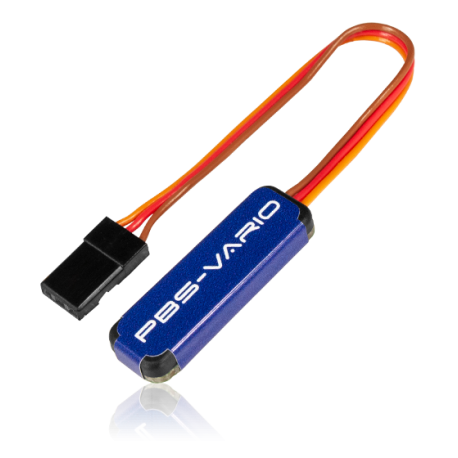

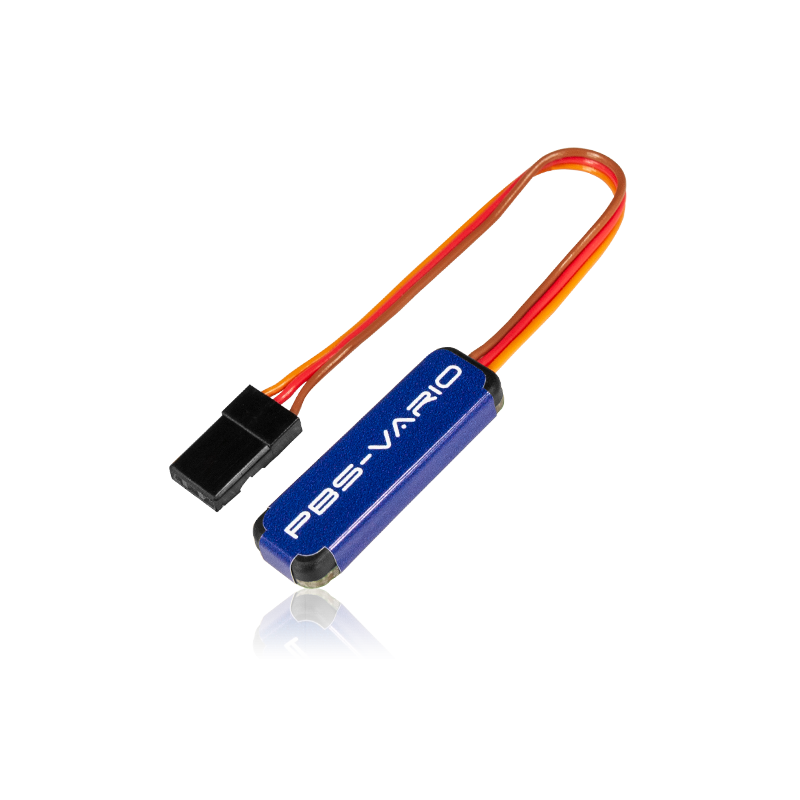

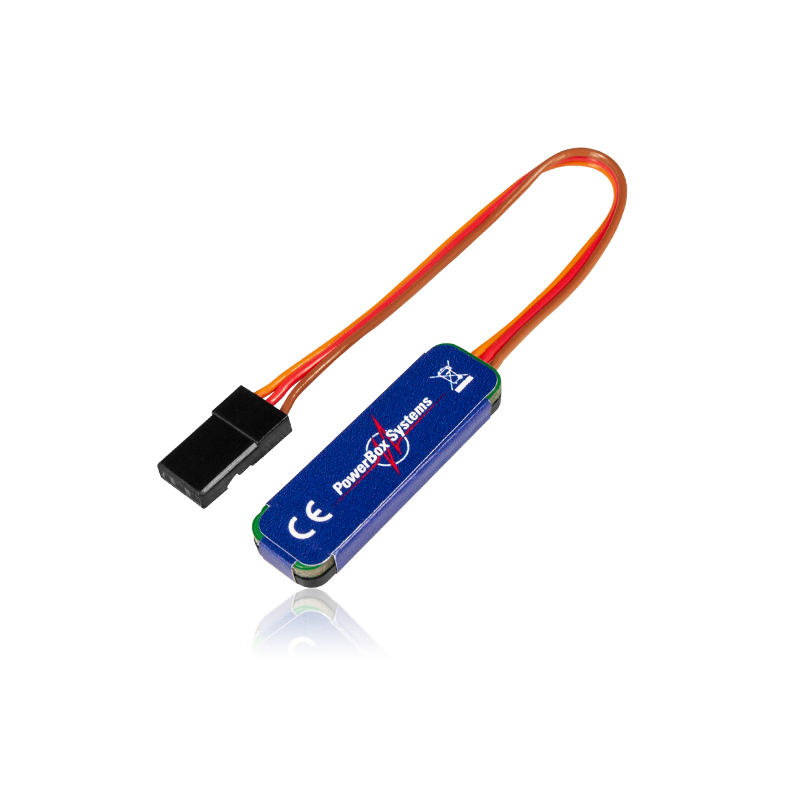

PowerBox - PBS-Vario
6625
New product
The PBS-Vario is an extremely precise climb rate and altitude sensor for use with the PowerBox CORE, but it is also suitable for other telemetry systems.
- Write a review
By buying this product you can collect up to 6 loyalty points.
The PBS-Vario is based on the latest generation of MEMS pressure sensor, and is capable of accurately measuring differences in height of 10 cm. A digital filter developed in-house by PowerBox-Systems ensures that the measured values are completely devoid of noise and distortion; both these features are important requirements if a vario function is to work accurately. In addition to the climb rate in m/s, the PBS-Vario measures the relative altitude (from the launch point) with a resolution of 0.1m, and the temperature at the sensor.
The PBS-Vario is extremely compact - just 33 x 10 x 4 mm in size - which allows the unit to find a home even in the smallest gliders.
The PBS-Vario can be used with the PowerBox CORE, Jeti EXBUS and Futaba S.BUS2
Features
- Climb rate measurement with 0.1 m/s accuracy
- Altitude measurement with 0.1 m accuracy
- Temperature measurement
- Compact dimensions
- Low weight
- Supports the following telemetry systems: PowerBox P²BUS, Jeti EX-Bus, Futaba S.BUS2
Technical Data
| Operating voltage | 4.0V - 9.0V |
| Current drain Power-on state | max. 20mA |
| Supported RC systems | PowerBox, Jeti, Futaba |
| Dimensions | 33 x 10 x 4 mm |
| Weight | 6g |
| Temperature range | -30°C to +85°C |
