Jeti Duplex DS12 + R9 - Carbon RED Special Edition 2023
JDEX-TDS12-CLXR23
New product
New pecial editon DS-12 red has plastic precise gimbale and plastic buttons from the standard DS12 transmittters. It also has a carbon front panel. Will be delivered as standard in a DUPLEX allu case and with an R9 receiver
By buying this product you can collect up to 75 loyalty points.
Channels
8
12
16
DUPLEX Transmission
Yes
Screen size
3.5" TFT
Available from 02/23/2023
DS-12
Purposefully placed at the top of the transmitter, the 3.5" sunlight readable color LCD with its wide viewing angle offers nearly perfect visibility in just about any lighting condition. Thanks to its high resolution display and use of a relatively large number of graphic images it was possible to create a simple and intuitive setup procedure for displaying telemetric data.
The DUPLEX EX family of products have been equipped with an improved real-time telemetry system which can be viewed on the LCD transmitter display. The transmitter allows the setup of voice notifications, both preinstalled and user created, which can be related to telemetric values, user set alarms, or signals which have been assigned to conditions of various control elements.
The DS-12 offers concept of individual feature setup based upon the requirements of each customer. The transmitter is available in a basic configuration that will meet the needs of most users for most model
types. For individual setting of the transmitter there is a configurator available at swshop.jetimodel.com. After the simple registration of your transmitter it is possible to select additional features based upon your individual demands.

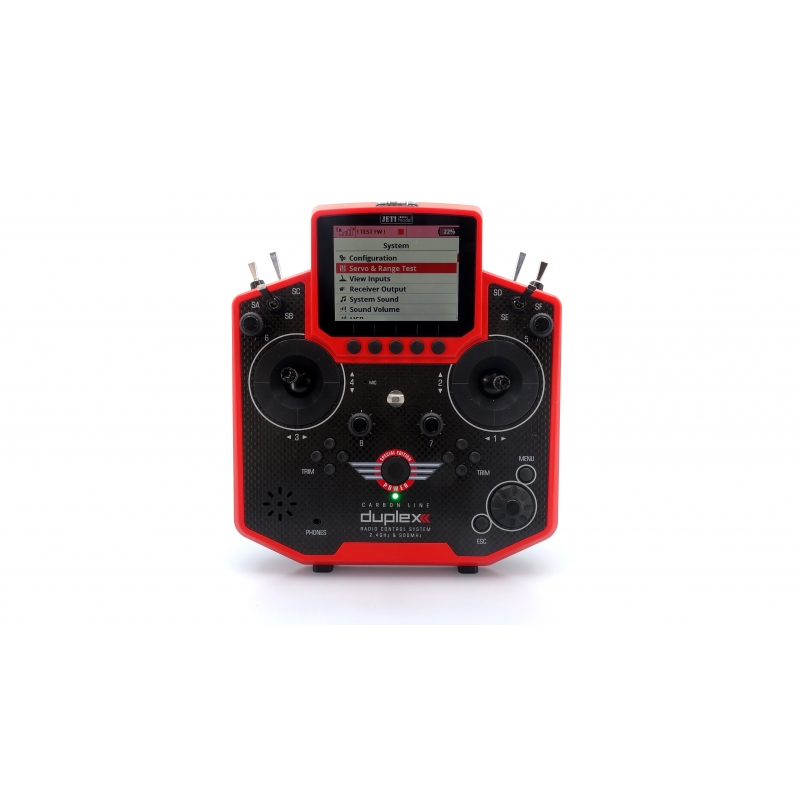

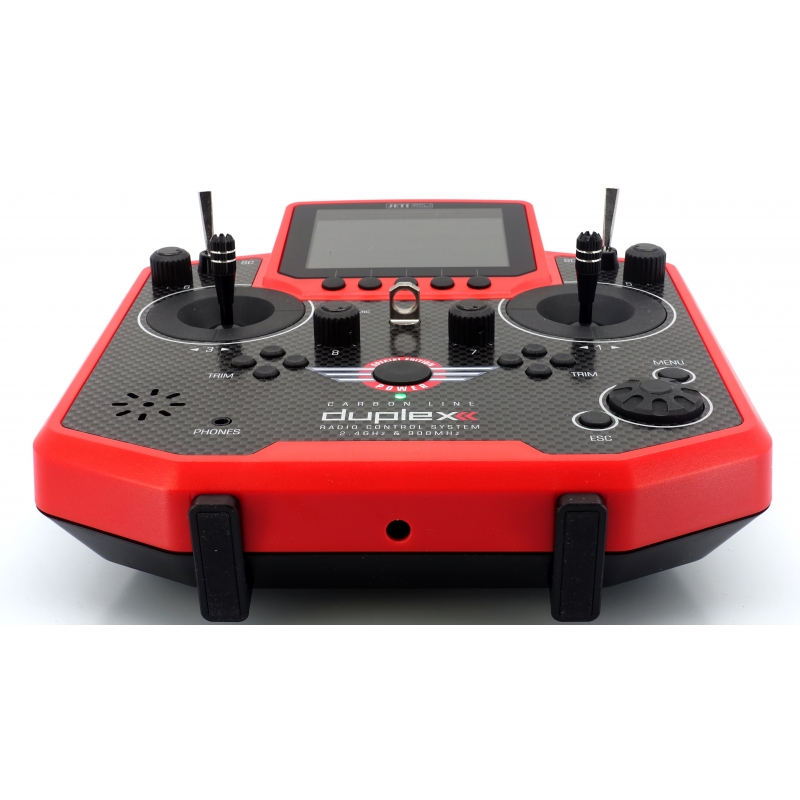

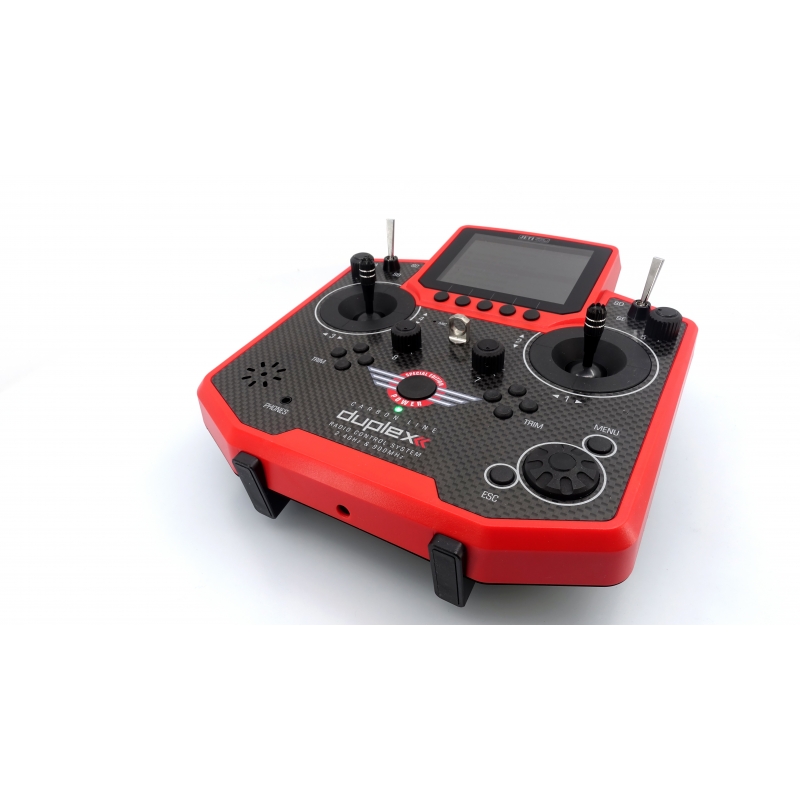

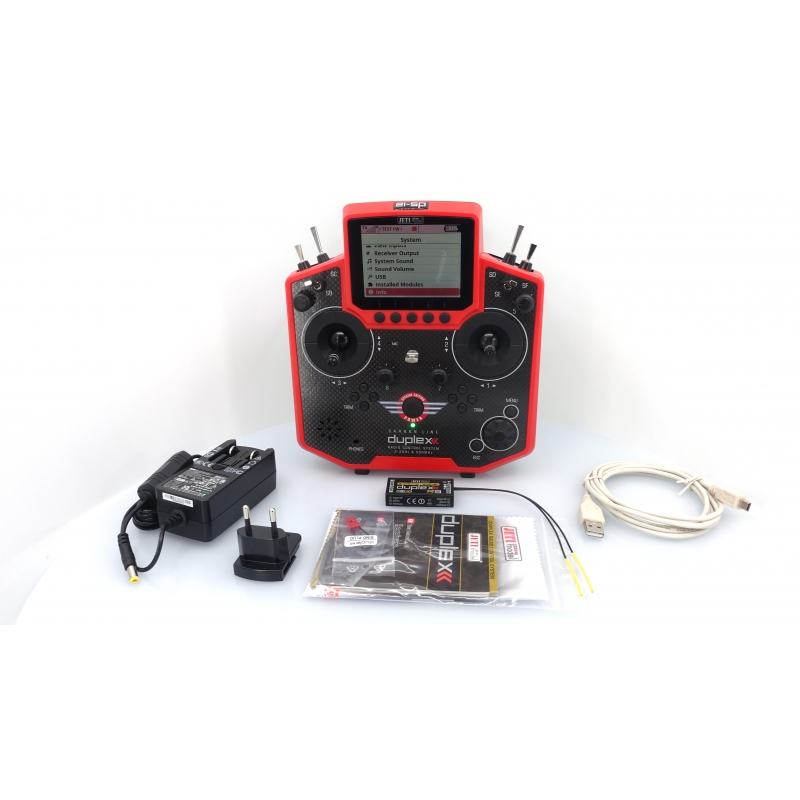

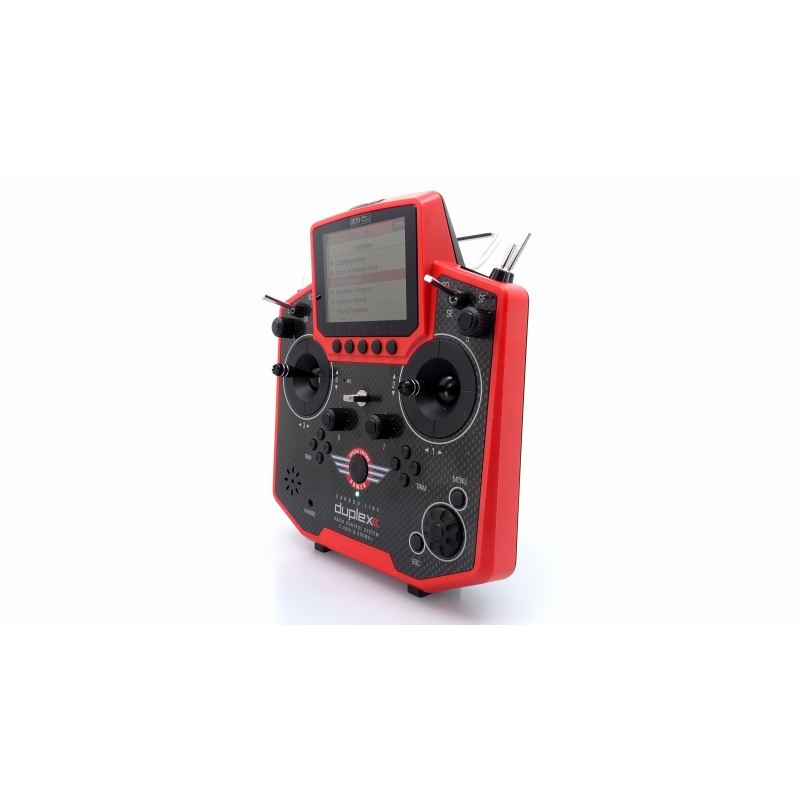

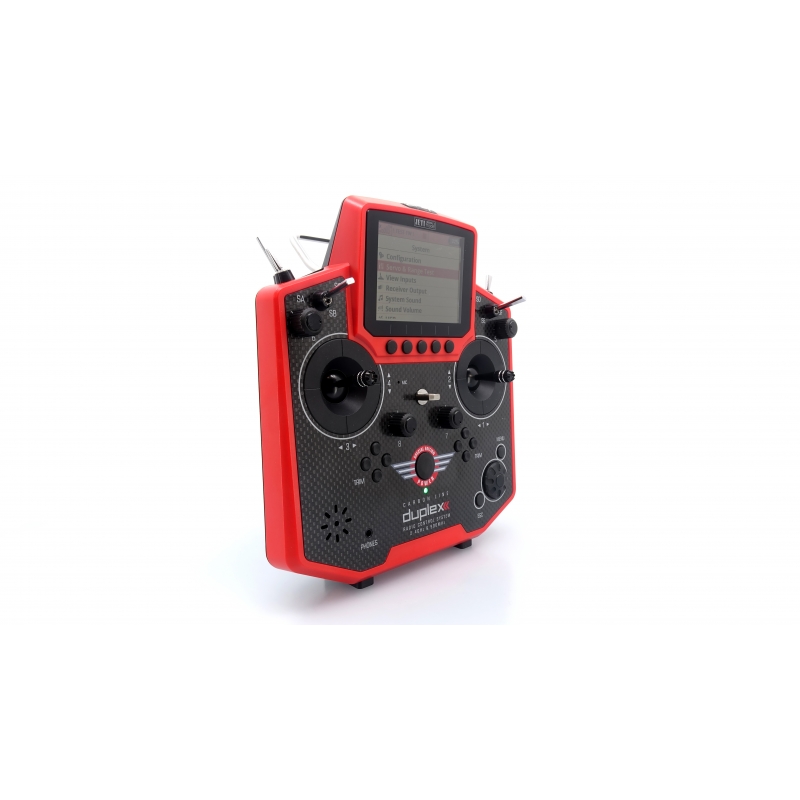

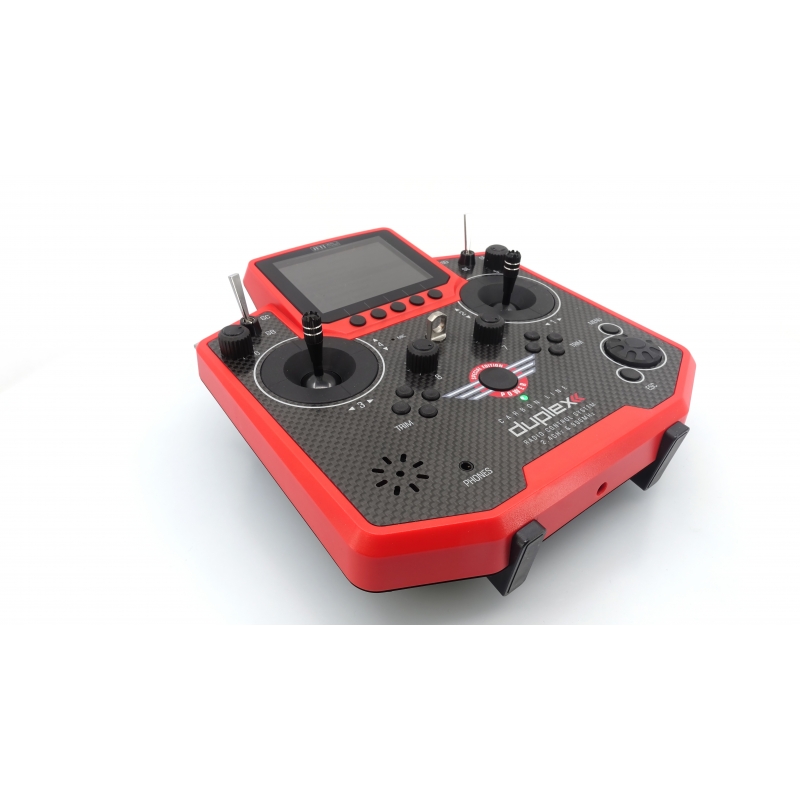

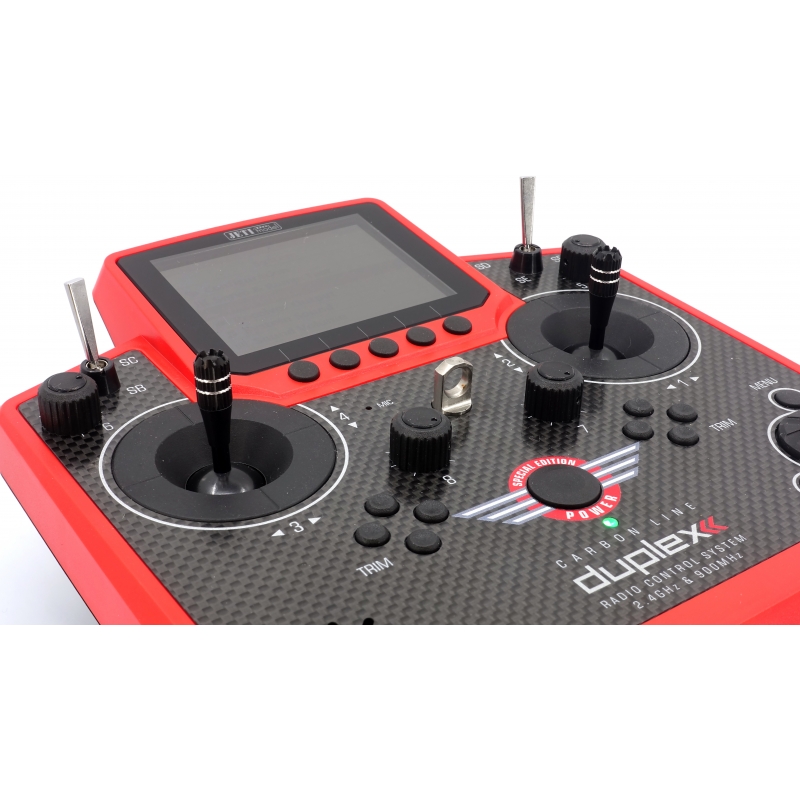

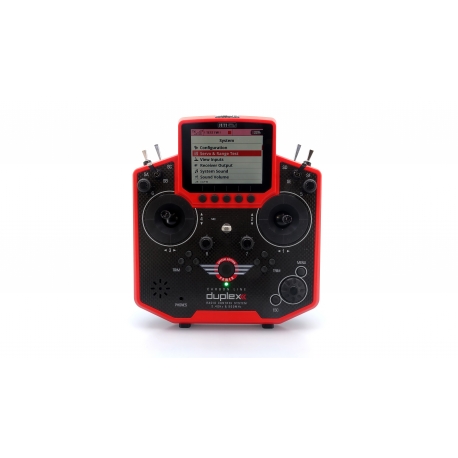

Special edition DS-12 transmitter has a carbon front panel. This transmitter is in a RED color and will be delivered as standard in a DUPLEX aluminum case and with an R9 receiver.
Changes of the special edition:
- DS-12 transmitter in RED color
- Carbon front panel

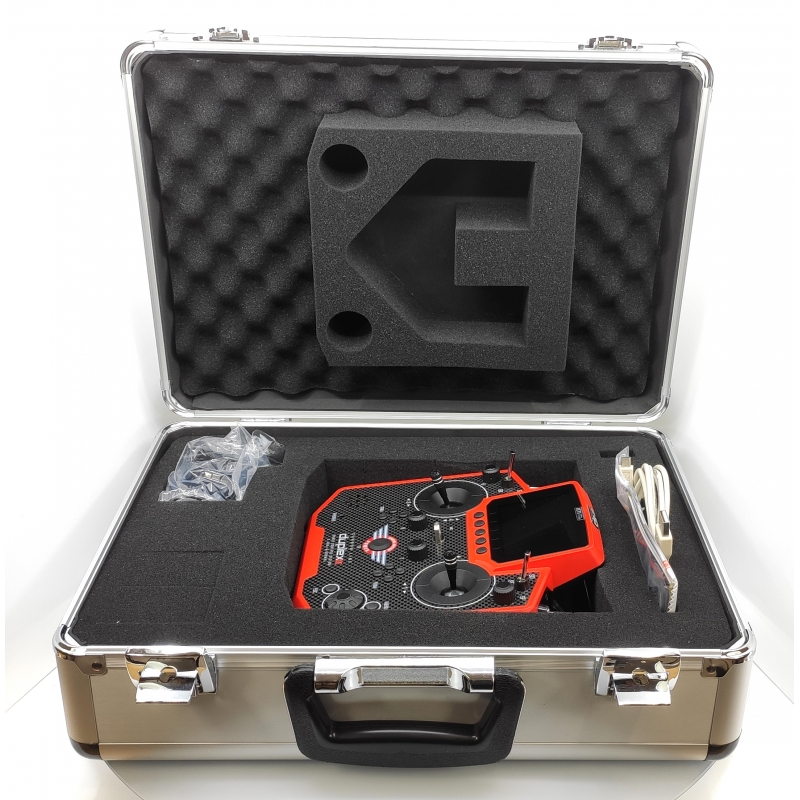

- DUPLEX aluminum case
- R9 receiver
| Weight [g] | 700 |
|---|---|
| Transmitter Aluminum Case | Yes |
| Transmitter Battery Pack (mAh) | 6200 |
| Backlit LCD | 3.5 |
| Memory, SD Card | 8GB |
| Gimbal Hall Sensors/Vibration | Yes / Yes (not included with the joystick) |
| Stick Resolution | 4096 |
| Transmitter Frame | Plastic / Carbon Front Panel |
| Gimbals & Buttons | plastic precise gimbale |
| Number of antenas 2.4GHz/900MHz | 2 / 1 |
| RF modules 2.4GHz/900MHz | 1 / 1 (next generation) 863 - 870 MHz (EU), 902 - 928 MHz (US) |
| Control Inputs (Stick/Switch/Knob) | 14 |
| Dimensions [mm] | 194 x 215 x 55 |
| Output Power - 2.4GHz [mW] | 100 |
| Operational temperature [°C] | -10 to +60 |
| Channels | 8 (up to 16) |
| Control Inputs (Stick/Switch/Knob) | 14 |
| Backup Module 900MHz | (upgradable) |
| Flight Modes | 3 (up to 6) |
| Free Mixes | 5 (up to 20) |
| Data Graphs | (upgradable) |
| Audio Player | (upgradable) |
| Logical Switches | 0 (up to 16) |
| Number of Remote Commands | 0 (up to 16) |
| Servo Sequencer | 0 (up to 6) |
| Timers | 3 (up to 10) |
| Displayed Telemetry Values | 10 (up to 40) |
| Sound on Events | 5 (up to 20) |
| Alarms | 10 (up to 40) |
| Vibration Alarms | (upgradable) |
| Voice Output | (upgradable) |
| MP3 | Active |
| Microphone | Active |
| Gyro Settings | 1 (up to 3) |
| Servo Balancer | (upgradable) |
| Function Curves | (upgradable) |
| Throttle Limiter (heli) | (upgradable) |
| Variometer | (upgradable) |
| Flight Mode Trim | Active |
| Data Stream Logging | 80 |
| Telemetry Controls | 0 (up to 16) |
| Voice Commands | 0 (up to 15) |
| Lua Apps | 10 |
| Ditex Servo Telemetry | Active |
| Double Path | (upgradable) |
| Accelerometer | (upgradable) |
In order to preserve the manufacturer's warranty, the change of mode / addition of stick switches and other customizations of the radio must be carried out by an approved professional from the Jeti-France network. Contact us for more information before making your purchase.
