Power-Ion accumulators are battery packs suitable to power the receiver and servos in the model.
The main advantages of Power-Ion accumulators include high mechanical resistance due to their metal case. The accumulators are also characterised by a long cycle life. No balancer is needed for their operation and in case the current is higher than 150A, built in short circuit protection is activated. There is also built in overcharge protection which is activated if the charging voltage is higher than 5V per cell.

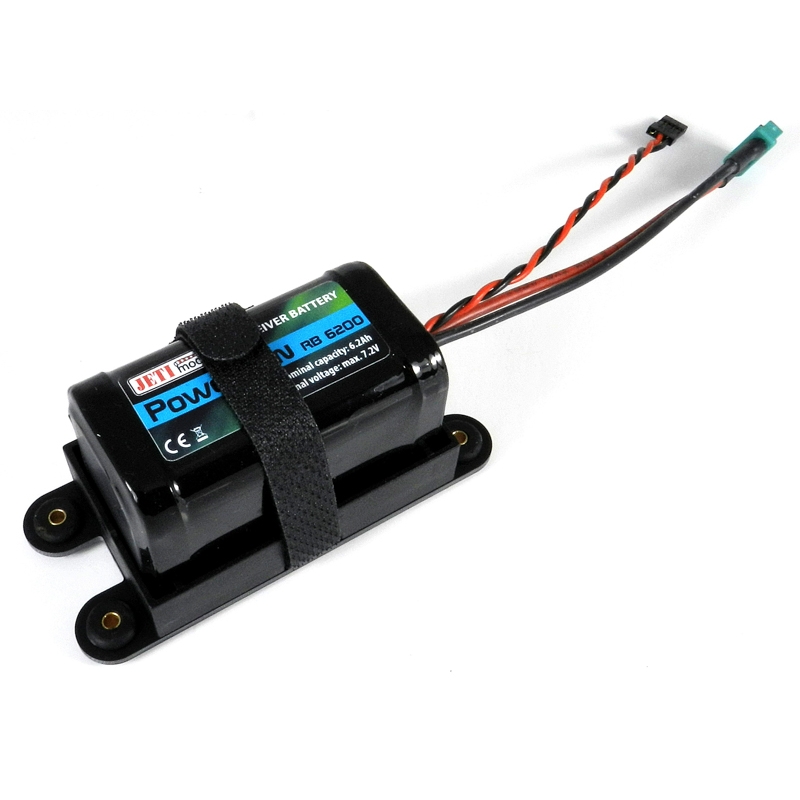

The Lithium Ion cells will work in very low or very high temperatures (-10 - +60°C). Each pack is provided with one two-wire cable with the JR connector for charging and with one two-wire cable with the MPX connector for connection to the model. Both cables are of the same length.

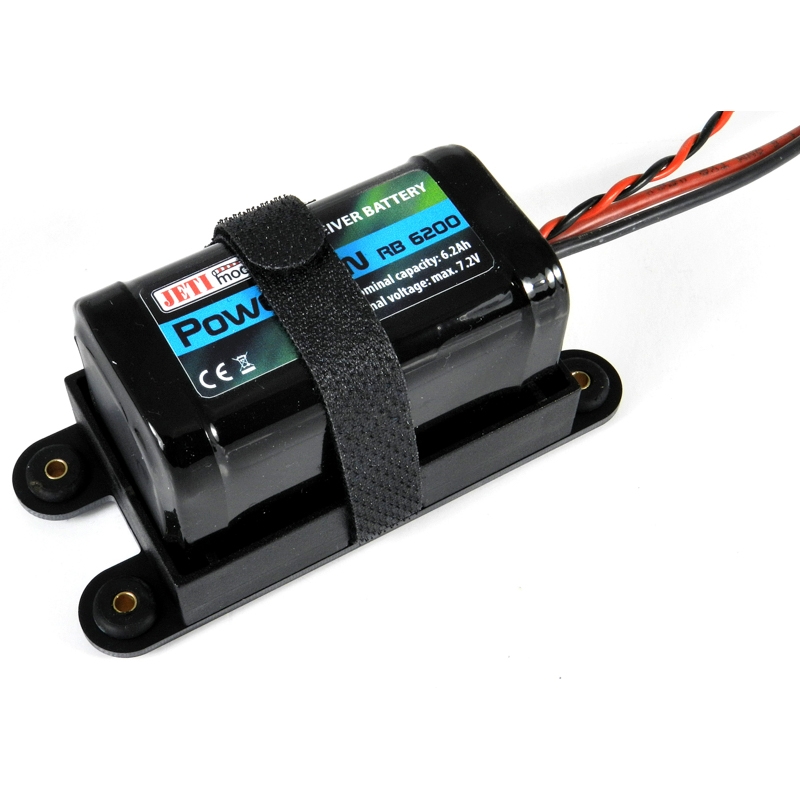

The packs are supplied in a plastic holder and are fastened to it with a Velcro strap. The case itself is screwed to a model using anti-vibration rubber grommets, please note the correct placing of the brass washer. Its wider part should be in contact with the assembly boardto which the battery case is mounted to avoid extruding the material.
|Nominal Capacity [mAh]:||6200|
|Nominal Voltage [V]:||7.2|
|Charging End Voltage [V]:||8.4|
|Length of the leads [mm]:||135|
|Weight [gr]:||230 (avec boitier) / 204 (sans boitier)|
|Dimensions [mm]:||104x47x50 (avec boitier) / 70x39x40 (sans boitier)|
|Duration Current max [A]:||40|
|Peak Current max [A]:||80|
|Charge max [A] (avec connecteur MPX):||8|
