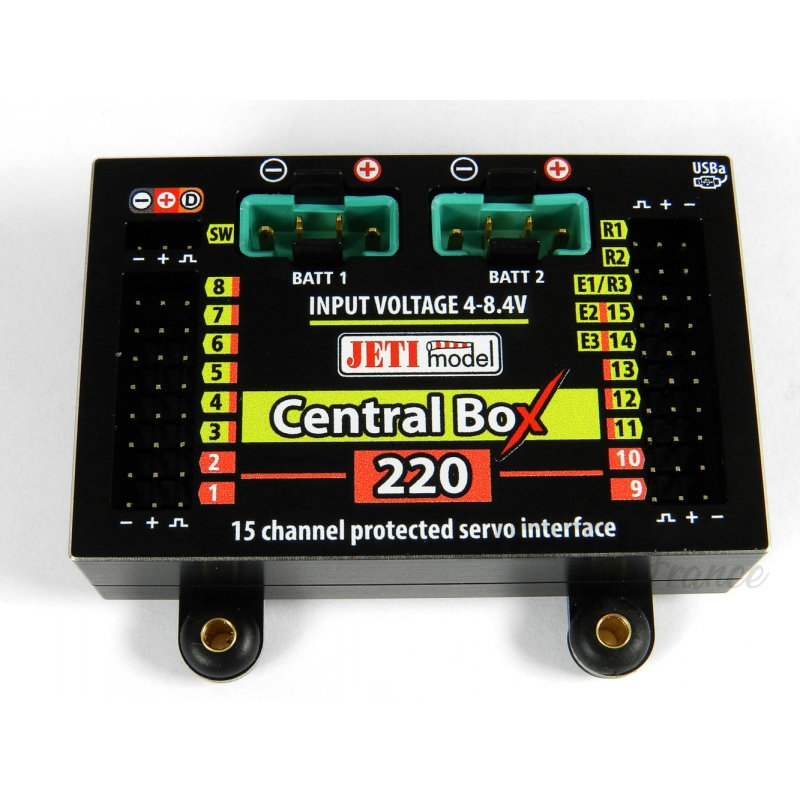

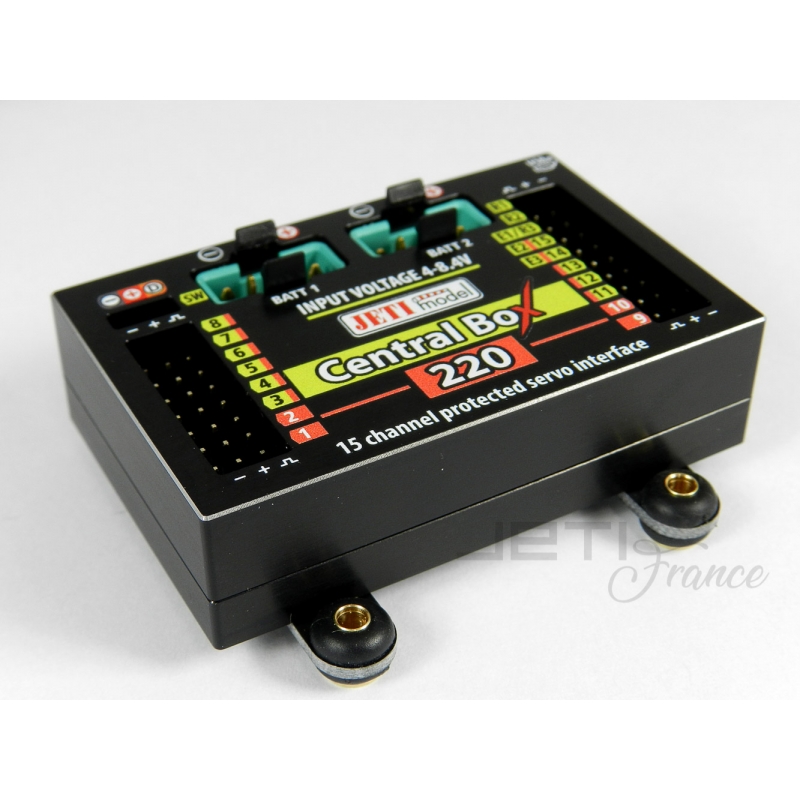

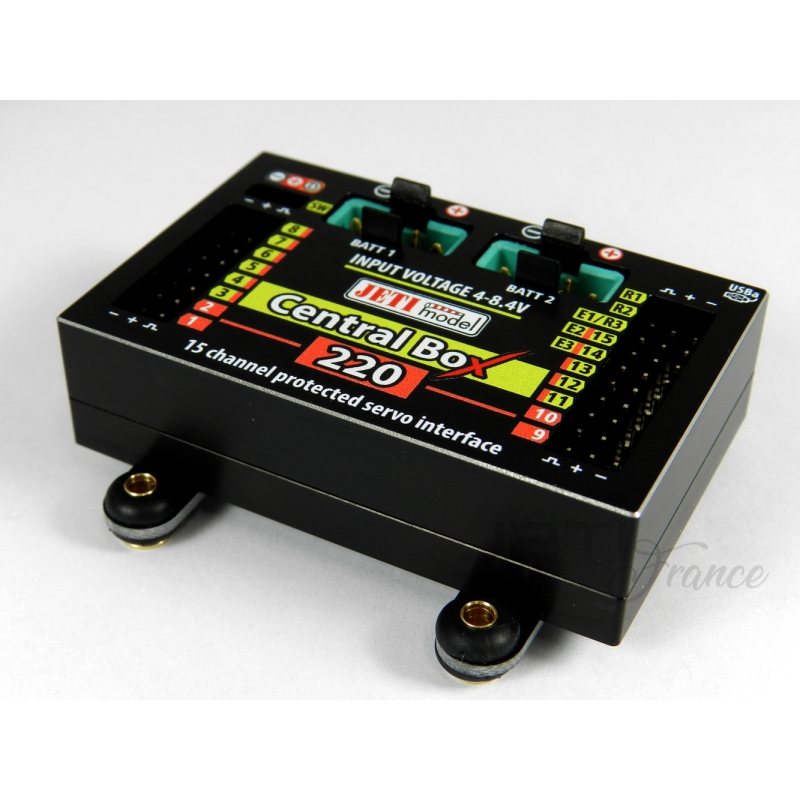

The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety.
By buying this product you can collect up to 20 loyalty points.
The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box 220 have a unique design that provides overload protection at each servo output. The Central Box can manage up to two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial (PPM, EX Bus, S.BUS, UDI) output can be connected to the Central Box 220. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.
Central Box 220 has overload protection on each channel
|Sustained current [A]||20|
|Number of channels||15|
|Operational temperature [°C]||-20 ... 75|
|Compatible protocols||EX Bus, PPM, S.Bus, UDI|
|Supply Voltage [V]||4 ... 8.4|
|Satellite receiver support||Yes|
|Idle current [µA]||240|
|Number of battery inputs||2|
|Peak current (2s) [A]||90|
