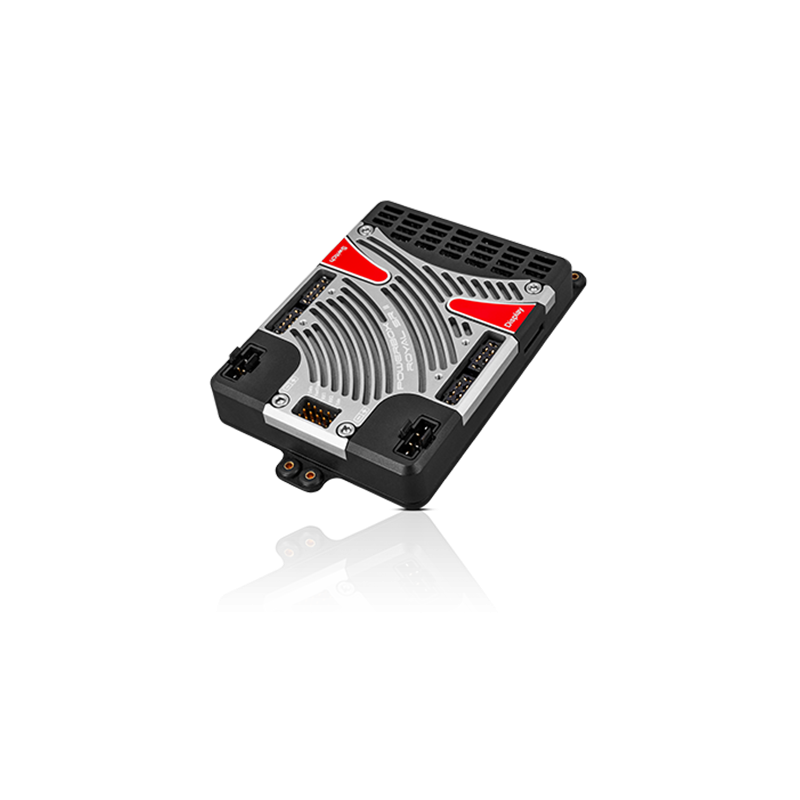

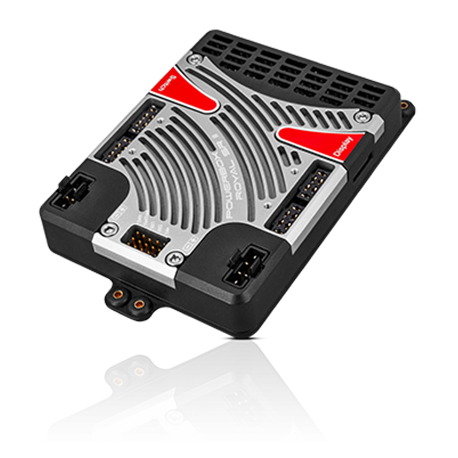

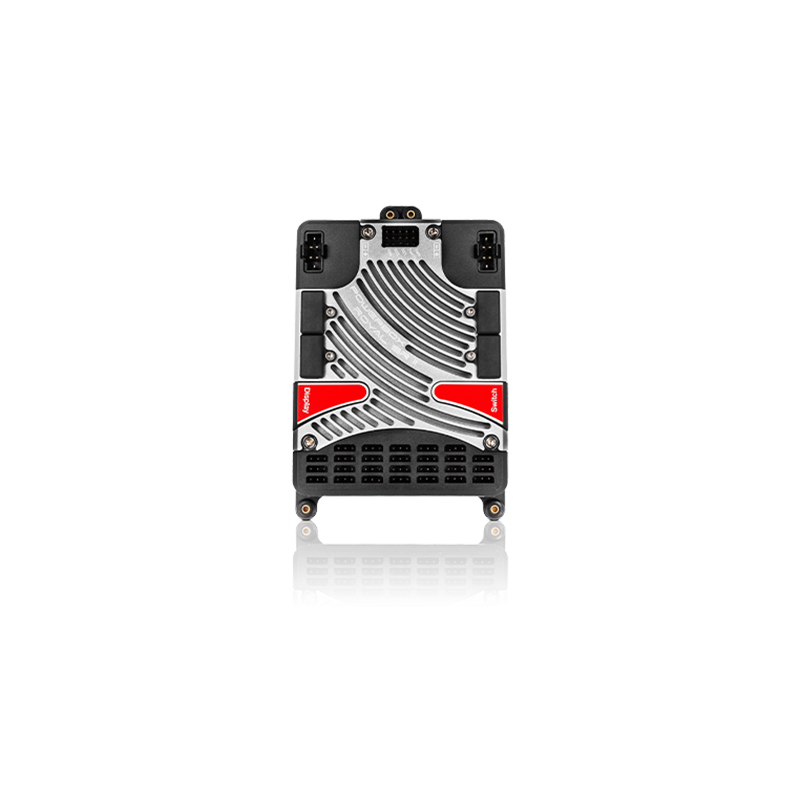

Powerbox - Royal SR2

4750

New product

The PowerBox Royal SR2 - professional airborne electronics for the ambitious pilot!

More details

By buying this product you can collect up to 59 loyalty points.


Currently out of stock

599,00 €

Price excluding taxes : 499,17 €
VAT : 99,83 €

Enter your email to be notified when the product is available again:

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

Features

  • 26 channels
  • High-performance battery backer with high continuous load capacity
  • Four P²-BUS outputs with full telemetry support for servos
  • 2.4" TFT screen, legible in sunlight
  • Bi-lingual menu system
  • Consistent duplication of all power electronics
  • Redundant electronic switch
  • Servo matching for all 26 outputs
  • Auto matching function
  • Two independent door sequencers with Setup Assistant
  • The latest integrated iGyro technology, using the iGyro SAT as gyro sensor
  • Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
  • Individual gain control for all twelve gyro outputs
  • Special regulatory algorithm for fixed-wing models
  • System detects all transmitter mixers
  • Four selectable output voltages: 6.0 V, 7.4 V, 7.8 V or unregulated
  • Two different voltage levels, separately adjustable for left and right side Graphic menu diagrams ensure ultra-simple programming
  • Fast basic setup procedure using the sophisticated Assistant
  • Optional GPS III for speed-dependent gyro compensation
  • Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR DMSS and Graupner HoTT
  • Transmission of battery, receiver and GPS data
  • Virtually all features can be controlled from PowerBox and Jeti transmitters
  • Selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
  • Servo feedback current suppression
  • Latest 32-bit micro-processor for precise, high-speed signal processing
  • High-performance machined heat-sink for optimised heat diffusion
  • Machined, anodised aluminium switch and screen case
  • Compact dimension

Technical Data

Operating voltage 4.0V - 9.0V
Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state 300mA (with TFT)
Current drain Standby 60µA
Maximum load current Peak 4 x 20A
Drop-out voltage 0.3V
Output voltage 6.0V, 7.4V, 7.8V, unregulated
Signal input serial
Supported RC systems PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupne
Receiver redundancy SRS
Channels 26
Servo sockets 26
Programmable servo outputs 26
Servo signal resolution 0.5µs
Signal frame rate 10ms, 12ms, 14ms, 16ms, 18ms
Gyro regulation Heading- and Normalmode
Gyro sensor type extern iGyro SAT
Number of sensor axes 12
Screen TFT 320x240 Pixel
Integral door sequencer 2x
Supported telemetry systems P²BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott, X.BUS
Dimensions 136 x 82 x 18 mm
Weight 162g
Weight Sensor Switch 15g
Weight of LCD screen 34g
Temperature range -30°C to +105°C
