Jeti Duplex - R7 nano

JDEX-R7N

New product

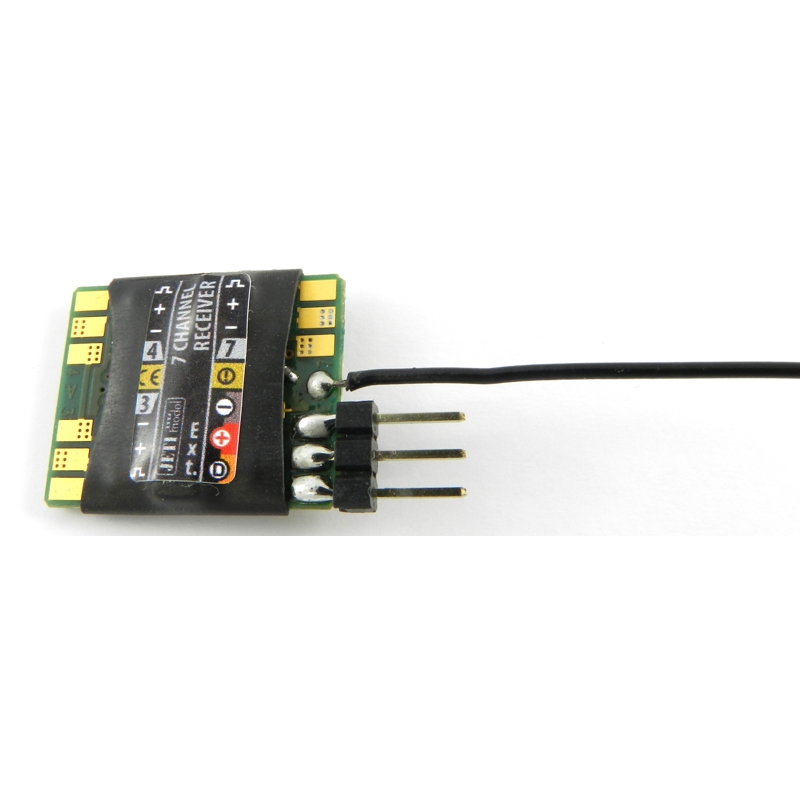

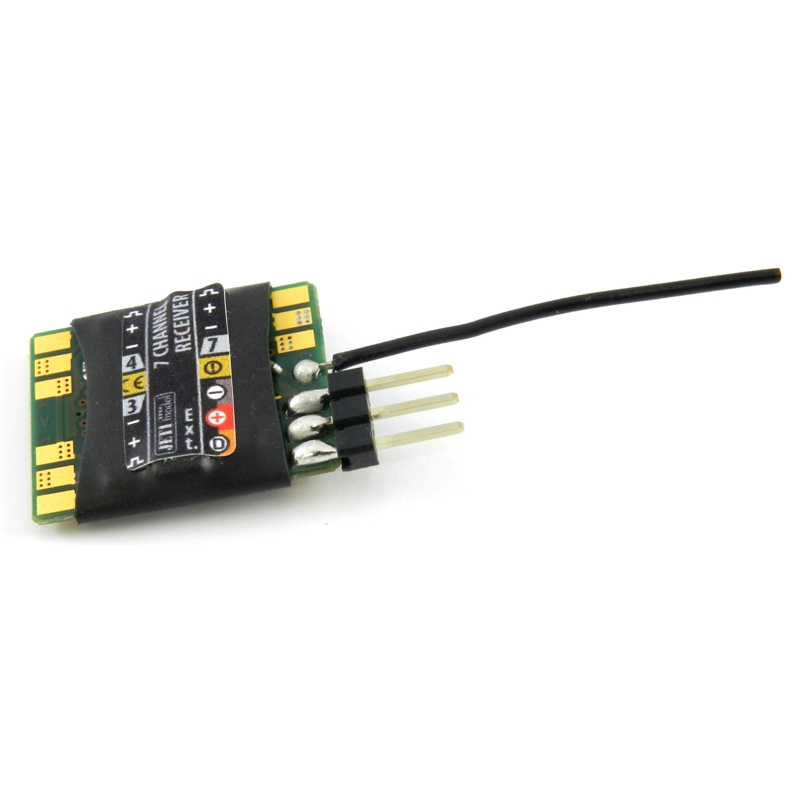

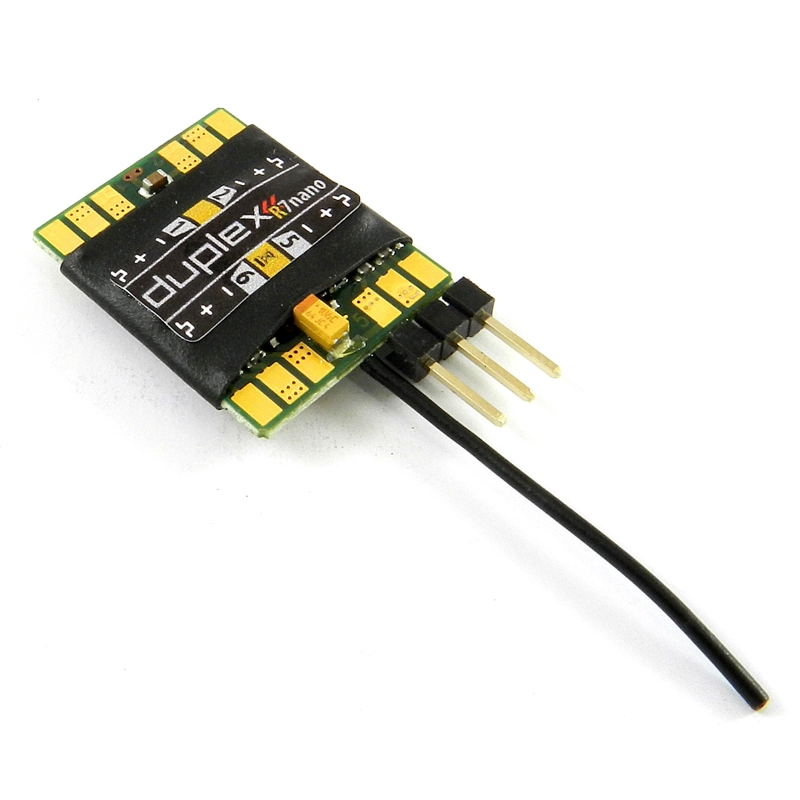

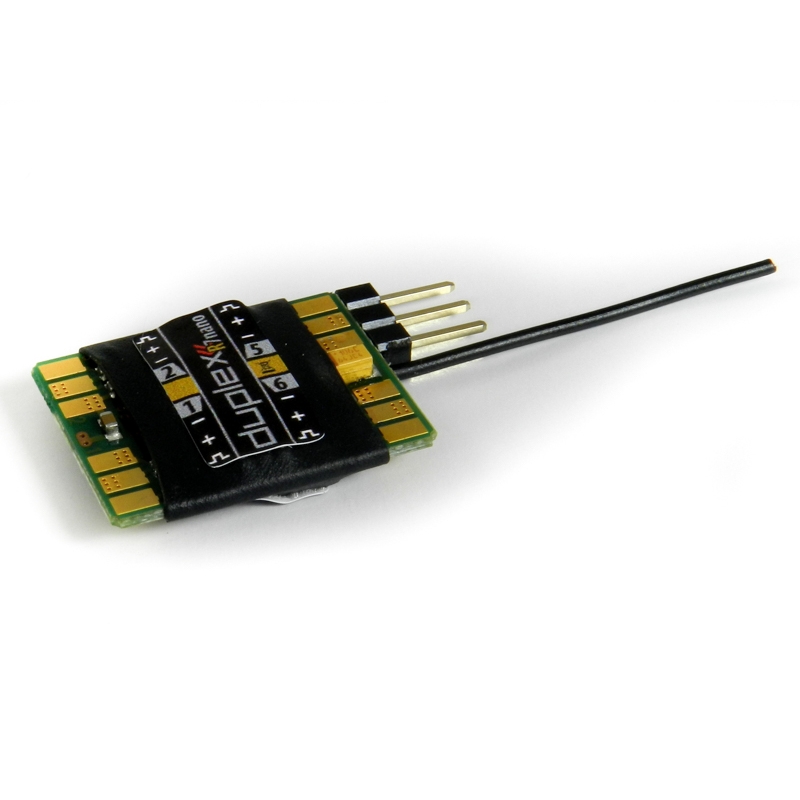

Receiver DUPLEX R7 nano EX combines many servo outputs together with small dimensions. R7 nano EX is designed for easy use in small models. The receiver incorporates a single 32mm antenna.

More details

By buying this product you can collect up to 7 loyalty points.


In stock

71,90 €

Price excluding taxes : 59,92 €
VAT : 11,98 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

DUPLEX R7 nano EX

Receiver DUPLEX R7 nano EX combines many servo outputs together with small dimensions. R7 nano EX is designed for easy use in small models. The receiver incorporates a single 32mm antenna.

R7 nano is the lightest receiver of the Duplex system, its weight is only 1 gram (2g in shrink tube).

The DUPLEX EX line of receivers is intended for operation with DUPLEX Tx transmitter modules in the 2,4GHz band and are fully compatible with the previous version of the DUPLEX. Thanks to the fully digital and bidirectional communication between transmitter and receiver there arise completely new aspects in the model remote control branch. One of the most important advantages is the operation without crystal, moreover the low susceptibility towards interference, the high range up to the limit of visibility and the possibility to follow anytime the onboard state of the model and its functional parts.
An additional satellite receiver RSat2 complements the receivers R9, R10, R11, R12, R14 and R18. This receiver is a full DUPLEX system receiver offering the complete functional spectrum of the system. Instead of classical servo pulses the output of the RSat2 receiver offers a PPM signal only. This PPM signal is furtheron processed by the receivers R9, R10, R11, R12, R14, R18 or by compatible RC equipment which requires a PPM signal at the input.

DUPLEX System EX is fully compatible with the previous version of the DUPLEX.

Weight [g] 1 (2)
Dimensions [mm] 30 x 18 x 5
Number of channels 7
Telemetry Yes
Operational temperature [°C] -10 ... 85
Compatible protocols DUPLEX 2.4GHz EX, EX Bus
Antenna Length [mm] 1 x 32
Supply Voltage [V] 3,5 - 8,4
Average Current [mA] 30
Satellite receiver support No
Output Power [dBm] 6
Receiver Sensitivity [dBm] -98
