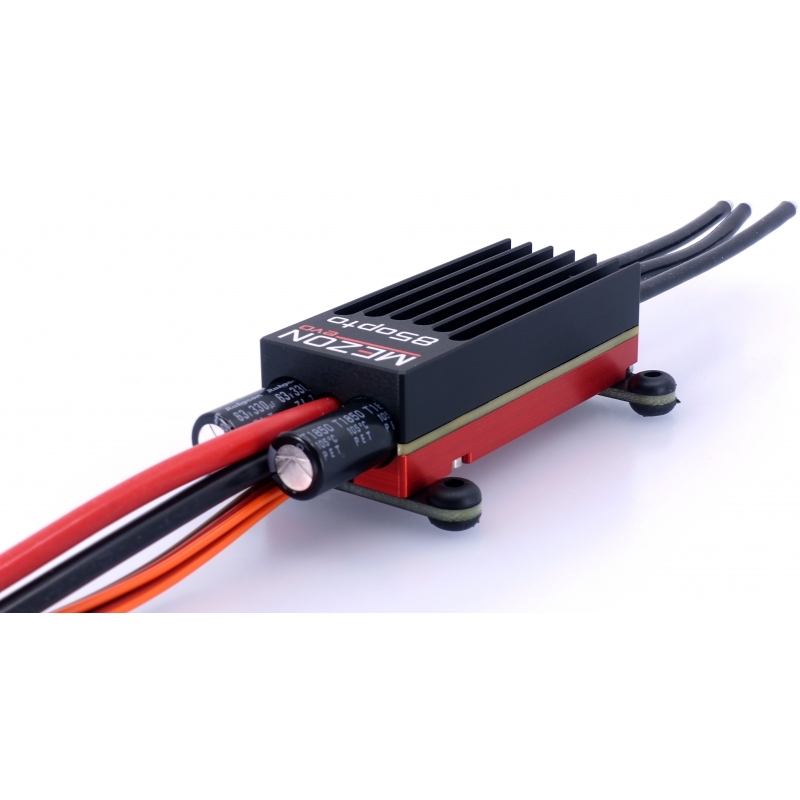

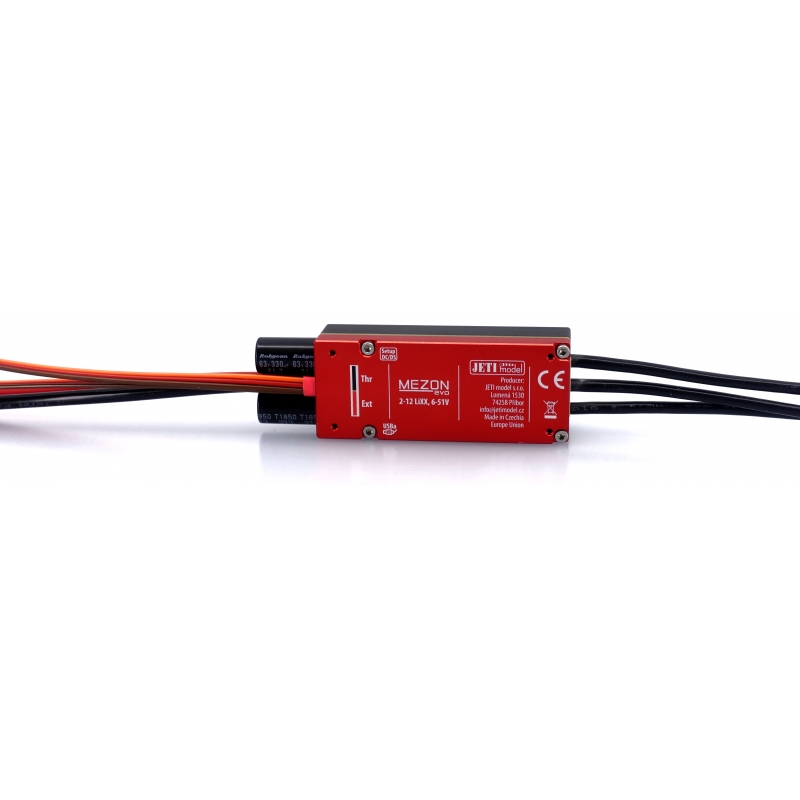

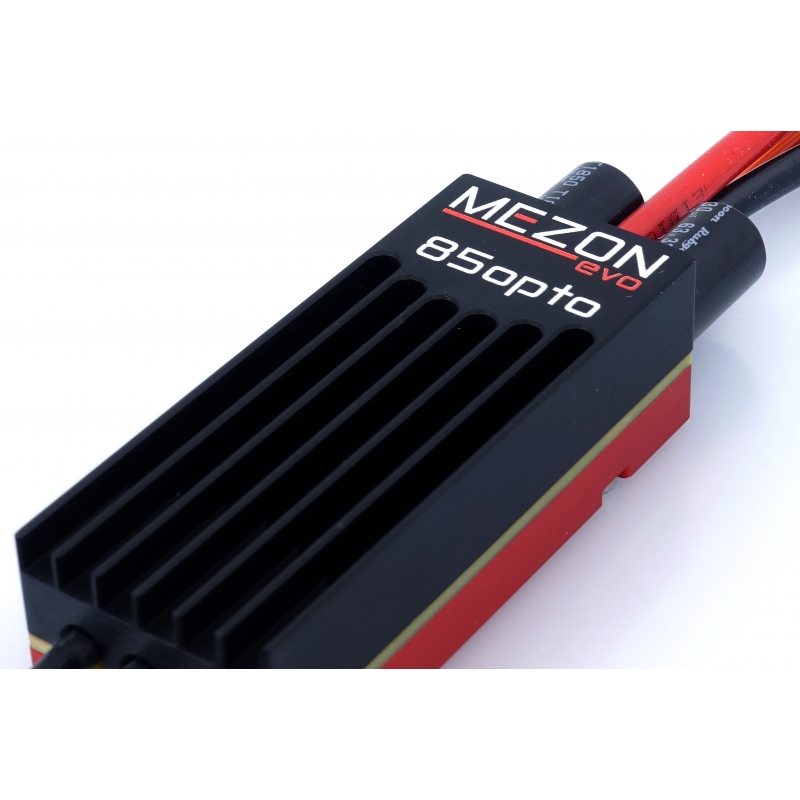

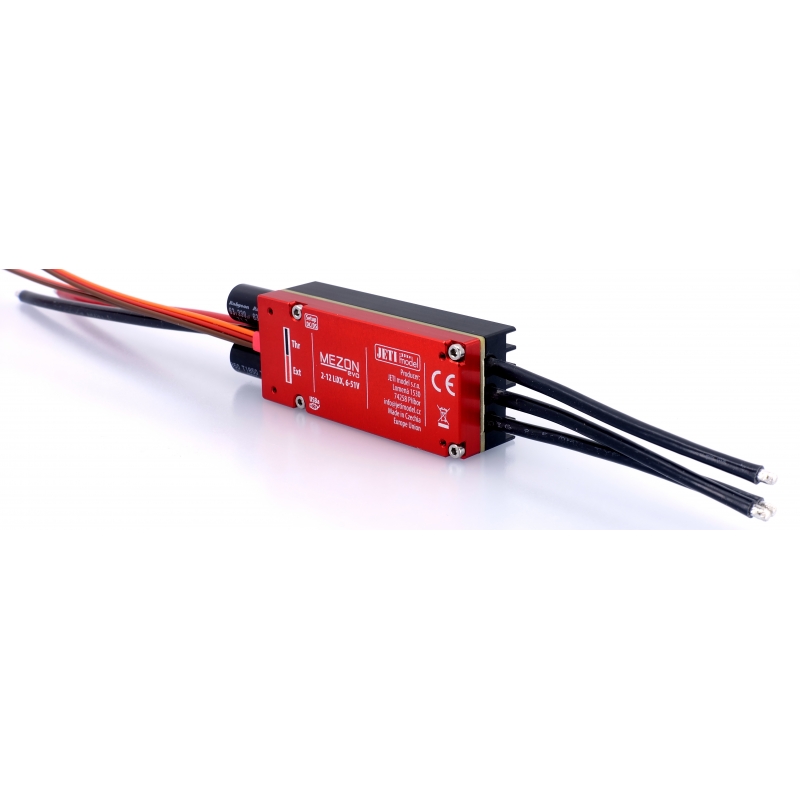

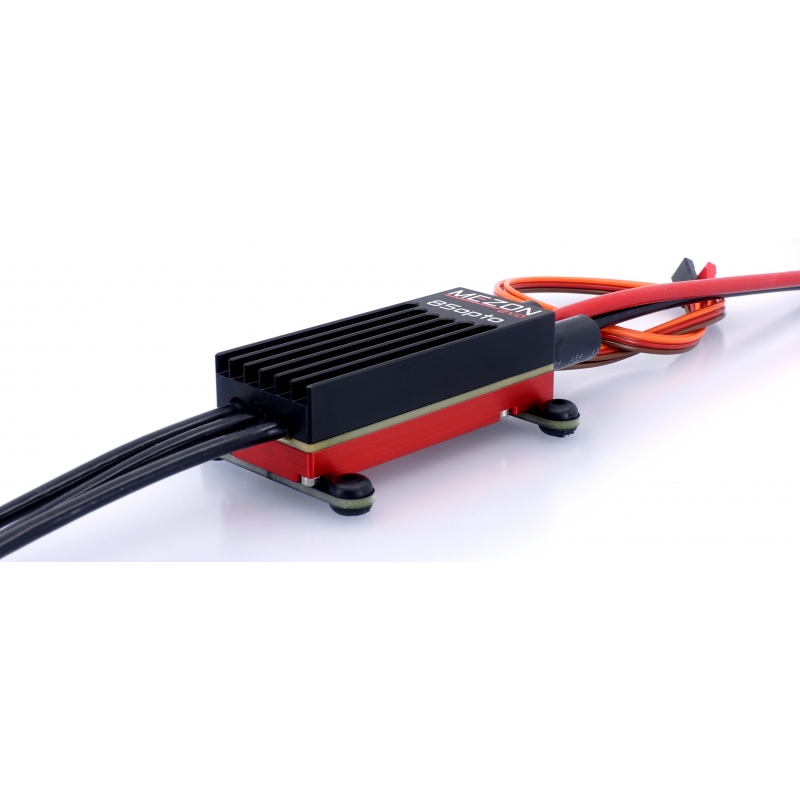

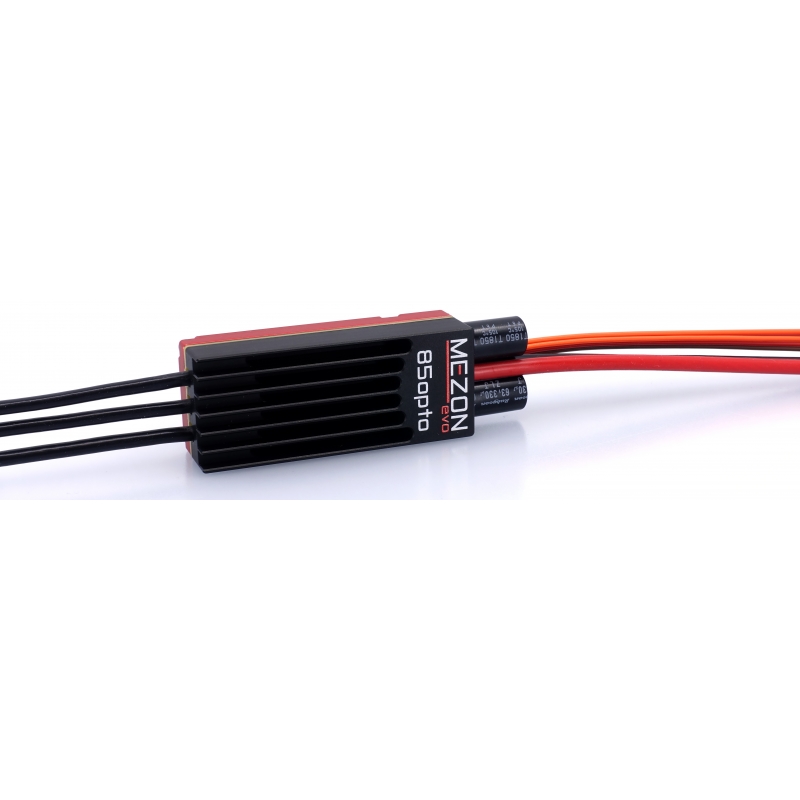

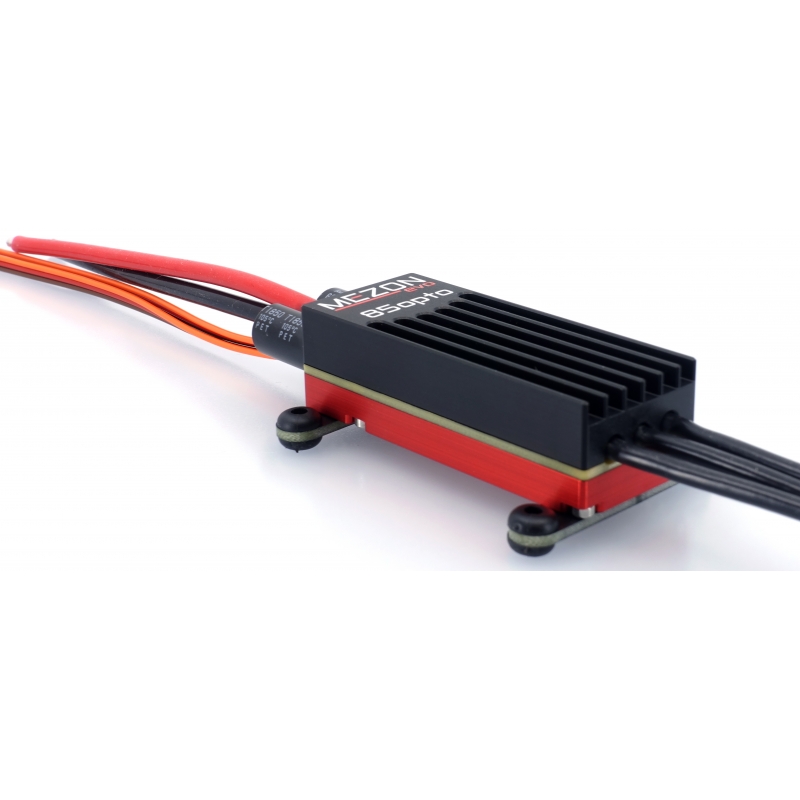

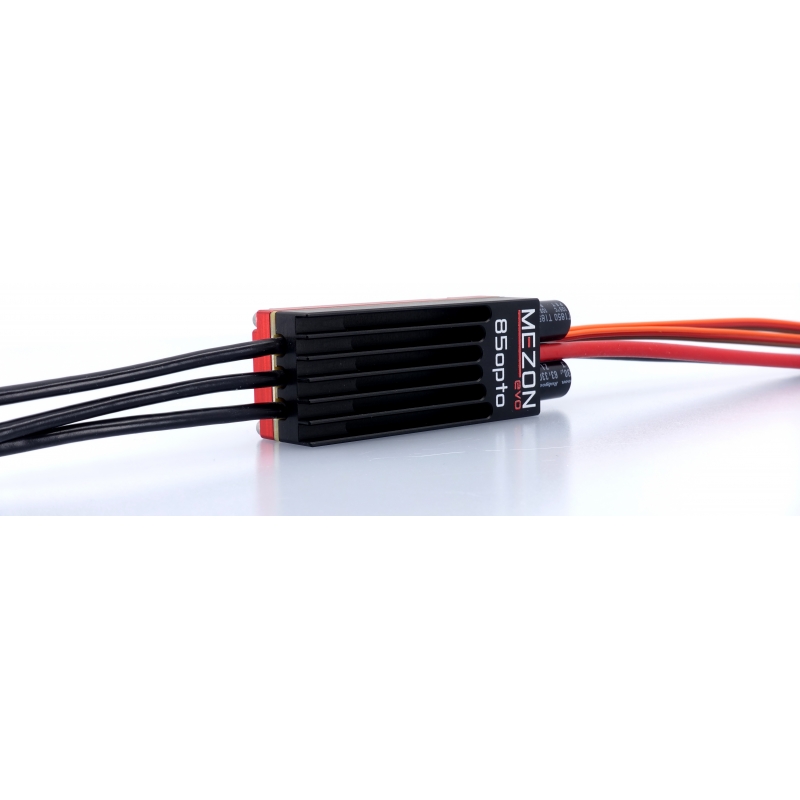

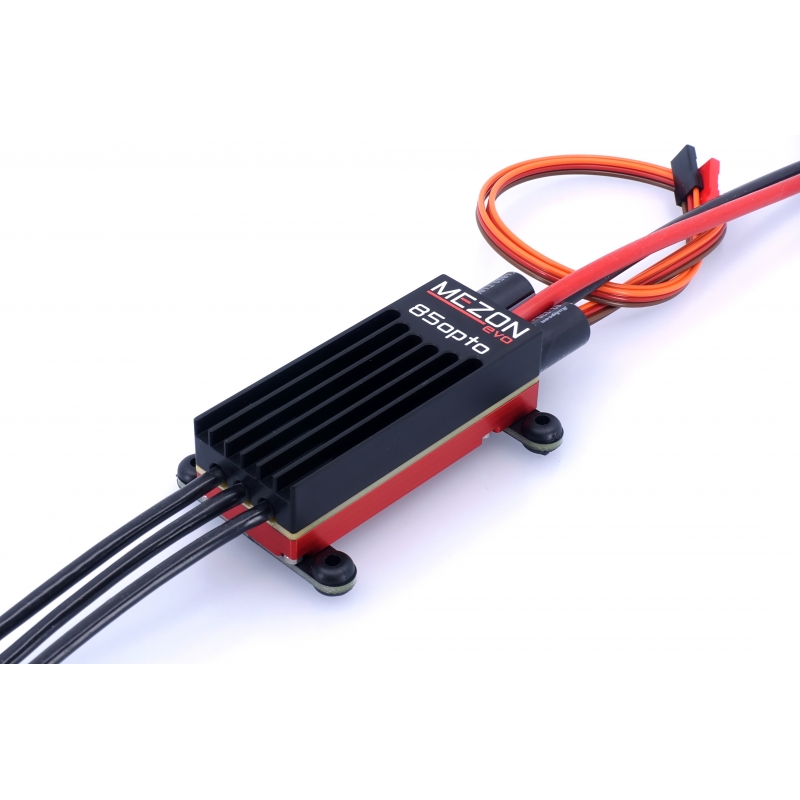

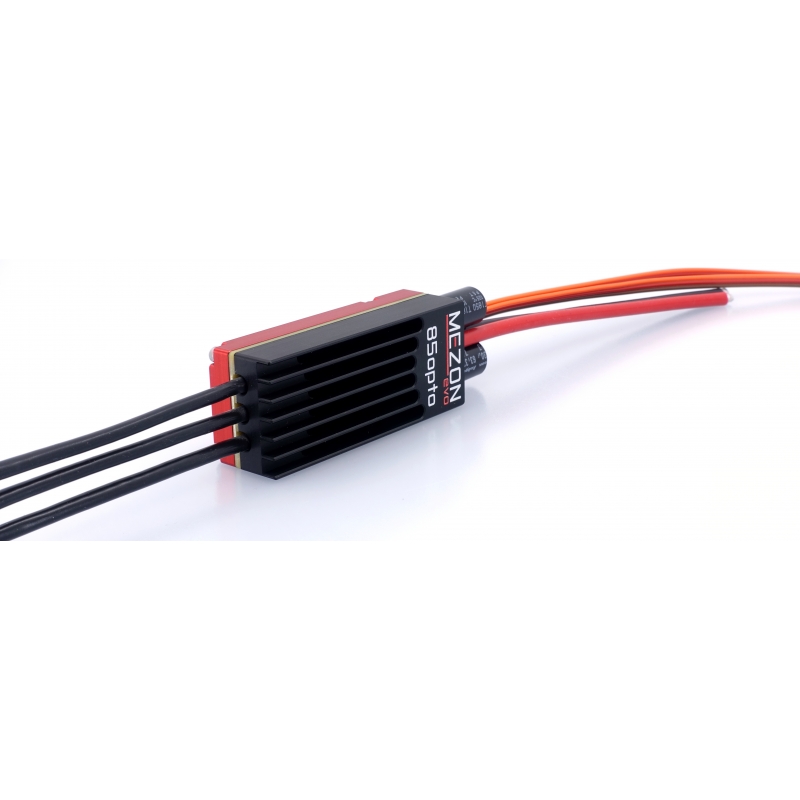

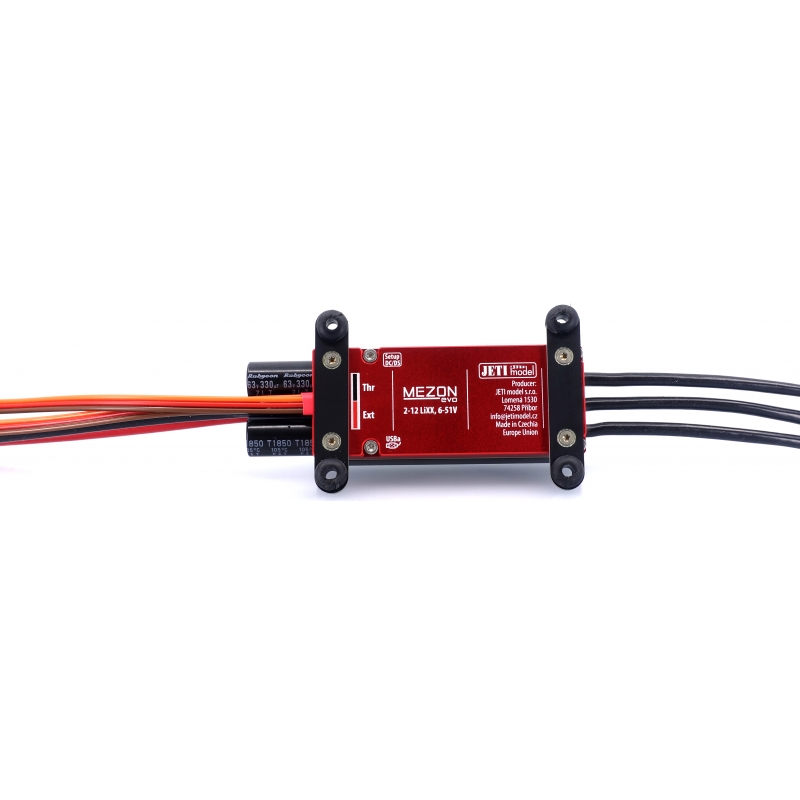

Jeti Mezon EVO 85 OPTO
JME-085-O
New product
MEZON EVO 50 BEC is a completely universal controller for models of airplanes, helicopters, ships and vehicles for users not only of JETI Duplex transmitters, but also of other RC systems.
By buying this product you can collect up to 22 loyalty points.
MEZON EVO 80 BEC controllers have an aluminum box which helps with efficient cooling.
MEZON EVO 80 BEC is a completely universal controller for models of airplanes, helicopters, ships and vehicles for users not only of JETI Duplex transmitters, but also of other RC systems.
Features
• full EX telemetry (voltage, current, capacity, revolution etc.)
• setup of device through EX Bus communication from JETI Duplex transmitter
• accurate governor and full support of helicopter models
• F3A mode for acrobatic planes
• adjustable brake with back energy recovering into accumulator
• powerful BEC with adjustable output voltage
• wide range of supply voltage 2 - 12 Lixx (max. 51V)
• bidirectional motor run is possible
• active proportional brake
• effective cooling
• compact dimensions
• user-friendly wizard for quick setup of the controller ("Quick Setup mode")
• in "Expert mode" access to all controller programming options
| Weight [g] | 120 |
|---|---|
| Dimensions [mm] | 28 x 25 x 85 |
| Sustained current [A] | 80 |
| Telemetry | Yes |
| Operational temperature [°C] | -10 to 85 |
| Supply Voltage [V] | 6 to 51 |
| Batteries LiXX | 2 to 12 |
| Voltage BEC [V] | 5 to 8.4 |
| Resistance in conducting state [mΩ] | 2 x 1.2 |
| Cable crossection (input/output) [mm²] | 4 / 2.5 |
| OPTO (optically separated radio signal from the power management) | No |
| Average Current BEC [A] | 15 |
| Peak Current BEC 1s [A] | 30 |
| Box | Aluminum |
