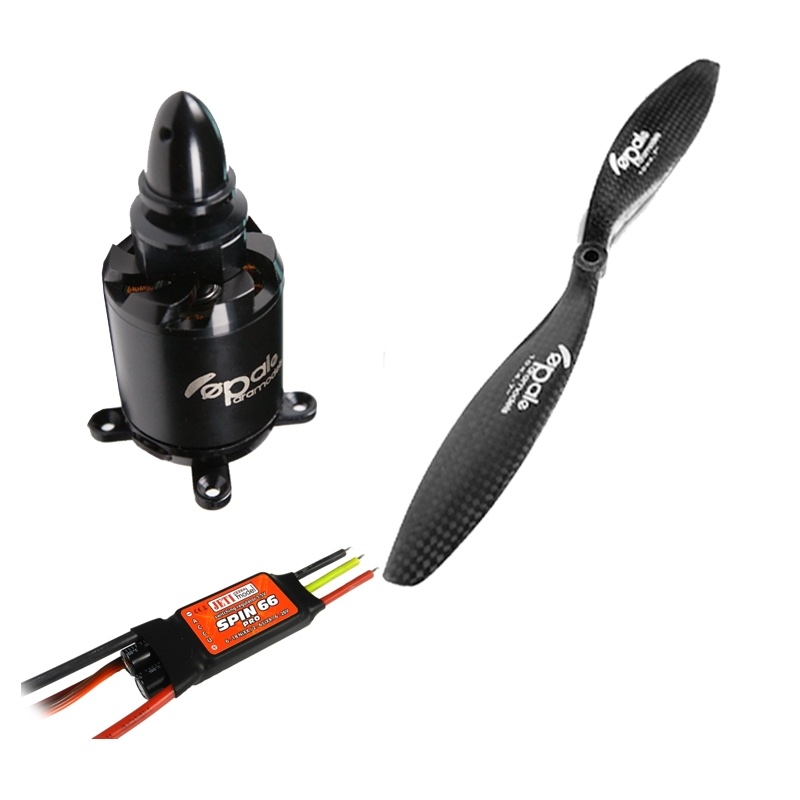

Motor kit - Backpack M2/M3/XS2 - 965W
OP15504J
New product
Opale Paramodels Motor and ESC with the Opale Carbon propeller. The Best setup for advanced pilots.
- Write a review
By buying this product you can collect up to 19 loyalty points.
Motor power
965 W
Propeller size
10 "
Motor kit - Backpack M2/M3/XS2 - 965W
Opale paramodels is really glad to present you his ultimate motor kit for Backpack M2 or XS2. This motor kit was made exclusively for skilled pilots. So if you're looking for propelling power, let us tell you that you are in the right place ! Opale paramodels is very proud to introduce you his brand new breathtaking motor kit.
The motor and controller has been made especially for Opale Paramodels and has been approved through several quality tests and reach all of our quality standards. The software optimization for the controller was developed in the Opale Paramodels headquarters according to real phases of flight. This motor kit with Power 1.1 or 1.8 Hybrid will be the perfect combination for astonishing aerial acrobatics. It will fit to all crazy pilots eager for big thrills !! You will be able to make much more insane acrobatics .With such propelling power, this motor kit will litteraly blow your mind!
This Motor kit had been completely assembled. So you will only have to mount it on your backpack and connect it to a battery with a EC3 connector.
Motor OP3548 features:
| KV (RPM/V): | 790 |
| Power (W) with 3-5S Lipo at 43A (10s): | 965 |
| Mass (gr): (lb): |
153 0.35 |
| Dimensions (mm): (in): |
35x48 1.4x1.9 |
| Motor: | Opale OP3548 |
| Shaft diameter (mm): (in): |
5 0.2 |
| Poles: | 14 |
| Connectors: | PK Gold 3.5mm |
| Maximal propeller size (in): | 10x4.7 |
| Input voltage: | 3-5S |
ESC Jeti - Spin Pro 66
| Weight [g] | 56 |
| Dimensions [mm] | 52 x 25 x 12 |
| Sustained current [A] | 70 |
| Telemetry | Yes |
| Operational temperature [°C] | -10 ... 85 |
| Supply Voltage [V] | 5 ... 26 |
| Batteries NiXX | 6 ... 18 |
| Batteries LiXX | 2 ... 6 |
| Max. Current BEC [A] | 5 |
| Voltage BEC [V] | 5,5 |
| Max. number of servos | 8 |
| Resistance in conducting state [mΩ] | 2 x 1,00 |
| Number of power transistors | 48 |
| Cable crossection (input/output) [mm²] | 4,0 / 2,5 |
| Input capacitance [µF] | 2 x 470 |
Opale Carbon prop 10x4.7 features:
Due to its special shapes, light weight, it reduces considerably the torque effect. It's the must have on your Backpack M2 or XS2!
| Diameter (in): | 10 |
| Pitch (in): | 4.7 |
| Material: | Carbon |
| Masse (gr): (lb): |
8 0.02 |
| Shaft diameter (mm): (in): |
6 0.24 |
| Adapter shaft diameter (mm): (in): |
5 0.2 |
| Shape: | Special |
Included:
- 1 x OP3548 Motor
- 1 x Jeti - Spin Pro 66
- 1 x 10x4.7in Opale Paramodels Carbon propeller
Required and not included:
- Backpack XS2 or M2
- 3S to 5S Lipo
