> >>PowerBox iGyro Sat

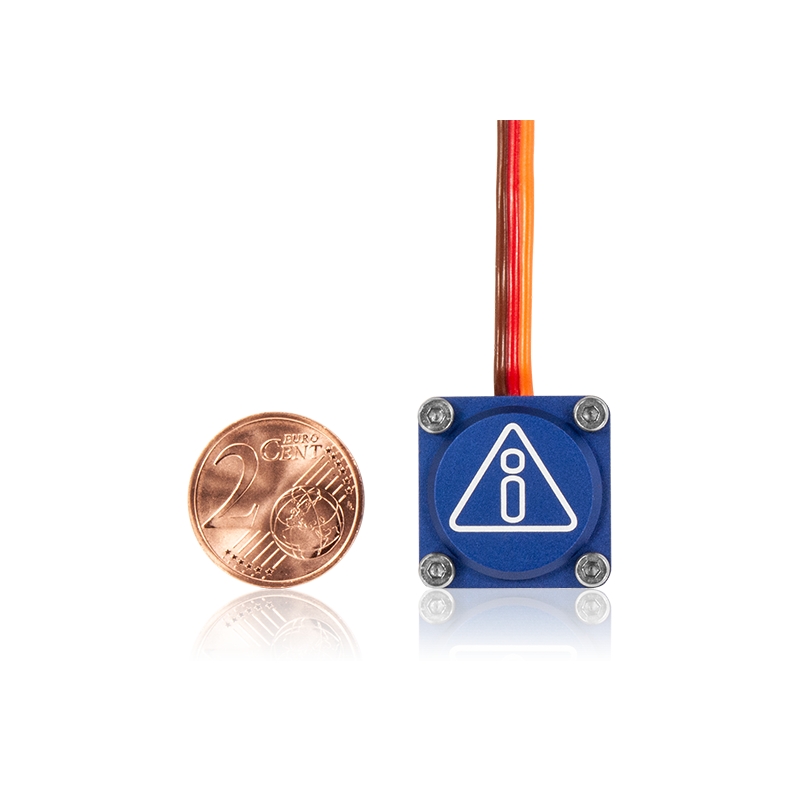

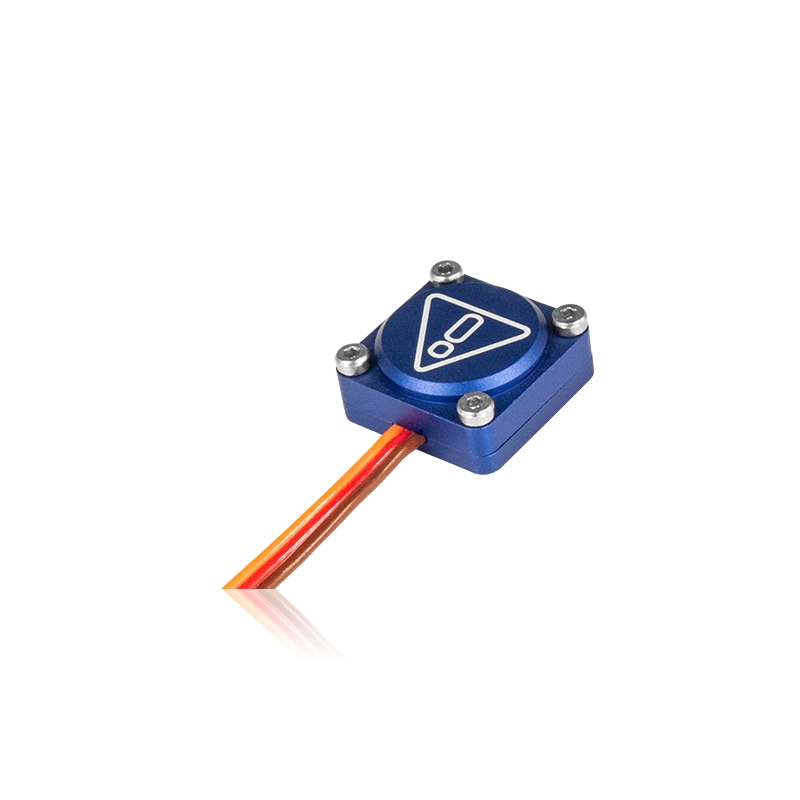

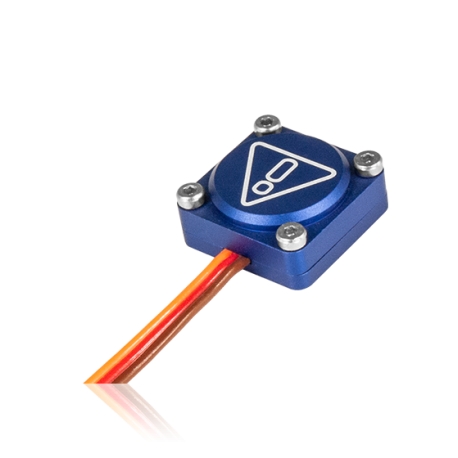

PowerBox iGyro Sat View larger

PowerBox iGyro Sat

3610

New product

The iGyro SAT has been developed specifically to complement the new range of PowerBox PBR receivers by providing the modeller with a very simple means of adding an iGyro function to any PowerBox PBR receiver - Plug ‘n´Play. The iGyro SAT works as a sensor module, passing the data to the receiver via the FastTrack bus, which has been specially developed for the purpose.

More details

By buying this product you can collect up to 10 loyalty points.


In stock

109,00 €

Price excluding taxes : 90,83 €
VAT : 18,17 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement
The iGyro SAT has been developed specifically to complement the new range of PowerBox PBR receivers by providing the modeller with a very simple means of adding an iGyro function to any PowerBox PBR receiver - Plug ‘n´Play. The iGyro SAT works as a sensor module, passing the data to the receiver via the FastTrack bus, which has been specially developed for the purpose.

Features

  • Extremely accurate triple-axis MEMS sensor
  • Special regulatory algorithm designed for fixed-wing model aircraft
  • Outputs the new FastTrack serial bus
  • Plug and play with all PowerBox receivers
  • Installed orientation can be selected
  • 16-bit processor for fast, high-resolution signal processing
  • Robust aluminium case

Technical Data

Operating voltage 4.0V - 9.0V
Current drain Power-on state 20mA
Signal input FastTrack Bus
Servo signal resolution 0,5µs
Gyro regulation Heading- and Normalmode
Gyro sensor type MEMS
Number of sensor axes 3
Dimensions 20 x 20 x 8 mm
Weight 7g
Temperature range -30°C to +85°C

Reviews

No customer reviews for the moment.

Write a review

PowerBox iGyro Sat

PowerBox iGyro Sat

The iGyro SAT has been developed specifically to complement the new range of PowerBox PBR receivers by providing the modeller with a very simple means of adding an iGyro function to any PowerBox PBR receiver - Plug ‘n´Play. The iGyro SAT works as a sensor module, passing the data to the receiver via the FastTrack bus, which has been specially developed for the purpose.
