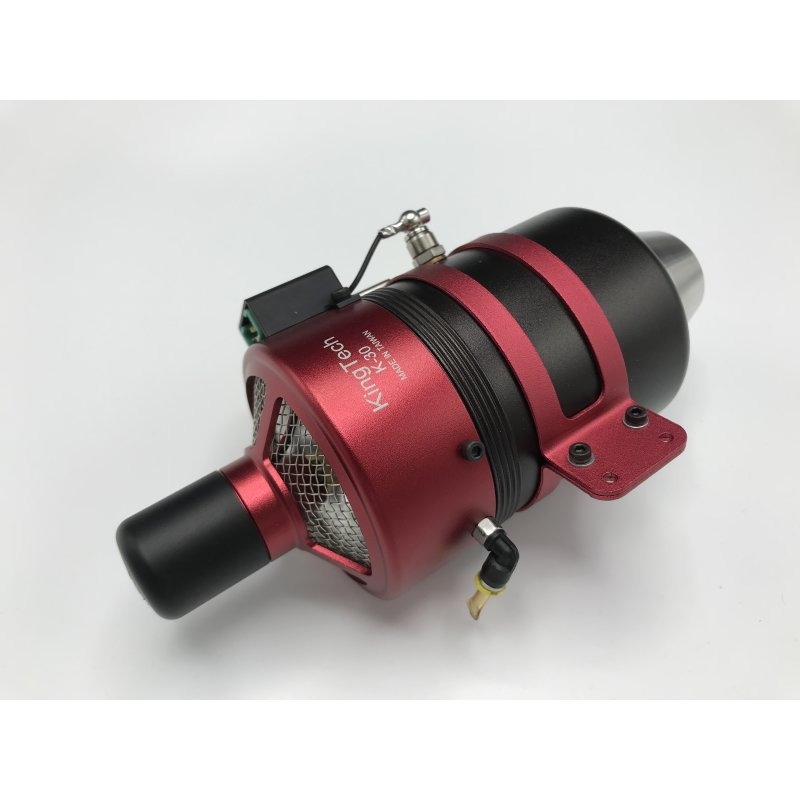

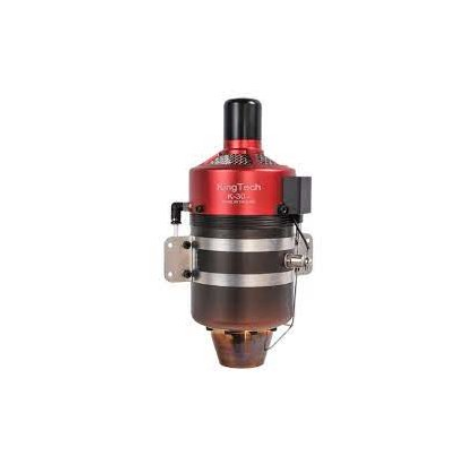

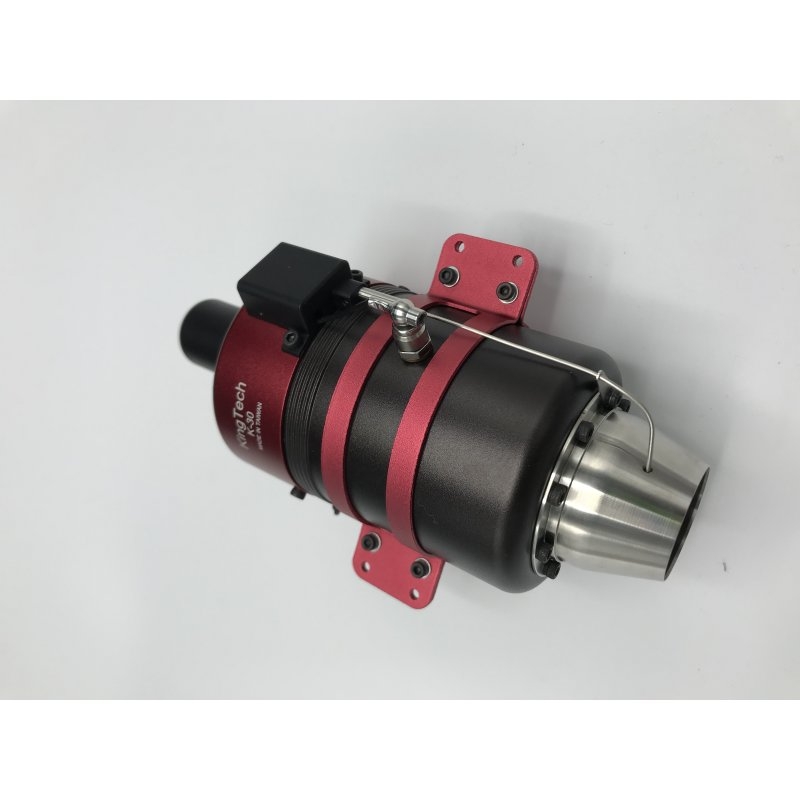

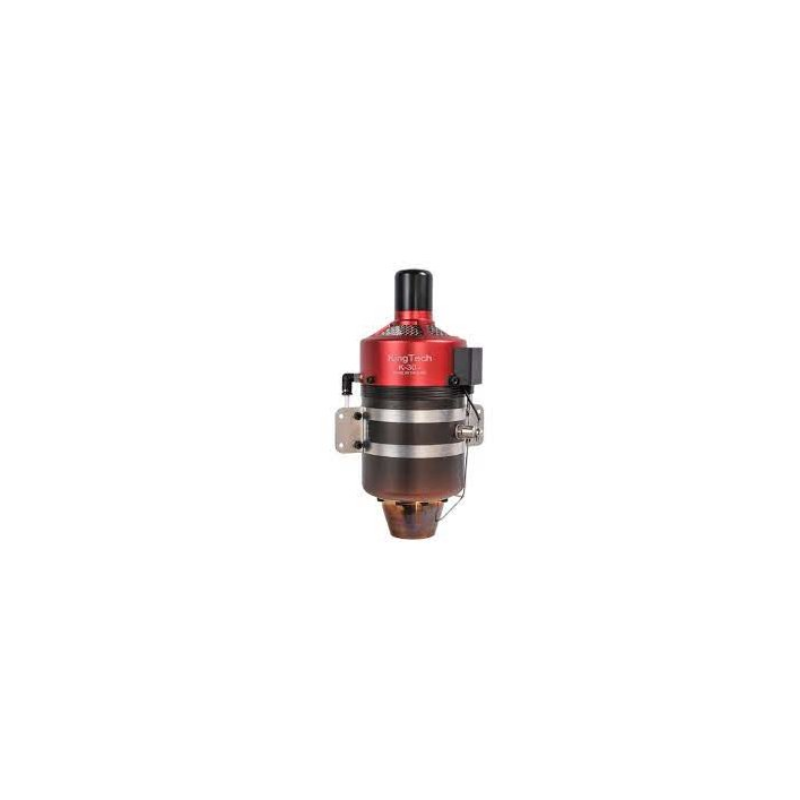

Turbine KingTech K30G4+
KT-K30G4+
New product
New G4 fourth generation KingTech K30G4+
- Write a review
By buying this product you can collect up to 202 loyalty points.
New G4 fourth generation
The G4 turbines now have a KT-Bus system, only one cable to the turbine via XT30 connector, integrated fod screen, brushless starter, new features, app * for Android and IOS, ECU mainboard, all parameters and timers integrated in the RPM sensor in the turbine.
Data relay module (DRM) integrated in the turbine, DRM transmits data, signals and power distribution, bluetooth, USB connection for upgrades and later planned features.
• KingTech G4 utilizes SBus data transmission.
• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
• Pump: digital sbus brushless pump
• A micro USB connector is present for a future connectivity of wireless mobile apps.
• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated. • After a run cycle and receiver switched off, GSU will remain on only until cool down completes.
K-30G4 SPECIFICATIONS
Diameter: 62.9mm
Length: 160mm
Weight: 450g (Include internal valve, mount, Digital control system, FOD Screen)
Max. RPM: 235000
Thrust: 3kg+ @ 15° C
EGT: 720 °C max
Fuel consumption: 120 g / min
Fuel: Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr
G4 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
