Turbine Kingtech K180G4+
KT-K180G4+
New product

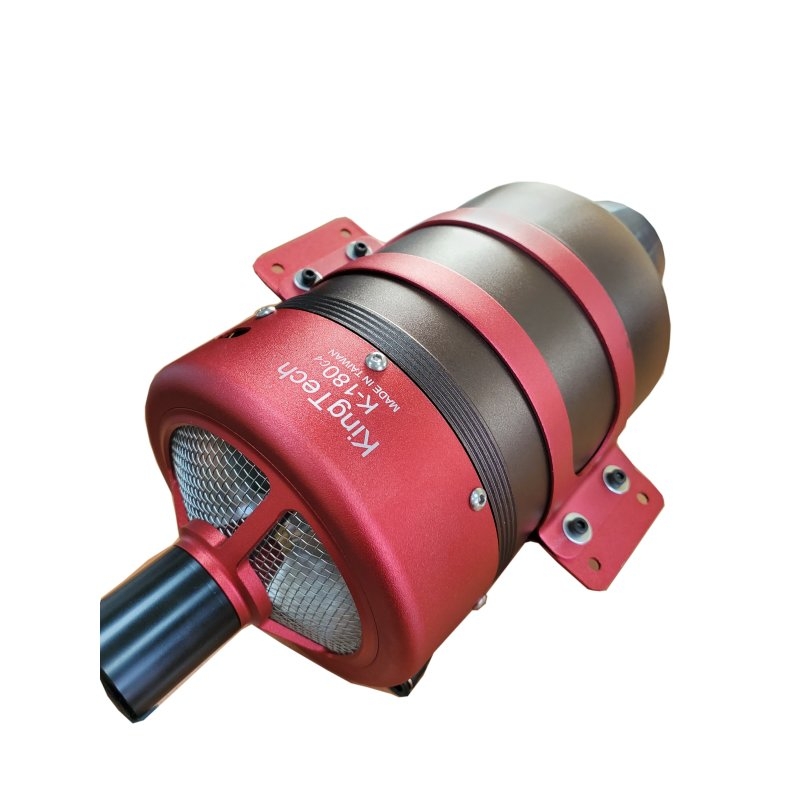

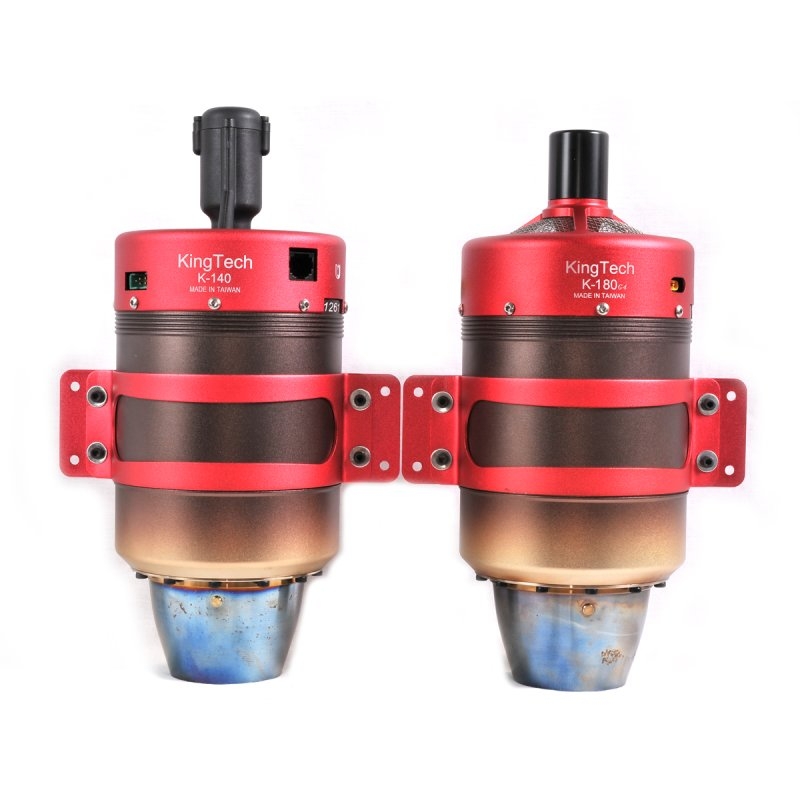

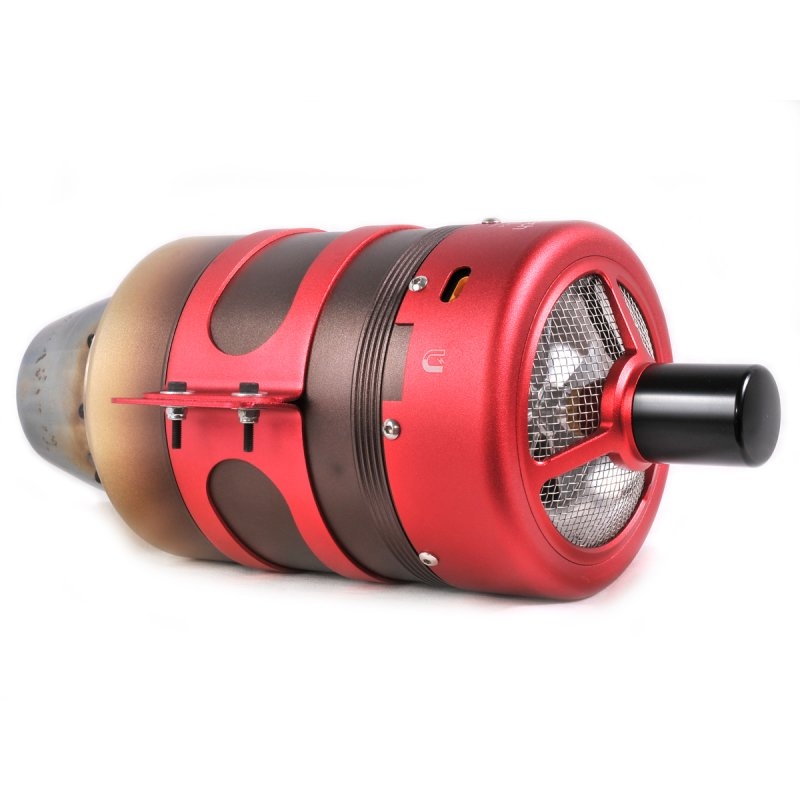

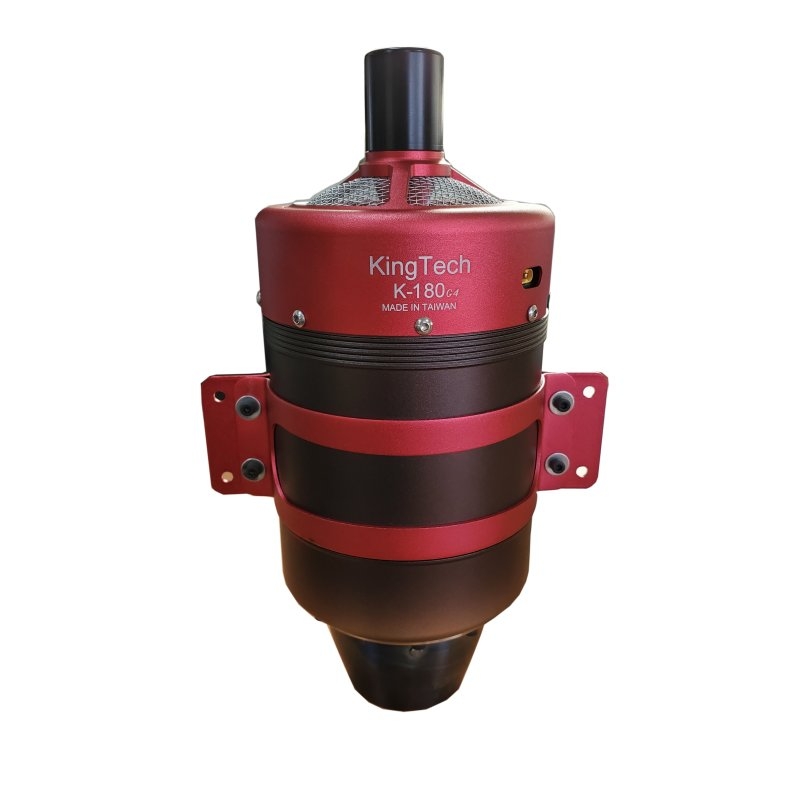

Turbine KingTech K180G4+
- Write a review
By buying this product you can collect up to 319 loyalty points.
• KingTech G4 utilizes SBus data transmission.
• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
• Pump: digital sbus brushless pump
• A micro USB connector is present for a future connectivity of wireless mobile apps.
• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

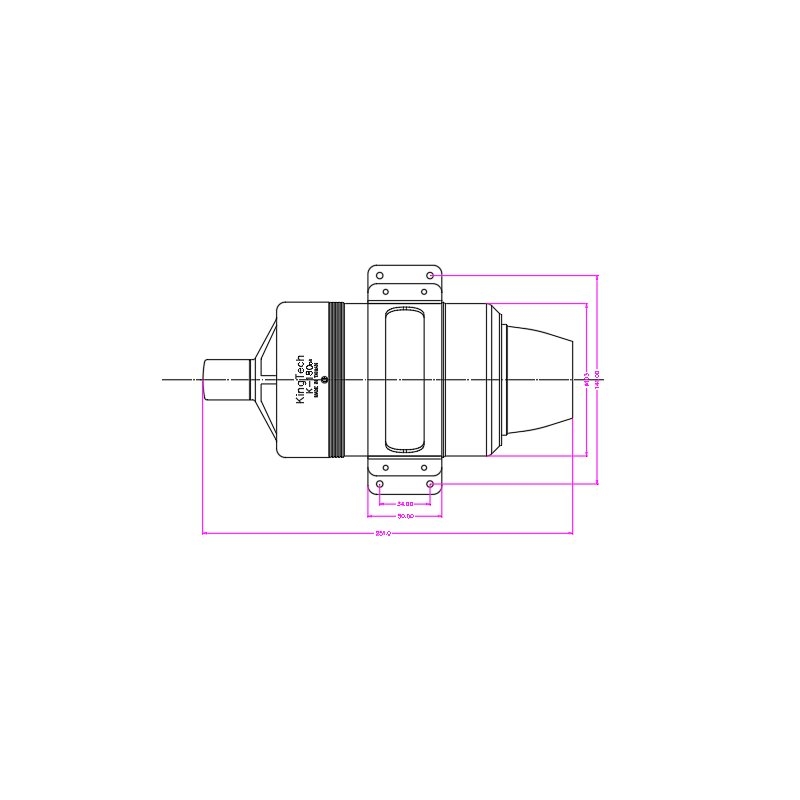

K-180G4 SPECIFICATIONS
Diameter: 103mm
Length: 251 mm
Weight: 1540 g
Max. RPM: 130000
Thrust: 18 KG @ 15°C
EGT: 750°C max
Pump type: Digital sbus brushless pump (KP600BL)
Fuel consumption: 560g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pressure ratio:3.3:1
Mass flow (kg/s):0.39
Exhaust gas speed (km/h):1661
SFC @ max Rpm (kg/Nh):0.186
G4 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
