Turbine Kingtech K210G4+
KT-K210G4+
New product

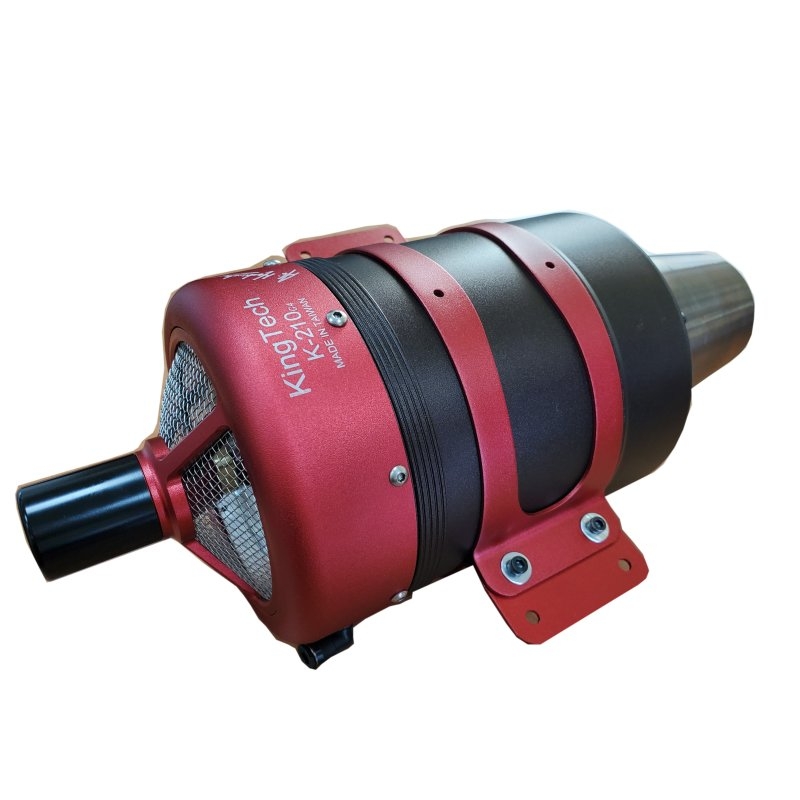

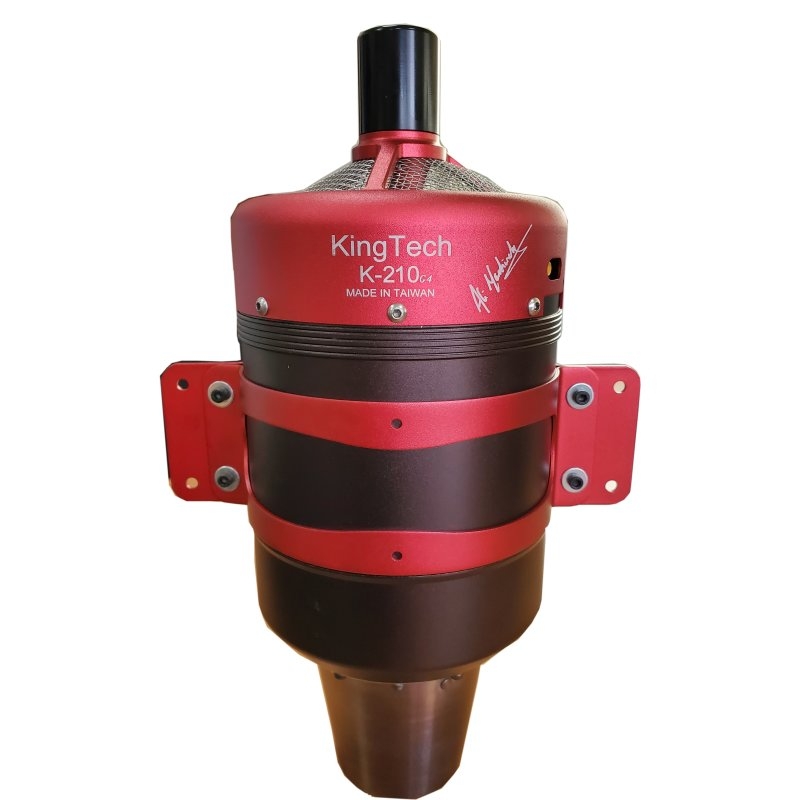

Turbine KingTech K210G4+
- Write a review
By buying this product you can collect up to 293 loyalty points.
KingTech G4 utilizes SBus data transmission.
• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
• Pump: digital sbus brushless pump
• A micro USB connector is present for a future connectivity of wireless mobile apps.
• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.
K-210G4 SPECIFICATIONS
Diameter: 112.6 mm
Length: 280 mm
Weight: 1740g
Max. RPM: 121000
Thrust: 21 kg @ max RPM
EGT: 750°C max
Pump type: Digital sbus brushless pump (KP800BL)
Fuel consumption: 620 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pressure ratio:3.5:1
Mass flow (kg/s): 0.43
Exhaust gas speed (km/h): 1758
SFC @ max Rpm (kg/Nh): 0.173
G4 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
